Specifications
Brand Name :
Fudeng
Model Number :
FDZH040110
Certification :
ISO,BV,SGS,CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 sets per month
Delivery Time :
30 working days
Packaging Details :
Bulk cargo or container
Volume :
Optional
Abs :
With
Tire :
Triangle, Double Coin
Tank Thickness :
Bottom 8mm, Side 6mm
Brake system :
WEABCO
Axle :
Triangle, BPW, L1 Brand Optional
Lifting system :
HYVA brand
Condition :
New
Price :
negotiation
Description

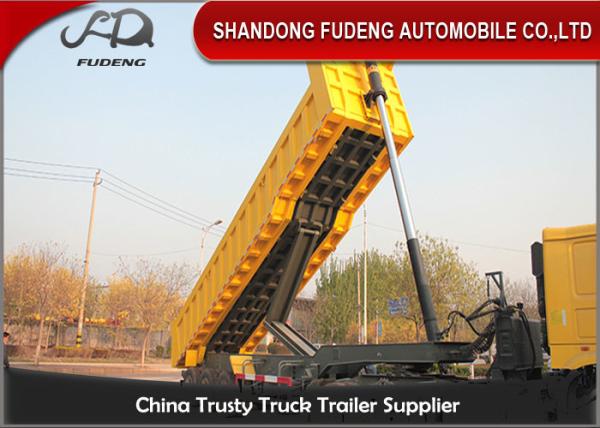

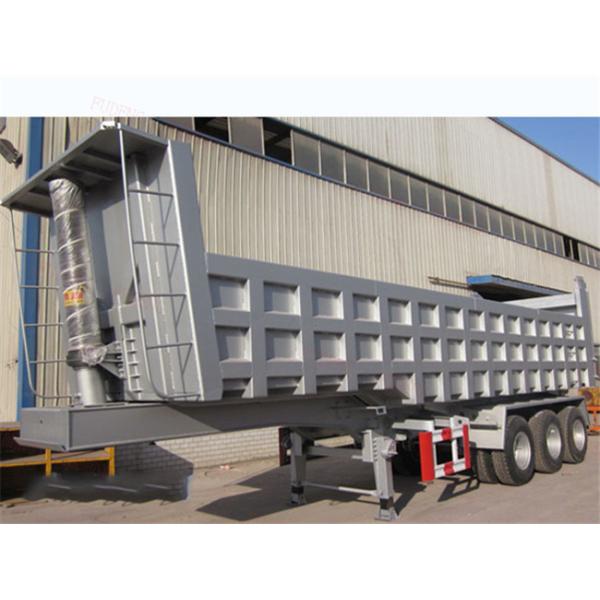

Triple Axles 60 - 80 Ton Construction Dump Trailer Hydraulics , Sand dumping trailer

Fudeng produces dump trailer is ideal equipment to transport of sand Coal Stone Mental and other Construction material.We can supply 2 axles, 3 axles, 4 axles , which loading capacity from 40 ton ton 80 ton for customer specific requirements.

Fudeng tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety, all key parts of dump trailer are from famous brands both at home and aboard. Because of Reliability, durability and the low maintenance of Fudeng tipper trailer have been appreciated around the world.

Widely used in such multiple road condition, reasonable structure, nice performance.

Specification

Specifications
Dimension Optional
Payload 60-800T
Tare weight About 11.0T
Hydraulic system Full set of 196 hydraulic system,HYVA brand
Main beam The height of the beam is 500mm,Upper plate:18mm,Down plate:18mm,Middle plate:Double 8mm
Thickness of the bottom plate 5 mm (Optional)
Thickness of side plate 5 mm (Optional)
Tailgate One-piece tailgate with upper articulation, safety lock system
Axle 3 axles 13T,16T brake pads
Landing Gear 28T
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Braking System 3 axle Synchronous valve, 6 Big Air Chamber
Tyre 11.00R20,12 unites
Spare wheel carrier Two
Tool box Two
Voltage 24V
Lights& Reflectors Rear light, rear reflectors, turn indicative light, side reflector, fog lamp, number plate light
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

COMPANY INTRODUCTION
√ Manufacturer, more than 20yrs professional experience
√ Small order available
√ CCC & ISO 90001 agreement
√ Custom build according to customer requirements or special needs.
√ Provide oversea after - sales service

Details

Optional Dimension Dump Gooseneck Trailer With 3 Axle Synchronous Valve

Optional Dimension Dump Gooseneck Trailer With 3 Axle Synchronous Valve

Pckaging & Shipping

Nude and waxed by bulk cargo ship ,40HQ or Ro-Ro ship.
Three units could be stacked up together to save unit sea freight cost.
