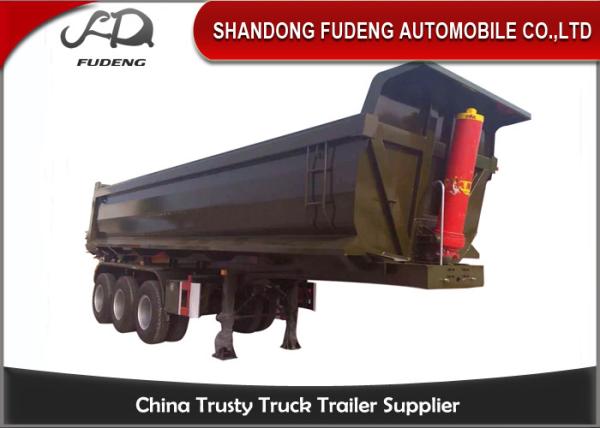

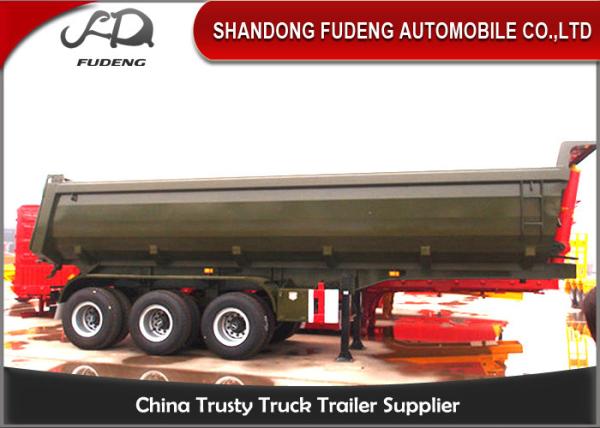

U Shape Dump Semi Trailer 40T-100T Payload For Sand / Stone Transportation
U Shape Dump Semi Trailer 40T-100T Payload For Sand / Stone Transportation
U Shape Dump Semi Trailer 40T-100T Payload For Sand / Stone Transportation
U Shape Dump Semi Trailer 40T-100T Payload For Sand / Stone Transportation
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 fence semi trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport sand, stone and bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
40-80 ton available
Axle :
2 or 3 or 4
Feature :
U shape semi trailer
Price :
negotiation
Description

30 cbm U shape dump truck semi trailer sand and stone transport

Our service

1. Technical support.

2. Financial Suggestion.

3. 15 month quality guarantee.

4. Transportation suggestion.

5. 24 -7 after-sales service group.

Tipper Trailer Specifications
Tank Body
Shape Rectangle or U shape
Dimension 7.5-12m×2.5×4m (Outside)
Payload 40T-100T
Tare weight About 7.5T-15T
Lifting system Full set of Hyva hydraulic system/Chinese brand
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T) or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

Our hydro-cylinder is solid, flexible and heavy-loaded, which can meets your need of more cargo.

U Shape Dump Semi Trailer 40T-100T Payload For Sand / Stone Transportation

Contact us to get lasted price!
