50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System
50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System
50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System
50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System
Specifications
Brand Name :
FUDENG Brand Dump Semi Trailers
Model Number :
Dump Semi Trailers
Certification :
ISO ,BV,SGS
Place of Origin :
Shandong,China(Mainland)
MOQ :
One unit Dump semi trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after deposit
Packaging Details :
Nude packing.Shipping by the Bulk cargo or Ro-Ro
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension
Shape :
U or Square shape
Landing Gear :
JOST 28Tons
Payload :
60Tons
Size :
9000mm X2500mm X3700 mm
Tire :
11.00R20, 12.00R20,12R22.5, 385/65R22.5
Functions :
Transport sand,earth work, stone,etc
Price :
negotiation
Description

U shape 50 ton 3 axles rear dump trailer/tipper semi trailer/tipping trailer for truck

1.U shape for efficiency:U shape box,the rate of discharge can reach to 100%,saving time and

labor

2.Capable of rough road condition:international standard heavy duty chassis and running system

applied to cope with rough road condition;

3.Light design:high tensile steel material and advanced design to achieve lower weight with high

carrying capacity,reduce operation cost;

4.Surface treatment:(shot blasting+painting)Zinc-rich-primer and polyurethane

topcoat as customers’ choices.

5.Options:other valuable features are of your participation,just tell us your idea and we will work

out the right trailer for you.

Trailer Name Carbon steel Hydraulic Dump semi trailer
Dimensions 9900mm*2500mm*3600mm
Loading 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3
Tire 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand
Material Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm
Axles 13T/16/20T BPW or FUWA or SAF brand
King Pin 2 inch or 3.5 inch JOST Brand
Brake System WABCO Valve with big chamber
LandingGears JOST brand two-speed, Manual operating heavy duty 28ton
Suspension Bogie suspension, spring suspension, Air suspension
Hydraulic system Dong Fang Hong brand or HYVA brand
ElectricalSystem 24v, 7core socket, lights according to European standards (suitable for all market)
Floor 8mm plate, side wall 6mm
Other parts 1 tool boxs, 1 spare tire carrier
Functions Transport sand,earth work, stone,etc
vehicle name tipper semi-trailer
overall size (LxWxH) 9000×2500×3500

box size

(LxWxH)

 8500×2350×1500
Tare Weight 8.5T-10T
Payload 30T-60T(25 m³_30m³)
Axle specs 13ton FUWA*3
Suspension mechanical suspensions(90mm*13mm*10pcs)
King Pin 50#/90# traction pin
Landing Gear 28 ton capacity
Tire specs. 12.00R22.5 , 12 pieces
Frame (specs. and materials) Main frame is height 500mm,upper plate16mm,down plate18mm,middle plate 10mm(double frame available) Q345B
Brake System Dual line braking system,none WABCO,none ABS(can be choice)
Chamber Two double chambe*6pcs
Electrical System 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Accessory One tooling box with a set of standard trailer tool

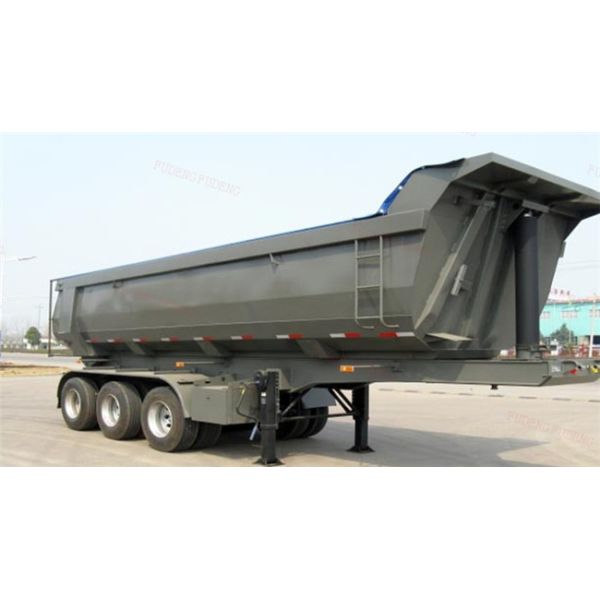

U sahpe Dump semi trailers Model.

50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System

Dump Semi Trailer is ideal equipment to transport construction materials. It equipped with famous hydraulic lifting system hyva cylinder. It is also equiped with famous axle BPW or Fuwa brand. Its tires are also famous brand, Double Coin or Triangle brand as your optional choice.

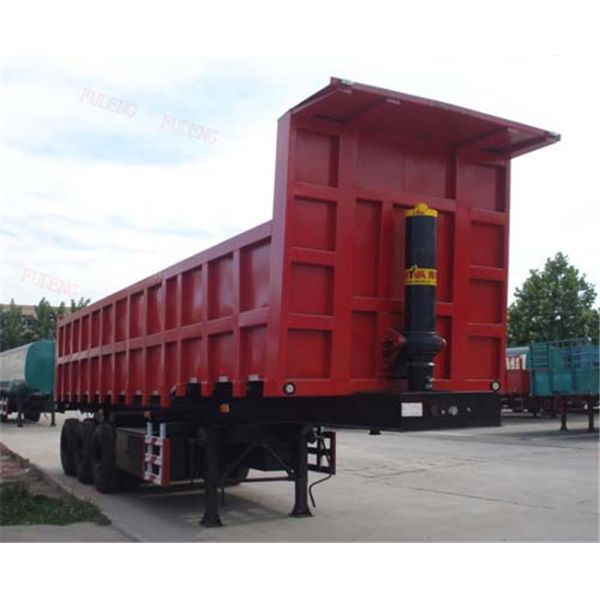

Square Shape Dump semi trailer.

50 Ton Dump Truck Trailer 2 Axle , Dump Tractor Trailer With Dual Line Brake System
