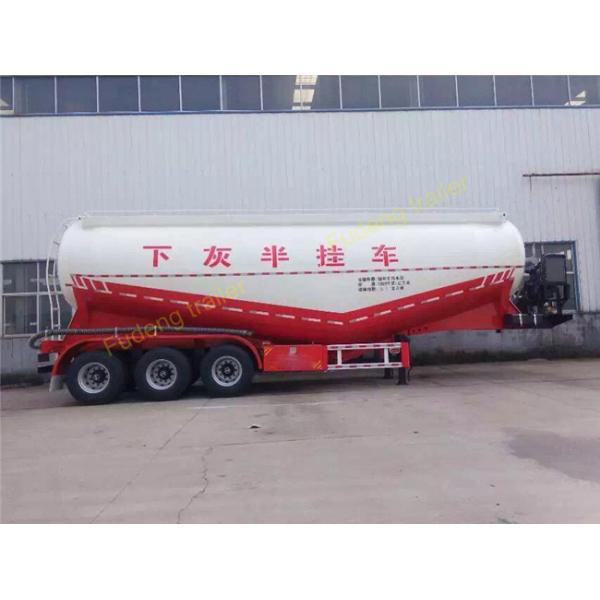

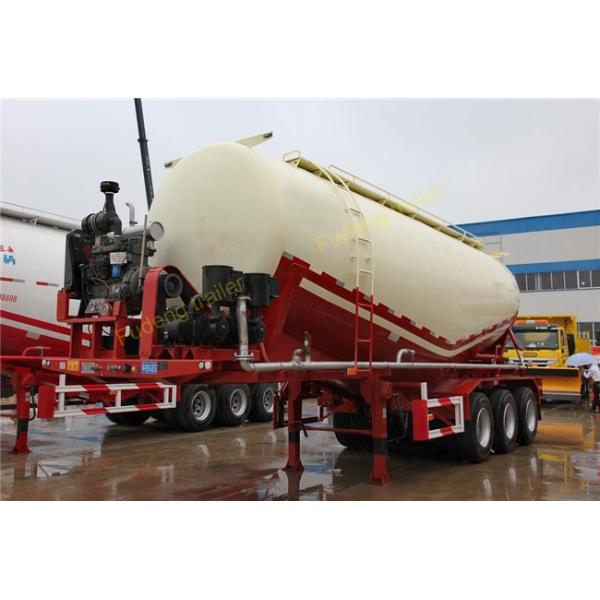

50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
Specifications
Brand Name :
Fudeng
Model Number :
SDFD201708
Certification :
CE, ISO9001, CCC
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon steel
Color :
Fudeng logo or as customer's request
Volume :
45 cbm - 65 cbm
Suspension :
Mechanical or air suspension
Axle :
FUWA, BPW or Chinese brand
Usage :
Transport cement, powder, silos
Landing gear :
Double speed 28 ton
Diesel Engine :
Weichai
Description

50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm

Fudeng Trailer dry-bulk trailers have all the qualities desired in an efficient solution, It’s Fudeng Trailer craftsmanship, combined with the exceptional durability, thoughtful engineering and high payloads customers have come to expect from every premium Fudeng Trailer product—peace of mind that frees you up to focus on the most important project of all—building your business.

V type Bulk Cement Trailer Body design with single output, High strength, special alloyed, imported aluminum material.


For the special body structure jointless, monolithic sheets which join at the inner part of body bottom center chassis and unique body structure produced via longest weld seam technology, having least number of joints (T), safe, smooth straight surfaced.

OPTIONAL SPECIFICATIONS

– European axle shaft group and all kind of equipments

– EBS brake system

– Double spare tire conveyor

– Fire extinguisher closet and fire extinguisher tube

– Tire mark according to request

– RAL color codes according to request

Shape V shape customized
Dimension 13000*3990*2500mm
Capacity 60 cbm
Tanker Body 5mm Q345B
End Plate 6mm Q345B
Manhole Cover 2 or 3 pieces
Air Compressor Wuhu Fuda 12 cbm double-cylinder, Working pressure 0.2 MPa, Testing pressure 0.3 MPa
Diesel Engine Weichai 4102 or 4105
Chassis
Main Beams T700 high- insensitive steel Upper plate is 14mm and lower is 16mm,middle is 8mm. height is 500 mm
Axle 3 axles, 13T American type, 16T brake block, Fuwa brand
Landing Gear Standard 28T Jost brand
King Pin 5.0(2 inch)/9.0(3.5 inch) bolt Jost brand
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 air chamber, 3 axles synchronization Webco brand
Rim 9.00-22.5/8.00-22.5/8.5-22.5
Tire 11.00R22.5/12.00R22.5 Triangle brand
ABS KEMI Optional
Accessories 2 standard tool box Optional

50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm

50 Ton 3 Axles Bulk Cement Tanker Trailer Dimension 13000mm * 3990mm * 2500mm
