Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
Specifications
Brand Name :
FUDENG Brand
Model Number :
Bulk cement tanker trailer
Certification :
CCC, CE, SGS, BV,ADR,DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Bulk cement tanker tailer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after Deposit
Packaging Details :
Shipping by the Bulk cargo transportation
Product Name :
Bulk cement tanker trailer
Loading capacity :
30-75CBM
Axles :
Fuwa/BPW/Chinese brand
King Pin :
2"(50mm)or3.5"(90mm) JOST
Size :
10500*2500*4000 Or Customized
Material :
Reinforced Steel
Suspension :
Mechanical / Air / Bogie Suspension
Tank Thickness :
6mm Tank Thickness, Optional
Price :
negotiation
Description

Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers

Bulk cement tanker trailers Main Features: Using fully automatic computer CAD design techology, tanks using automatic longitudinal/ring to the welding seam is firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloading speed, low residual rate, safety performance is high, easy to operate.

Shape is round or V tanks,material can choose carbon steel, stainless steel, aluminum alloy. Inside the bag or fluidized bed or MIZIXING fluidized bed.

Good perforance of simple structure, convenient maintenance, vulcanization.Can choose air compressor direct drive transmission shaft(optional belt drive and motor drive)

Technical Index: Under the condition of working pressure of 0.2 Mpa, discharging speed is 1.2 to 1.5 T/mm residual rate of 2‰ or less,under certain conditions, the discharging height 25 m or more.

Specification:

Assembly Name Composition Specifications
Chassis Main beam

Q345Steel;The height of the beam is 500mm;

Middle plate is 8mm;Down plate is 16mm.
King Pin 2”or 3.5”traction pin
Dimensions(L*W*H) 11980*2500*3800mm
Tank body Tank body &end plate Q235/5mm steel &6mm steel sheet r
Manhole cover 500mm manhole cover.2 sets with 2 breather valve
Discharge valve &pipe 4” disc valve&4” seamless steel tube
Bottom valve 1-2 sets of aluminum API pneumatic bottom valve
Suspension Suspension type Common mechanical(Option Air Suspension
Steel Spring 10/10/10
Running system Axle 3 axle Fuwa Brand
Wheel Rim 9.0-22.5 steel wheel rim
Tire Spe:12R22.5; Number of Tire:8 pieces
Brake system Brake Chamber 6 big chamber
Brake Valve KTL Brand/WABCO
Brake system Dual Line Brake system
Other Tool box 1 set standard tool box
Light Tail lamp with turn signal ,brake light & reflector, side lamp etc.
Painting 1 coat of anticorrosive prime, twice coats of final paint.
Spare Tire Carriers 2 pieces
Leading gear 28T Manual operating, Heavy duty landing gear
Weight Tare Weight 9000Kg
Loading Capacity 42000 liters
Axle weight load 13T

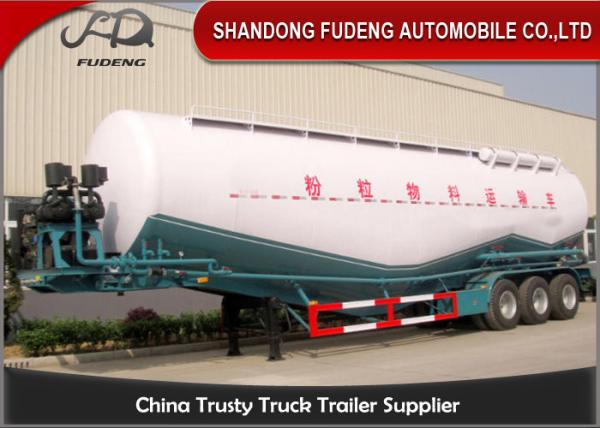

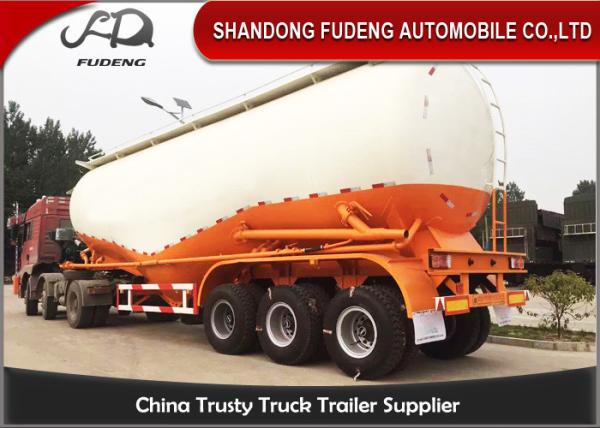

50CBM Bulk cement tanker trailers.

Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers

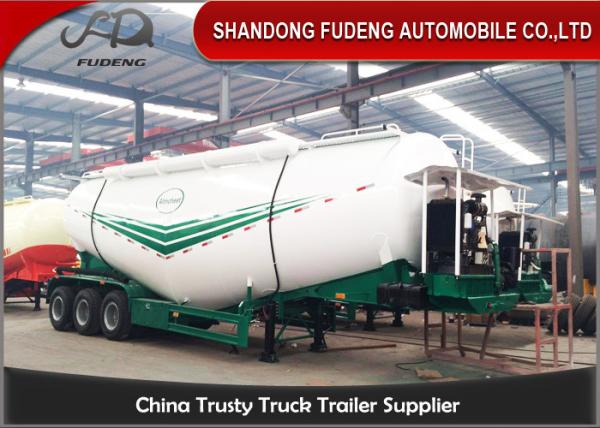

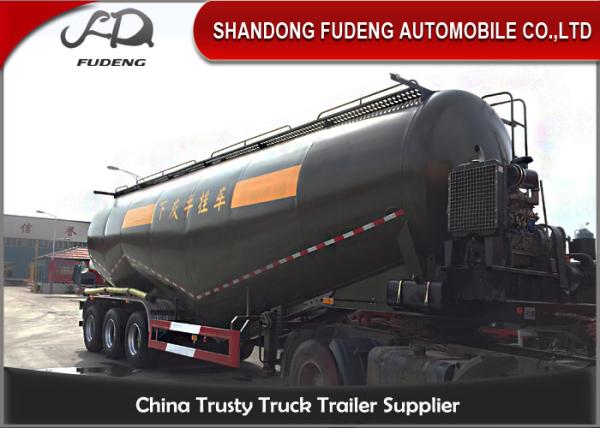

40Tons Bulk cement tanker trailers.

Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
