Specifications
Brand Name :
Fudeng
Model Number :
FDZH04051
Certification :
CE, SGS, BV
Place of Origin :
Shandong,China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
35 work days after 30% deposit
Packaging Details :
Bulk cargo or Roro
Lifting Crane :
XCMG Brand Crane
Capacity :
40 Tons or Optional
Operation :
Remote Control And Manual Optional
Crane :
European System
Product :
40ft Side Loader Container Trailer
After-sales Service :
Available
Color :
As your requirment
Chassis :
High strength steel material
Price :
negotiation
Description

FUDENG 40 Ton 40ft Side Loader Trailer Lifting And Transport Containers

SIDELIFTER CONTAINER LOADING APPLICATIONS

The Sidelifter is the most versatile and cost effective piece of equipment for loading containers on the ground. There is no other way of delivering and retrieving containers that matches the accuracy and precision of Sidelifter container loading technology.

Container transfers can now take place anywhere that is safe and convenient. This can be at rail yards, transportation depots or any suitable rail siding.

FUDENG Sidelifters can transfer containers to other trailers, trucks and trains, or onto the ground, where they can also double-stack containers.

Container loading and unloading can take place on the ground, reducing the risk of injury. Waiting time for other lifting type machinery to become available is eliminated, as is the need for expensive ground preparation. This not only saves money for the transport operator; it also saves time for importers, manufacturers and distributors.

From sole transport operators through to fleet managers and logistics companies, there is nothing as cost effective or efficient as a Sidelifter.

Specification

Main specification
Max. lifting capacity 37000kg
Max. working range 4000mm
Max. stabilizer outreach 3200mm
Max. pressure of hydraulic 28MPa
Curb mass 14500kg
Mass of sidelifter 7250kg
Maximum gross mass 40000kg
Outline dimension of semi-trailer(L×W×H) 14100×2500×4000mm
Outline dimension of sidelifter (L×W×H) 1020×2500×2490mm
Wheel base 8000+1350+1350mm
Track(front axle/rear axle) 1820/1820/1820mm
Front overhang / Rear overhang -/2370mm
Approach angle/Departure angle -/13
Hydraulic system Hydraulic pump: Italian CASAPPA
Hydraulic control valve: Netherlandish AMCA
Electric control system Telecontroller: German NBB
Voltage: 12V
Two chain Two chain: lgus (imported)
Diesel engine Japanese Kubota diesel engine
Trailer Chassis L*W*H:14100*2500*4000mm
Axles: 3*13 tons axles
Tire: 12R22.5 tubeless tire, 12 pcs
Suspension: Heavy duty type mechanical suspension
Kingpin:2 inch or 3.5 inch bolted type
Landing gear: 28T


Details

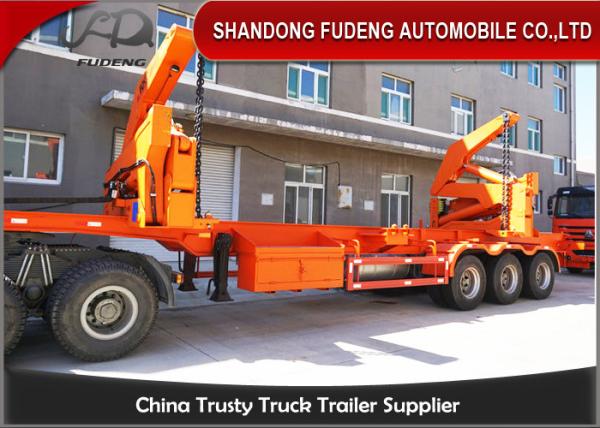

40 Ton 40ft  Hydraulic Side Loader Trailer For Containers Transportation
40 Ton 40ft  Hydraulic Side Loader Trailer For Containers Transportation

Minimal equipment and operators required

The trailer driver can unload the container in minutes on his own, moving 20ft and 40ft containers using the same piece of equipment. There is no need for additional equipment or personnel, so saving on additional costs.

Safely handles hazardous, fragile and valuable cargo

Differentiated cargo can be loaded and unloaded without disruption to the client’s business. The side loader action allows containers to be safely placed exactly where the client requires it, for ease of access to load and unload as required.
