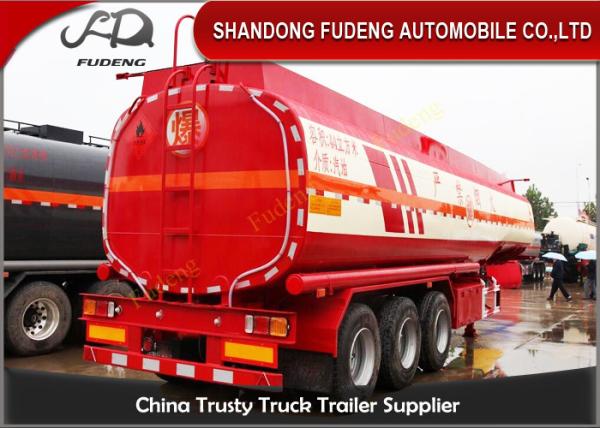

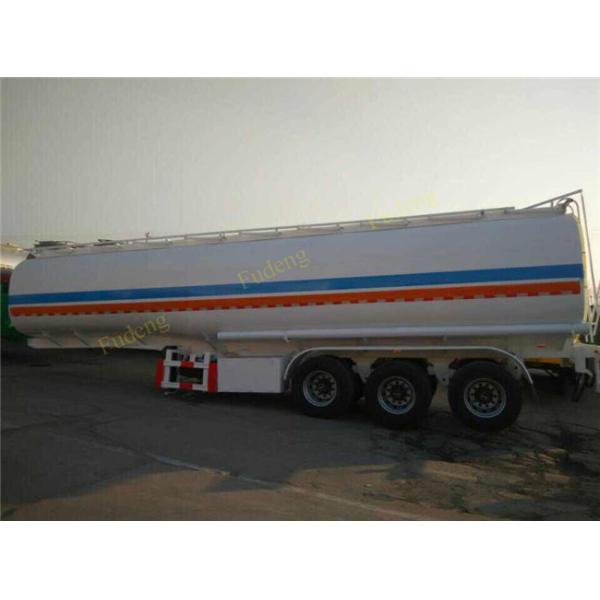

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers
3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers
3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers
3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers
Specifications
Brand Name :
Fudeng
Model Number :
FDZH33131
Certification :
CE/BV/CCC/SGS/ADR
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
1500 sets per month
Delivery Time :
20 working days
Packaging Details :
Naked, waxing on RORO or Bulk Ship
Condition :
New
Compartment Number :
Optional
Trailer :
Diesel Tank Trailer
Material :
Carbon steel
Capacity :
45000 L
Landing Gear :
JOST brand
Axle :
3 axle
Color :
Optional
Kinpin :
50# or 90#
Suspension :
Air or Mechanical
Price :
negotiation
Description

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers

All Diesel Tank Trailer are engineered and custom built to meet the needs of each customer, based on application, regional weight laws, severity of service, operational efficiency and personal

preferences.

Ranging from 4,000 gallons to 15,000 gallons in both straight elliptical and double taper designs, Tanker Trailer can be built with 1 to 6 compartments. Designed with the latest technology in air operated

vapor vents and emergency valves, Overfill systems, Intraxx air ride suspensions and HALDEX Roll

Stability, Fudeng Diesel Tank Trailer provide unmatched value and performance for decades. Let us help

you design a tank trailer that is just right for your operation.

Specification

Specification for 45,000L oil tanker semi trailer

Dimension Parameters

 Total length(mm) 12500
Total Width(mm) 2500
Total height(mm) 4000
Volume( m³) 45CBM
Weight About 6000kg-10000kg
Tank Capacity 45000L
Tanker body 5mm Q345B
End Plate 6mm
Wave Plate 4mm
Compartment SIX (7500LX6)
Discharging Valve SIX API Valve (Bottom Loading)
Manhole cover Carbon steel manhole cover 500mm
Discharging pipe Diameter is 4 inch
Ball Valve SIX
Shape Round

Main Configuration

 Axle 3 axle , FUWA brand 13Ton Loading Capacity
King Pin JOST 2.00 / 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Landing gear JOST (D200T) 28Ton
Accessories One standard tool box,2sets spare tire rack
Voltage 24V
Pneumatic braking WABCO RE 6 relay valve, spring brake chamber
Main beams

Welding design or special design beam. connected by bolts and nuts,

Q345 carbon steel material
Rim 9.00-22.5 china brand
Tire 12R22.5 Double Star Brand
Painting Complete chassis and blasting to clean rust, 1 cost of anticorrosive prime .2coats of final paint


Pls Notice: this is for your consideration only
Actual datas depend on your actual requst!

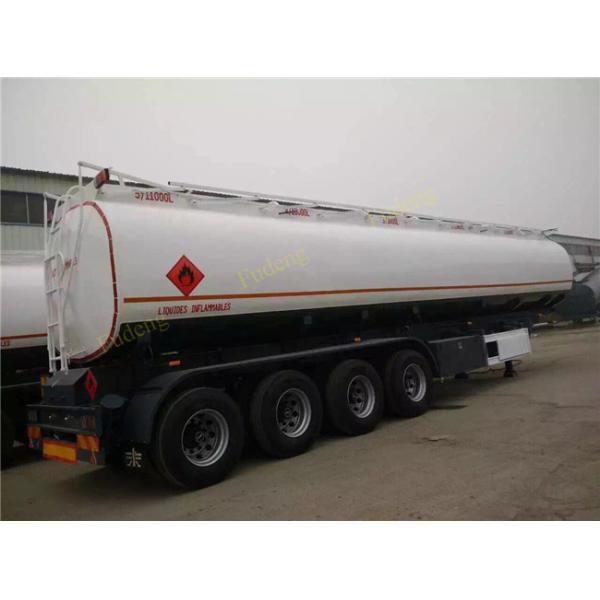

4 axle 60000 L Fuel tanker semi trailer with 5 compartments

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers

3 axle 45000 L Fuel tanker semi trailer

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi Tanker Trailers

We can produce many types of semi trailer and full trailer even trailer parts .

if no trailer is your like , you can tell me your actual requirements , customized is available .

Sincerely,


You are welcome to visit our factory!
Wish long time cooperation can be built by our joint effort!
