Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel
Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel
Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel
Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel
Specifications
Brand Name :
Fudeng
Model Number :
FDZH33126
Certification :
ISO CCC CQC
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2400 sets per month
Delivery Time :
30 working days for fuel tanker semi trailers
Packaging Details :
RORO or Bulk Ship
Axle :
3 Axles , Optional
Export :
Export To Africa Market
Thickness Of Tanker Body :
3mm, 4mm, 5mm Thickness
Compartment Number :
Optional
Application :
Diesel Fuel, Crude Oil, Petrol, Palm Oil Transportation
Color :
Custom ' s Requirement
LOGO :
According to your request
Kingpin :
2.0'' or 3.5''
Price :
negotiation
Description

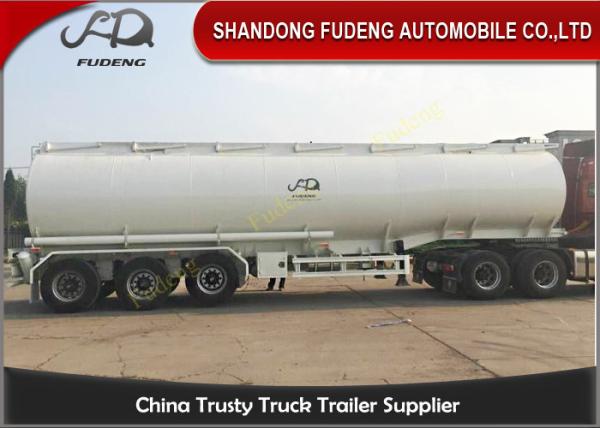

Heavy oil tanker truck price , 3 axle fuel tanker trailer with lifting front axle

The fuel tanker trailer is commonly used to be transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt etc...

As a specialist in the manufacture of military tanker trailer, we have pioneered the application of the plate
bender and welder in the manufacture of the fuel tanks. Our industry leading design capability allows us to supply your desire tanker trailer in the shortest possible time. We are an ISO9001 certified company.

Our specially constructed tank transporters have taken up great market share of the Africa and South-East Asia markets. We can sell complete knock Down kits or semi knockdown kits to our valued
oversea clients.

Specification

Overall length11900*2500*3850mm
TypeSteel self-support fuel tanker with 6 compartment,with the necessary baffles
Capacity42000L
MaterialCarbon steel Q345,tank:4.5mm thickness,
Dished end5.5mm thickness,baffle:4.5mm thickness
Manhole6 manhole covers with filling opening and auto-pressure relief valve to control pressure built by temperature variation.
Discharge valveEvery compartment will be fixed one unit aluminum alloy foot valve and one unit API discharge valve with API Dust Cap.
Access ladderOne(1) access ladder at front of tank.
WalkwayFor easy access to manholes covers(material is carbon steel)

Axles 		BPW ECO 12 ton capacity,three unit,Hub odometer for kilometers on one unit
Suspensions Air bag suspensions, front axle liftable
Tire and rimSuper single Double Coin tire 385/65R22.5 on steel rim
Break system Double line air breaks with spring loaded parking brake,air parking brake,ABS installed.(Mudguard for one steel unit)
Electrical lightElectrical equipment 24 Volt,in accordance with the road traffic regulations electric connection type SAE 7 poles mounted on the front bearer.

Loading: 		Bottom and top loading with overfill sensors(British Standard)to prevent overfilling during the bottom loading operation
Accessories:

Side protection bumper
8 liters fire extinguisher
50L water tank
Small plastic tools box
2’Kinpin



Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel

1 . There are plate in each compartment , to decrease the shake of fuel / oil during the transportation .

2 . Welding the wire fabricfor walking plateform on the tank , to guarantee your safety .

Oil Tanker Trailer With Lifting Front Axle , Tanker Truck Trailer  Q345 Carbon Steel
We can produce many types of semi trailer and full trailer even trailer parts .
if no trailer is your like , you can tell me your actual requirements , customized is available .

Sincerely,
You are welcome to visit our factory!
Wish long time cooperation can be built by our joint effort!
