40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer
40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer
40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer
40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer
Specifications
Brand Name :
Fudeng
Model Number :
FDZH330201
Certification :
CE/BV/CCC
Place of Origin :
China
MOQ :
1 set tanker semi trailer
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 sets per month
Delivery Time :
20 work days after received your deposit
Packaging Details :
Naked, waxing on RORO , Bulk Ship or 40FR and so on
Price :
Negotiation
Loading Capacity :
40cbm
Compartment :
Optional
Thickness Of Tanker Body :
6mm Thickness
Type :
Semi-Trailer
Product Name :
Fuel Tanker Semi Trailer
Application :
Diesel Fuel, Crude Oil ,Water
Axle :
3 axle
Condition :
New stainless steel tanker trailers
Description

40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer

Fabrication technique for oil tanker semi trailer

semi-trailer is divided into two parts, the chemical tanks and the skeleton or bracket to support tank.

Oil tanker semi-trailer tank is made of Stainless steel. the tank inner has built-in multichannel enhanced wave clapboard, has hole on clapboard bottom in order to reduce the impact force of oil on the inner wall o tank and improve the strength of the tanks.

Combined opening is located at the top of the tank, a self-locking small cover in the large cover, upper cover is breathing valve installed to ensure that the tank atmospheric pressure inside and outside is consistent; With electrostatic grounding line.

Install oil pumping system, through the power takeoff from transmission to generate force.the

oil tanker semi trailer can be self-priming and draining; with two sucker tubing, equipped with quick release coupling, suction distance is six meters. Two fire extinguishers and special tools.

Specification

Fuel Tank Semi Trailer (Capacity could be customized)
Weight
Tare Weight 9000kg
Loading Capacity 40T
Axle Weight Load 13T
Axle number 3
Axle specs. FUWA Brand
Suspension

America type mechanical Suspension
Wheel 12R22.5
Landing gear 28Ton standard capacity
Compartment One
King Pin 2’ and 3.5’ inter-changeable traction pin
Dimensions(LxWxH) 12000×2500×3900mm
Steel Spring 10/10 pieces per axles
Tire: 12 pcs
Spare tire carrier: 1 piece
Frame: (specs. and materials) Automatic submerged arc welded Main beams
tank body thickness: 5mm stainless steel
Brake: TWO double and two single chamber
Electrical:
Voltage 24V
Receptacle 7 ways(7 wire harness)
Light color: (LED light)
Side marker lamp Orange
Rear lamp Red
Turn signal lamp Orange
Miscellaneous:
Painting Can be choose freely
Marking According to the requirement of the buyer
Side Guard According to the requirement of the buyer
Tools box One pieces or According to the buyer

The Above is our standard specifications only, we could customize as your actual demands/dimensions~!

Contact me freely if you have any needs, we can do a lot~!

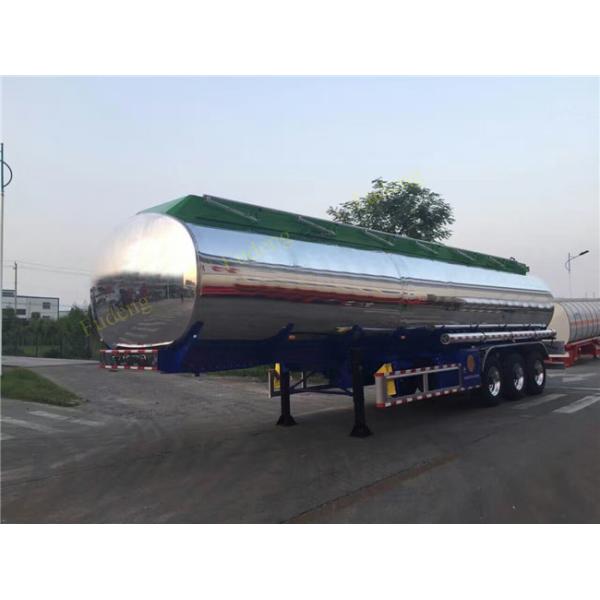

40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer

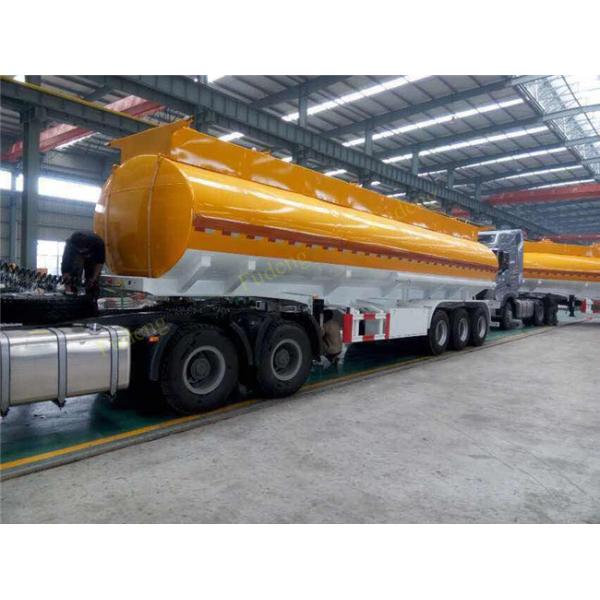

Carbon steel fuel oil tanker trailer for sale

40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer

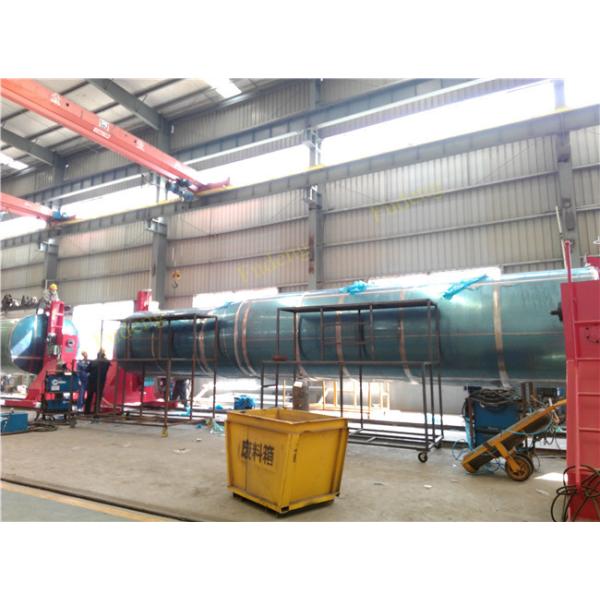

Workshop

40cbm fuel tanker semi trailer , Stainless steel water tank semi trailer

We have below two ways to transport your products,depending the dimension of trailer.We will be your side to help you choosing the best way to save your cost!!

1. By 40' or 45HQ container

- few sets could be loaded into one 40' saving cost.

2. By BULK SHIP or RORO SHIP

- we have long-term cooperated freight forwarder,you are highly guaranteed the safety and best price.

Waiting for your inquiry !
