60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer
60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer
60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer
60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Low bed trailer
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
40-80Tons
Color :
Customized
Size :
12.5mx3mx1.5m Or Customized
King Pin :
50 # Or 90 #
Landing Gear :
JOST 28 Tons
Material :
Q345B carbon steel
Price :
negotiation
Description

60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.

Features of Low Bed Trailer:

Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
Lower height (hydraulic and air suspension be able to adjust height)
Detachable gooseneck is an option
Small turning radius, up to 55° steering angle
Both automatically and manually all wheels steering
Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
Side bracket is an option(for increase overall width), removable and swinging

LOW BED TRAILER Specification:

Product Number PLY8324B
Outside Dimensions 13000x3000x1750mm(As the buyer's request)
Color/Logo Customized
Tare Weight 9.0ton
Rated Load 60ton
Axle Brand FUWA/BPW, other brand optional
No. of the Axle 3pcs
Axle load 13ton
Tyre Specations 12R22.5,11.00R20, other optional
Wheel rim 9.0-22.5 better brand 12pcs
Spare tire carrier 1 set
No. of the Tyre 12+1(Spare tyre)
King Pin 90#/50#
Landing Led JUSt brand two-speed, manual operating, heavy duty landing gear 28ton
Ladder Mechanical ladder
Suspension Mechanic/Air Bag/Independent Type Optional
Leaf Spring 6pcs*90*8pcs
Brake System Dual Lines Braking System With Automatic Air Chambers,Four double and two single chamber
Electric Sustem 24V, 7core socket, lights according to European standards.
Material of the Main Beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Painting Complete chassis sand blsting to clean rust,1 coat of anticorrosive, 2 coats of final paint

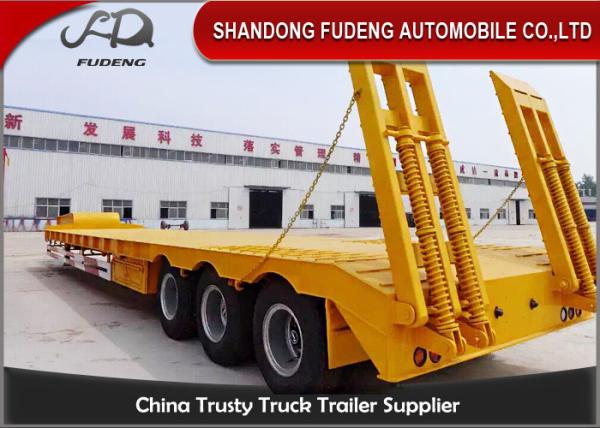

3 Axles low bed semi trailers.

60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

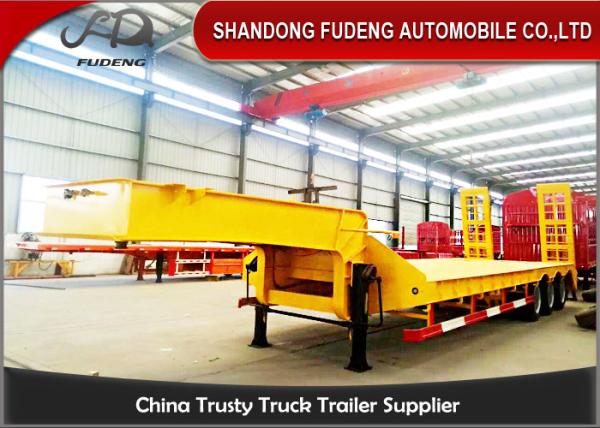

60ton Low bed semi trailers

60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

Factory Overview.

60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

Welcome to visit our factory.
