Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles
Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles
Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles
Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Low bed trailer
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
20 days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
60Tons
Color :
Customized
Size :
12.5mx3mx1.5m Or Customized
King Pin :
50 # Or 90 #
Landing Gear :
JOST 28 Tons
Material :
Q345B carbon steel
Price :
negotiation
Description

Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles

Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.

Features of Low Bed Trailer:

Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
Lower height (hydraulic and air suspension be able to adjust height)
Detachable gooseneck is an option
Small turning radius, up to 55° steering angle
Both automatically and manually all wheels steering
Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
Side bracket is an option(for increase overall width), removable and swinging

LOW BED TRAILER Specification:

3 axle low bed semi trailer
DIMENSIONS
Tare weight 10000kg
Size 13000mm*2500mm*1250mm
Payload 60T
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Side beam 25# channel steel(Q235)
Cross member 16# channel steel(Q235)
Floor 5mm checkered plate
Axle 3 axle FUWA brand 13T
Suspension Mechanical suspension American type local brand
Leaf spring Leaf spring 10pcs*90*13mm
Tire 12R22.5-18pr double star brand 12pcs
Wheel rim 9.0-22.5 better brand 12pcs
Kingpin JOST brand 2” weld king pin
Landing gear JOST brand two-speed, manual operating ,heavy duty landing gear 28T
Ladder Mechanical ladder
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS Optional
Lights LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery 20 workdays after we received 30% of contract value T/T down payment

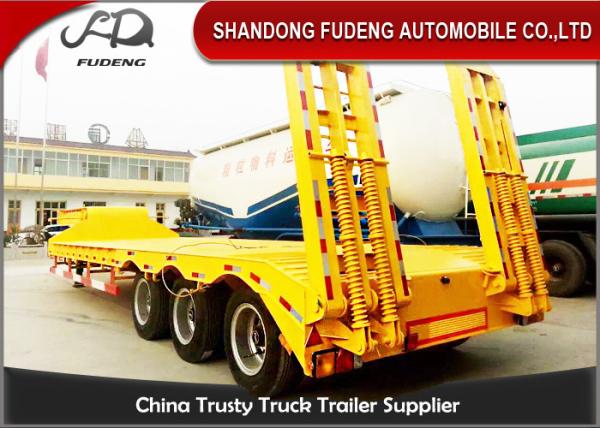

3 Axles low bed semi trailers.

Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles

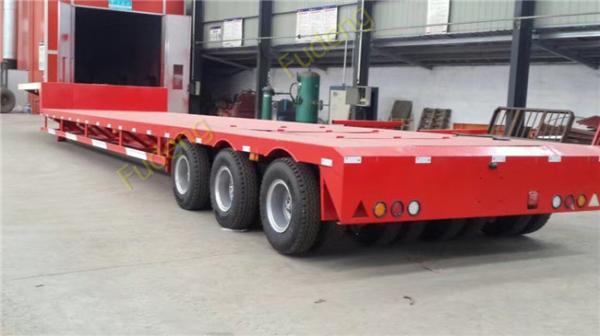

60ton Low bed semi trailers

Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles

Factory Overview.

Tri - axle heavy duty utility low bed trailer 60 tons with ramps and fuwa axles

Welcome to visit our factory.
