Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale
Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale
Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale
Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Description

Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

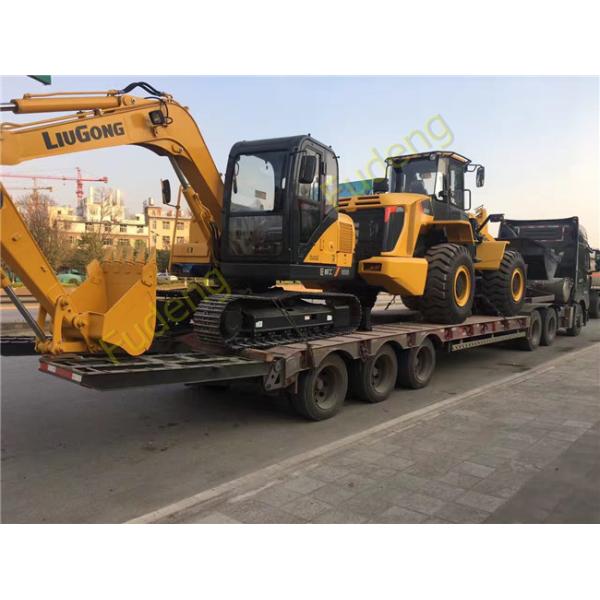

Low Loader range has been designed primarily for heavy construction machines, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.
Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale


Fudeng Low Bed Trailer
WeightTare WeightAbout 8.5-16.5T
Max Loading Capacity50-120 Tons
SpecificationDimensions
(mm)		13000x3000-3500x1650 (Standard Or Customized)
AxleNumberThree(customized)
Payload13T/16T
BrandBPW /FUWA/Chinese Brand
SuspensionMechanical Suspension/ Pneumatic Suspension
Rim6.5-20/7.5-20/8.00-20/8.5-20
LadderSpring/ Mechanical / Hydraulic ladder
TiresTires8.25R22.5/10.00R20/11.00R20/12.00R20
BrandTriangle or Double Coin Brand
King PinSize2.0’’ or 3.5’’ traction pin
BrandJOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand
Landing GearJOST brand D200T or Chinese brand 28Tons28Tons
FrameMain beam

The height of the beam is 450/500mm,upper plate is 14mm down .

Bottom platform3-6mm thick checkered plate
AdditionalABSOptional
LightLED light
Electric SystemElectrical equipment 24 Volt, SAE 7 poles
PaintingSand blasting before painting; 2 coat of anticorrosive primer ; Color as needed

STANDARD FEATURES

· Payload 50,000kg
· Rear Lights on Ramp & Inside Well of Beavertail
· Mudguards Front and Rear
· Parking Brake
· Well in Beavertail
· Sprung Assisted Ramps – 6mm steel plated with Gripper Bars


OPTIONAL FEATURES

· Wide Sprung Ramps – Maximum 720mm
· Hydraulic Ramps – 600mm to 900mm
· 3mm Steel Strips under Timbers for supporting Wheeled Machines
· Cord fastener
· Tool Box – Front / Side
· Colour


Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

Fudeng low-loaders are considered to be the most robust low-loaders in the market. The hydraulic steering offers excellent manoeuvrability with minimal tyre wear and maintenance costs. The finish and conservation are top quality, the chassis being fully hot zinc sprayed.
Welcome to contact us to get more information.
