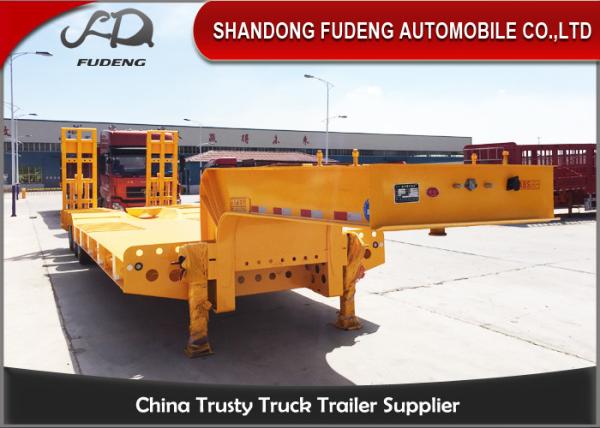

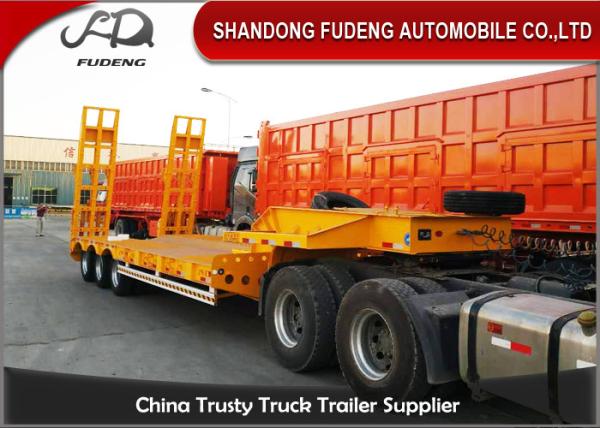

60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head
60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head
60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head
60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Description

60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head



Low bed semi trailer is a multi functional transport vehicle which offers the optimal economic and technical solution to different transport tasks such as construction machines, farming machines, lifting vehicles, industrial parts and much more.

General
Overall Dimension 11960mm*3000mm*3300mm
Flatbed Dimension 8000mm*3000mm
Tare Weight 9630kg Pay Load 60ton
King Pin Setting 450mm Rear Overhang 1870mm
Wheel base 7950mm+1305mm+1305mm Loading Surface Height 1320mm
Track 2160mm
Running Gear
Suspension Tri-axle 8-pcs leaf spring suspension with equalizer beam
Tires 311.00-20, 11.00R20,12.00-20,12.00R20 12units
Axles AQ,FUWA, BPW or STEYR axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235, 16# channel beam
King Pin Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Flatbed Floor Checkered sheet, thickness 4mm

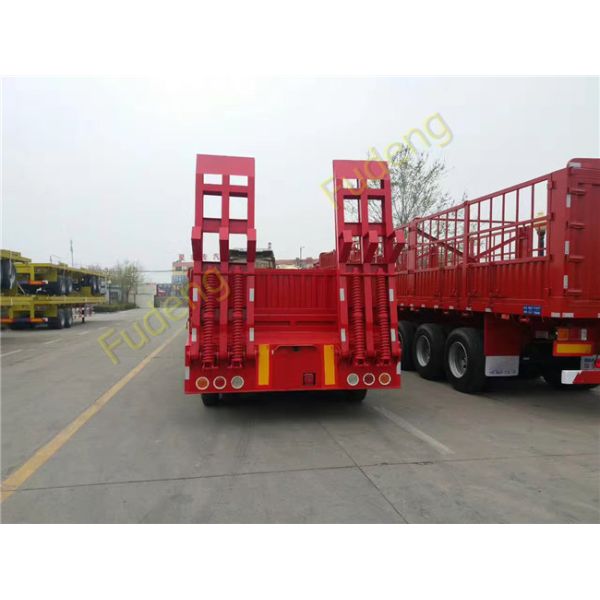

Rear Ladders Spring power-assisted
Electrical & Paint
Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light


































OPTIONAL FEATURES

· Wide Sprung Ramps – Maximum 720mm
· Hydraulic Ramps – 600mm to 900mm
· 3mm Steel Strips under Timbers for supporting Wheeled Machines
· Cord fastener
· Tool Box – Front / Side
· Colour

60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head

60ton 70 ton low bed semi trailer lowboy trailer for tractor truck head

Fudeng low-loaders are considered to be the most robust low-loaders in the market. The hydraulic steering offers excellent manoeuvrability with minimal tyre wear and maintenance costs. The finish and conservation are top quality, the chassis being fully hot zinc sprayed.


Welcome to contact us to get more information.
