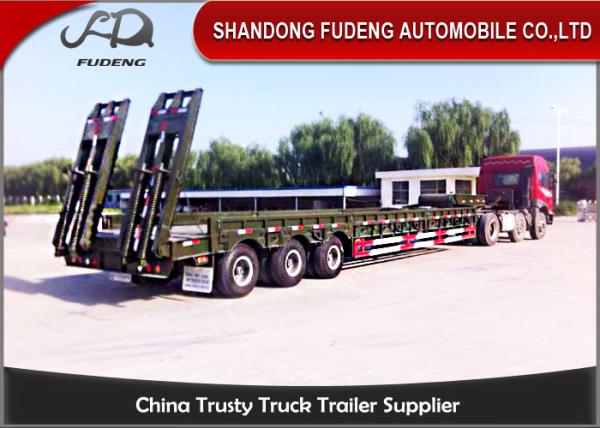

75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender
75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender
75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender
75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Description

75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender

Fudeng low-loaders are considered to be the most robust low-loaders in the market. The hydraulic steering offers excellent manoeuvrability with minimal tyre wear and maintenance costs. The finish and conservation are top quality, the chassis being fully hot zinc sprayed.

Our lowboy trailers chassis and gooseneck are constructed with a combination of high tensile T 700 steel and high tensile Q345B steel. Look at any lowboy trailers that have been on the road for long and you will quickly realize that the cross-members take a beating. For this reason we have elected to use high tensile steel cross-members as opposed to the industry standard of mild Grade. The high tensile cross-members provide you with long lasting rugged durability in a high abuse area. This reliability is something that Fudeng customers have come to expect.


75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender


Low Bed Trailer
Weight Tare Weight About 8.5-16.5T
Max Loading Capacity 50-120 Tons
Specification Dimensions
(mm)		 13000x3000-3500x1650 (Standard Or Customized)
Axle Number Three(customized)
Payload 13T/16T
Brand BPW /FUWA/Chinese Brand
Suspension Mechanical Suspension/ Pneumatic Suspension
Rim 6.5-20/7.5-20/8.00-20/8.5-20
Ladder Spring/ Mechanical / Hydraulic ladder
Tires Tires 8.25R22.5/10.00R20/11.00R20/12.00R20
Brand Triangle or Double Coin Brand
King Pin Size 2.0’’ or 3.5’’ traction pin
Brand JOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand
Landing Gear JOST brand D200T or Chinese brand 28Tons28Tons
Frame Main beam

The height of the beam is 450/500mm,upper plate is 14mm down .
Bottom platform 3-6mm thick checkered plate
Additional ABS Optional
Light LED light
Electric System Electrical equipment 24 Volt, SAE 7 poles
Painting Sand blasting before painting; 2 coat of anticorrosive primer ; Color as needed

75 ton Low boy semi-trailer low bed semi truck trailer with widen device extender


Low Loader range has been designed primarily for heavy construction machines, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.


Welcome to contact us to get more information.
