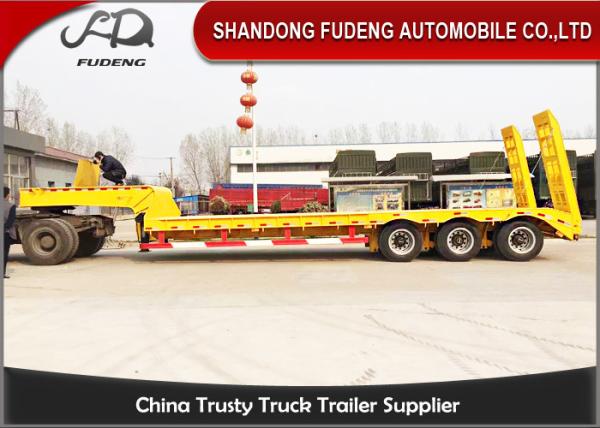

40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle
40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle
40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle
40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Description

40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle



As one of the company's most successful trailer ranges, our low loaders are widely recognized for their strength and durability. Models include the 30 Ton two axles to 100 ton four axles. Our company also manufactures multi axle low boy trailer to carry more than 100 tons which provides flexibility in transportation.


Low Bed Trailer
Weight Tare Weight About 8.5-16.5T
Max Loading Capacity 50-120 Tons
Specification Dimensions
(mm)		 13000x3000-3500x1650 (Standard Or Customized)
Axle Number Three(customized)
Payload 13T/16T
Brand BPW /FUWA/Chinese Brand
Suspension Mechanical Suspension/ Pneumatic Suspension
Rim 6.5-20/7.5-20/8.00-20/8.5-20
Ladder Spring/ Mechanical / Hydraulic ladder
Tires Tires 8.25R22.5/10.00R20/11.00R20/12.00R20
Brand Triangle or Double Coin Brand
King Pin Size 2.0’’ or 3.5’’ traction pin
Brand JOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand
Landing Gear JOST brand D200T or Chinese brand 28Tons28Tons
Frame Main beam

The height of the beam is 450/500mm,upper plate is 14mm down .
Bottom platform 3-6mm thick checkered plate
Additional ABS Optional
Light LED light
Electric System Electrical equipment 24 Volt, SAE 7 poles
Painting Sand blasting before painting; 2 coat of anticorrosive primer ; Color as needed

Fudeng low-loaders are considered to be the most robust low-loaders in the market. The hydraulic steering offers excellent manoeuvrability with minimal tyre wear and maintenance costs. The finish and conservation are top quality, the chassis being fully hot zinc sprayed.

40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle

STANDARD FEATURES

· Payload 50,000kg
· Rear Lights on Ramp & Inside Well of Beavertail
· Mudguards Front and Rear
· Parking Brake
· Well in Beavertail
· Sprung Assisted Ramps – 6mm steel plated with Gripper Bars


OPTIONAL FEATURES

· Wide Sprung Ramps – Maximum 720mm
· Hydraulic Ramps – 600mm to 900mm
· 3mm Steel Strips under Timbers for supporting Wheeled Machines
· Cord fastener
· Tool Box – Front / Side
· Colour


40 ton Gooseneck Lowbed semi Trailers low load truck trailer sale Three axle

Welcome to contact us to get more information.
