Gooseneck semi lowbed trailer for sale 50 ton excavator transportation
Gooseneck semi lowbed trailer for sale 50 ton excavator transportation
Gooseneck semi lowbed trailer for sale 50 ton excavator transportation
Gooseneck semi lowbed trailer for sale 50 ton excavator transportation
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Description

Gooseneck semi lowbed trailer for sale 50 ton excavator transportation

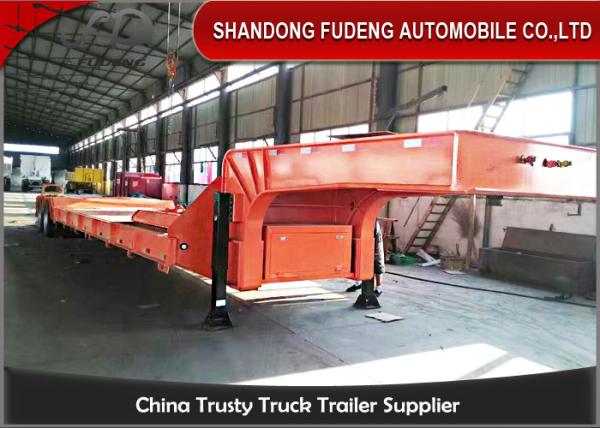

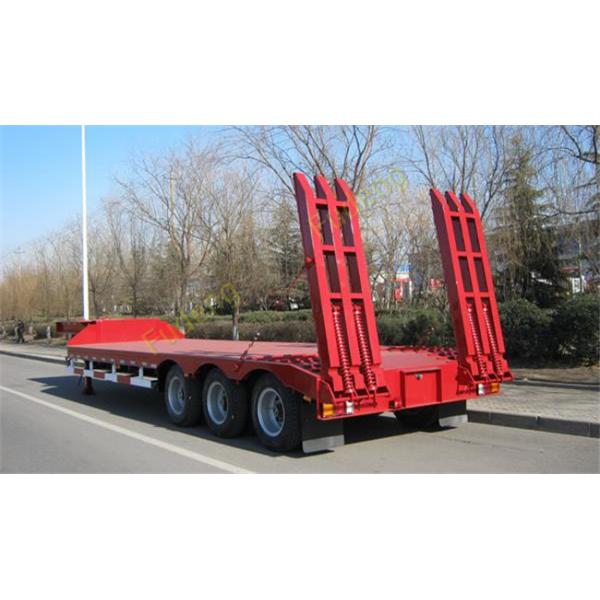

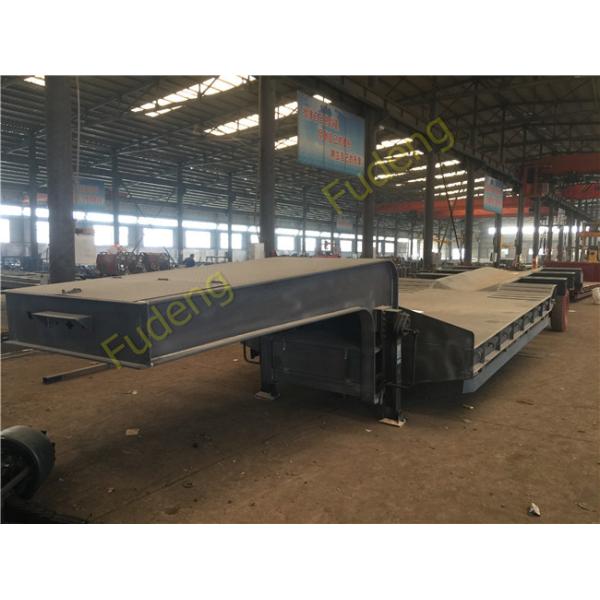

Low bed semi trailer is fulfil the dual purpose of carrying loads which are both heavier and taller than average, ensuring that a range of equipment and machinery can be transported safely and legally. These trailers can be coupled with standard truck cabs, but they feature a load deck that drops lower after the wheels so that the load bed can be much closer to the road surface.

Running Gear
Suspension Tri-axle 8-pcs leaf spring suspension with equalizer beam
Tires 311.00-20, 11.00R20,12.00-20,12.00R20 12units
Axles AQ,FUWA, BPW or STEYR axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235, 16# channel beam
King Pin Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Flatbed Floor Checkered sheet, thickness 4mm
Rear Ladders Spring power-assisted
Electrical & Paint
Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

STANDARD FEATURES

· Payload 50,000kg

· Rear Lights on Ramp & Inside Well of Beavertail

· Mudguards Front and Rear

· Parking Brake

· Well in Beavertail

· Sprung Assisted Ramps – 6mm steel plated with Gripper Bars

Gooseneck semi lowbed trailer for sale 50 ton excavator transportation

Gooseneck semi lowbed trailer for sale 50 ton excavator transportation

AREAS OF USE

The low bed trailer is suitable for the transport of:

  • Construction machines (excavation and road construction, recycling,...)
  • Forestry machines (harvester, skidder, forwarder,...)
  • Farming machines (tractors, combine harvesters,...)
  • Wind power plants (tower segments, generators, rotor or turbine blades)
  • Structural elements (steel and concrete elements)
  • Industrial parts (transformers, crane-loaded goods,...)
  • Lifting vehicles (lifting platforms, fork-lift trucks,...)
  • Crane systems (cranes, crane weights, crane components)
  • Conveying and crushing systems (demolition and recycling industry)
  • Track-guided vehicles (trams, locomotives, wagons)
  • Bulky goods, long materials and heavy loads

Welcome to contact us to get more information.
