Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material
Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material
Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material
Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1701
Certification :
CE, ISO9001, CCC, ADR, SGS, DOT
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon steel, stainless steel, aluminium alloy
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Volume :
30000 liters to 60000 liters customized
Suspension :
Mechanical or air suspension
Axle :
2 or 3 or 4
Usage :
Transport fuel, oil or liquids
Tare weight :
About 11 ton
Description

Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material

Fudeng tanker trailer are production of aluminum or stainless steel and are used to transport fuels, water, milk starting from 25m3 to 50m3 in vacuum, potable and non potable. Tanker trailers are designed for tough road and best storage conditions.

Fudeng offers tanker trailer with heavy duty construction, various suspension options, trailer size options, tank material options, and a variety of shape options. To overcome your expectations, we can build a entirely customizable tanker trailer with the highest standards.

Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material

The configuration is just for reference. Welcome to contact us and tell your needs ! We will provide suitable products for you!

Fuel tank trailer specification
Tank Body
Dimension 12000mm*2490mm*3990mm or customized
Volume(m3) 25m³- 70 m³
Tare weight About 6-12 ton
Tanker Body thickness 5mm /Q345B carbon steel /aluminum
End Plate thickness 6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
Compartments Optional
Chassis
Main Beams

Q345B carbon steel or T700 high-intensive steel,

I Beam height 500mm

Upper plate 14mm, lower is 16mm, middle is 8mm
Axle 4 axles, 13T and 16T brake pad
Landing Gear Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension Mechanical suspension or Air suspension Thicken
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 air chamber, 3 axles synchronization WABCO brand
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Accessories One standard tool box
Voltage 24V

4 axles fuel tank trailer for sale

Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material

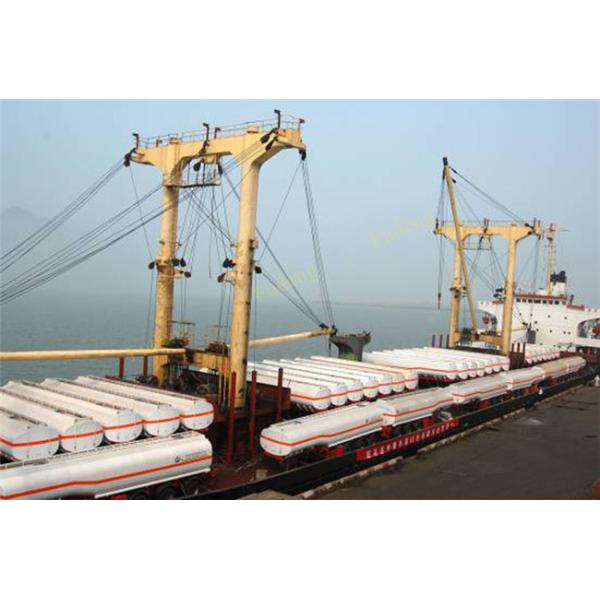

Packing and shipping

Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms By Bulk Cargo/RORO

Four Axles Fuel Tanker Semi Trailer 55000 Liters carbon steel material
