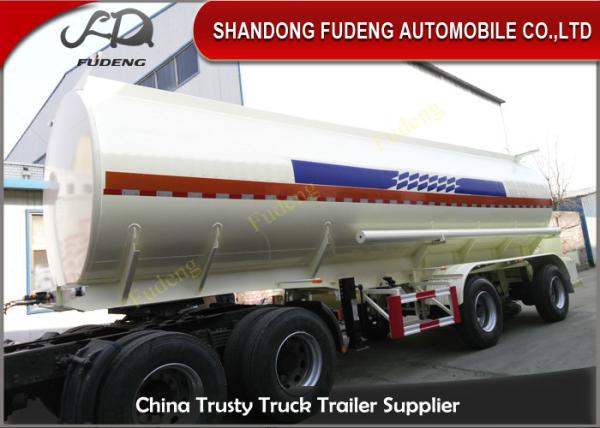

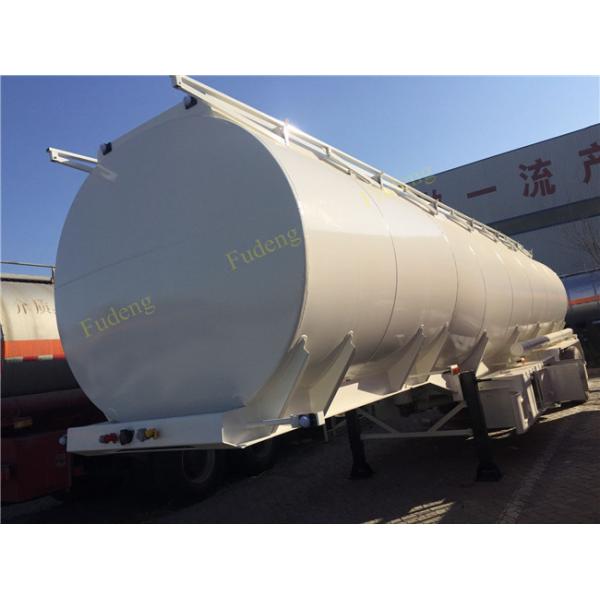

Mechanical spring suspension fuel tank trailer oil semi truck for sale
Mechanical spring suspension fuel tank trailer oil semi truck for sale
Mechanical spring suspension fuel tank trailer oil semi truck for sale
Mechanical spring suspension fuel tank trailer oil semi truck for sale
Specifications
Brand Name :
Fudeng
Model Number :
SDFD17012
Certification :
CE, ISO9001, CCC, ADR, DOT, SGS, etc
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon steel
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Axle :
2 or 3 or 4
Usage :
Transport fuel, oil or liquids
Dimension :
12000mm*2490mm*3990mm
Compartment :
one to ten available
Description

Mechanical spring suspension fuel tank trailer oil semi truck for sale

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.

1. Fudeng’s custom engineered Petro-Chemical trailers are the lightest on the market.

2. Proven two-piece barrel design with a single circumferential seam.

3. Industries widest sheet material minimizes barrel seams.

4. Designed for ease of operation and simple maintenance.

5. A wide variety of piping, vapor recovery, and pumping options available, including, factory-applied Tnemec Lining.

Fuel tank trailer specification
Tank Body
Dimension 12000mm*2490mm*3990mm or customized
Volume(m3) 50000 Liters
Tare weight About 10 ton
Tanker Body thickness 5mm /Q345B carbon steel /aluminum
End Plate thickness 6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
Compartments Optional
Chassis
Main Beams

Q345B carbon steel or T700 high-intensive steel,

I Beam height 500mm

Upper plate 14mm, lower is 16mm, middle is 8mm
Axle 3 axles, 13T and 16T brake pad American type, FUWA or Chinese brand
Landing Gear Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension Mechanical suspension or Air suspension Thicken
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 air chamber, 3 axles synchronization WABCO brand
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Accessories One standard tool box
Voltage 24V

Our fuel tank semi trailer for sale in Africa

Mechanical spring suspension fuel tank trailer oil semi truck for sale

It can be used for transporting Diesel, gasoline, methanol, ethanol and so on.

All the parts that we used in the semi trailers are reliable brands.

Mechanical spring suspension fuel tank trailer oil semi truck for sale
