40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock
40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock
40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock
40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock
Specifications
Brand Name :
Fudeng
Model Number :
FDZH040717
Certification :
CE, CCC
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 sets per month
Delivery Time :
20 - 25 work days after 30% deposit
Packaging Details :
Nude
Chassis :
Q345 or T700 high strength bao steel material
Function :
Transport 20ft 40ft Container
Brake System :
WABCO Valve
Dimension :
20ft, 40ft ,45ft, 53ft
Landing Gear :
JOST Brand Two-speed
Export Markets :
South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Stain Proofing :
Sand blasting with twice anticorrosive prime
Kingpin :
50# or 90#
Price :
negotiation
Description

40ft flat bed semi trailer, 40T flat deck trailer with twist lock for sale

Advantages

Flatbed Semi Trailer can use it to carry one 20ft cargo containers at one time and also deliver products like pipe , steel , lumber and any other item you want.

High strength frame : FUDENG flatbed trailer adopt the resistan of Main Longitudinal Beams("I" high strengh steel) and Transverse Beam (channel beam)

All the parts of Flatbed Semi Trailer are purchased from famous brand product like Jost Lading Gear, WABCO emergency brake, BPW Axle.

40ft Flatbed Container Trailerincludes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.

FUDENG Flatbed Trailer adopt the high strength steel to ensure Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

Surface treatment: Pretreatment to coating , apply sandblast to the whole structure, zinc-rich primer puls acrylic polyurethane top coating.

Specification

PRODUCT PARAMENTERS
Remark This Specification just for your reference, we can produce flatbed container trailer as your demands.
Dimensions 12450mm*2500mm*1530mm
Loading Capacity 40 ton
Tire 11.00R20, 12.00r20, 11R22.5, 12R22.5, 385/65R22.5
Rim 9.00-22.5 or 9.75-22.5
Axles 13T / 16T BPW or FUWA brand
King Pin 2 inch or 3.5 inch JOST Brand
Brake System WABCO Valve and relays/ABS
Landing Gears 28 ton JOST
Susension Tri-axle Bogie suspension , Mechanical spring suspension or Ari suspension
Electrical 12V or 24 V
Light LED light ( speically intended for africa market)
Container lock 4 unit, 8 unit or 12 units
Painting Sndblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Options 20ft, 45ft, 48ft , 2 axles or 3 axles, Bulk head / Front wall

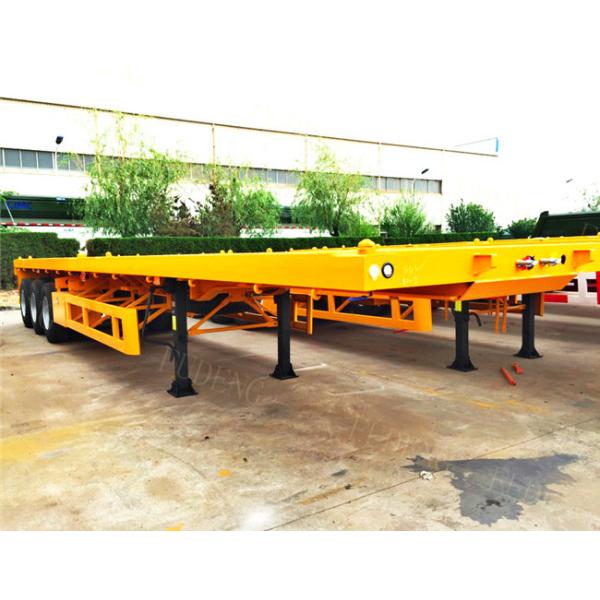

3 axle 40ft flatbed semi trailer

40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock

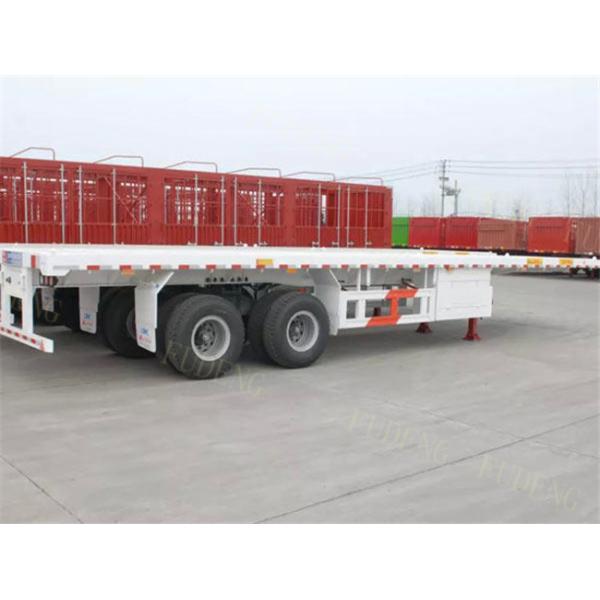

2 axle 40ft flatbed semi trailer
40 Foot Flatbed Trailer, 40 Tons Flatbed Truck Trailer With Twist Lock


Besides, we can provide spare parts for customers with factory price and our spare parts are easy to buy in all world. Because our trucks are sold in most countries.
