Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension
Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension
Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension
Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension
Specifications
Brand Name :
Fudeng
Model Number :
FDZH040702
Certification :
ISO,BV,SGS,CCC,CE
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets per month
Delivery Time :
10 - 20 work days after 30% deposit
Packaging Details :
Bulk cargo ship or Ro - ro
Axle brand :
BPW Brand
Color :
Customized
Trailer usage :
Container transportation
Pattern :
As customer's request
King pin :
2"(50mm)or3.5"(90mm) JOST
Suspension :
Mechanical / Air
Type :
Semi trailer
Container locks :
4 , 8 , 12 unites
Price :
negotiation
Description

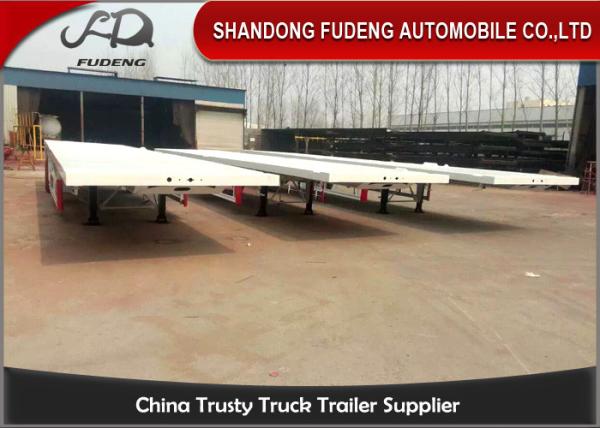

2 Axles 20ft or 40ft Custom made flatbed container trailer , platform semi trailers with BPW axle

1. The whole body of the vehicle is made of quality steel, with advanced technology and strict production process, which ensure it has a reasonable structure, reliable performance, beautiful appearance and simple operation.
2. Accessories are mainly of well-known brands in domestic and overseas, sourced, tested and used in accordance with the requirements of the quality system documents, which will ensure a reliable quality of the vehicles.
3. Semi-trailer series adopt beam-passing structures and longitudinal beam adopts flat type or goose-neck type. The web plate is of manganese steel and welded together with upper plate and lower plate through automatic submerged arc welding to form the longitudinal beam. Pellet blasting treatment technology makes the chassis rust free, cross members penetrate longitudinal beams and are welded together.
4. Non-independent suspension (air suspension optional) consists of tandem leaf spring and suspension support. Reasonable structure, high rigidity and hardness enable the vehicle to bear load and reduce impulsion.
5. To ensure a good anti-corrosion and anti-rusting performance, the body gets three layers of paint spraying as one rust inhibiting primer + two more reinforcing coats.
6. Products are designed with advanced software to meet the customizing.

Product typeFlatbed cargo semi trailer
Outside dimensionLength:8500mm-13000mm,width :2500mm,height: 2860mm-2900mm
Tare weight6.5-7.2T
Wheelbase6560mm+1310mm+1310mm
Loading capacity30T-60T
Axle12T/14T,BPW Brand
ABS systemOptional
SuspensionMechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand )
Spring leaf90(W)mm*13(Thickness)mm*10 Layer,optional
Tires12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
Rim9.00-22.5/8.00-20/8.5-20 China brand
King pinJOST 2.00 or 3.5 inch
Support legsJOST brand
The material of main beamThe height of the beam is 500mm ,upper plate is 14mm ,down plate is 16mm,middle plate is 8mm .material is Q345B steel
Floor plate3mm or can be optional
Brake ChamberWABCO BE 6 RELAY VALVE ;T30/30+T30 Spring brake chamber (TKL brand) ; Two pieces of 45L air tanks or China brand
Electrical system24v,7 wire harness
Tool boxOne piece or according to the requirement of buyer
PaintingCompete Chassis sand blasting to clean rust ,1 coat of anti-corrosive prime ,2coats of final paint

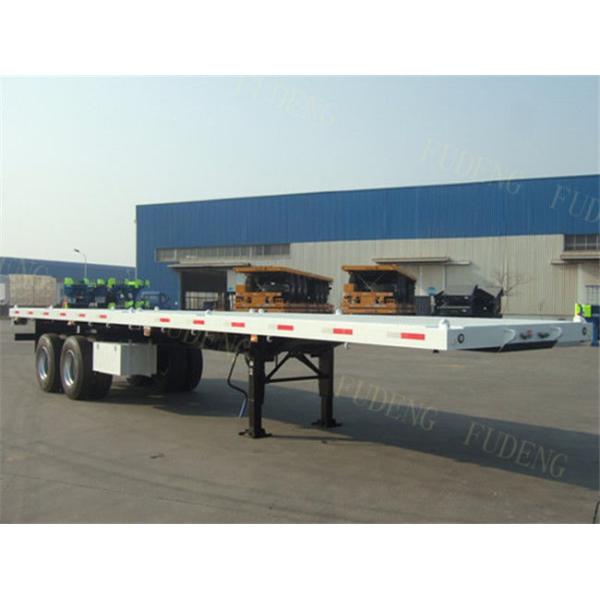

2 axle 20ft / 40ft flatbed semi trailer
Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension

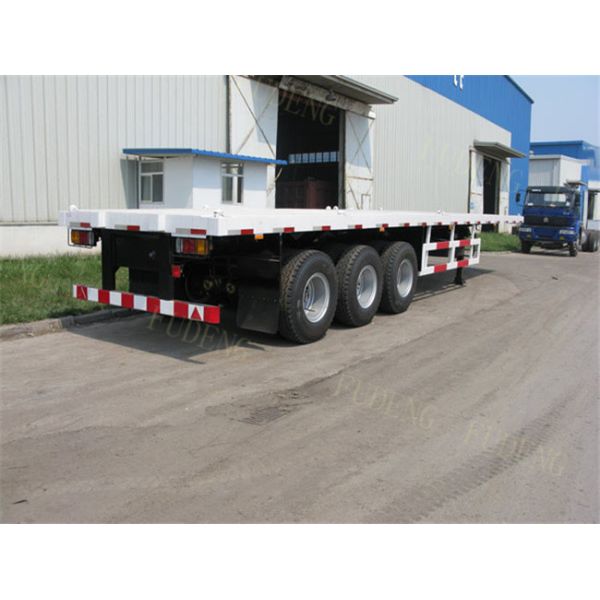

3 axle 20ft / 40ft flatbed semi trailer
Custom Made Truck Flatbed Trailers Double Axles Mechanical / Air Suspension
Service

1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.


We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with 3% off and nice quality to ensure the trucks and trailers being in good working conditions.
