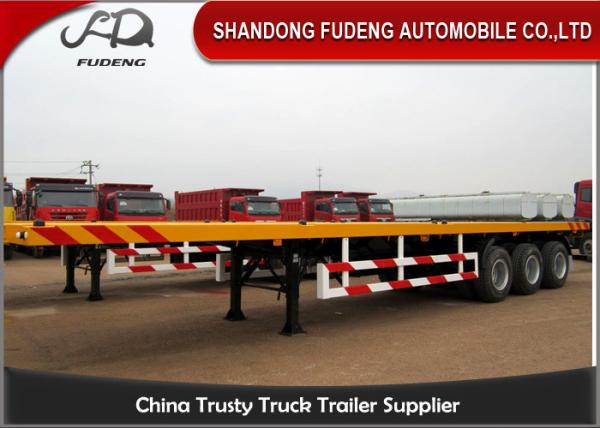

40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
Specifications
Brand Name :
Fudeng
Model Number :
FDZH040716
Certification :
ISO/CCC/SGS
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
10 - 20 work days after 30% deposit
Packaging Details :
Bulk cargo ship or Ro - ro
Payload :
40ton
Application :
Carrying 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags
Axle :
3 Axles
Advantage :
Customized Design
Color :
Optional
Dimensions :
20 0r 40 Ft Flatbed Trailer Or Customized Available
Kingpin :
50# or 90#
Landing gear :
28ton
Price :
negotiation
Description

40 Foot High Flat Bed Semi Trailer With 3 Axles For Carry Container Or Cement Bags

Applications


FUDENG Flate bed semi trailer is mainly used to Carry 40ft Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags ..Our flat bed semi trailer are engineered and custom built to meet the
needs of each customer, based on application, regional weight laws, severity of service, operational efficiency and personal preferences.


Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Itemthat would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.


Competitive Advantage


1, Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.


2, Flatbed Semi Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.


3, All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use


4, Strong trailer frame was made from T700 steel


5, The floor is covered with corrugated sheet metal


6, Heavy duty type suspension

Specification

Dimension 12450×2500×1550mm( outside dimension,The exact size depends on the final design.)
Loading Capacity less than 60 tons
Bottom Plate Thickness: 3mm checkered plate /Q235 steel
Axle 13 T/16T, FUWA /BPW /Huajing Brand two or three axles
Rim 9.00-22.5, 13pcs
Tire 12.00R22.5/ 315 80R22.5, 13pcs
Suspension Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand )
Spring leaf 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12 layers
King pin JOST brand 2.0 or 3.5inch (bolted or welded type)
Support leg JOST brand C200T or Chinese brand 28Tons (Double speed)
Main beam Height: 500mm Top plate: 14mm Middle Plate: 8mm; Bottom Plate is 16mm; Material: Q345B Steel
Side beam 16mm or 18mm steel channel (Material: Q235steel ).
Brake chamber WABCO RE 6 relay valve;
Twist lock 4, 8, or 12 sets (lifting or screw Type)
ABS Optional
Valve WABCO valve
Light LED light (specially intended for oversea market )
Voltage 24V
Tool box 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar.
Its size can be tailored to suit your needs.)
Painting Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and
2 layers of top coats.
Shipping Terms By bulk cargo carrier, RORO or 40HQ container.

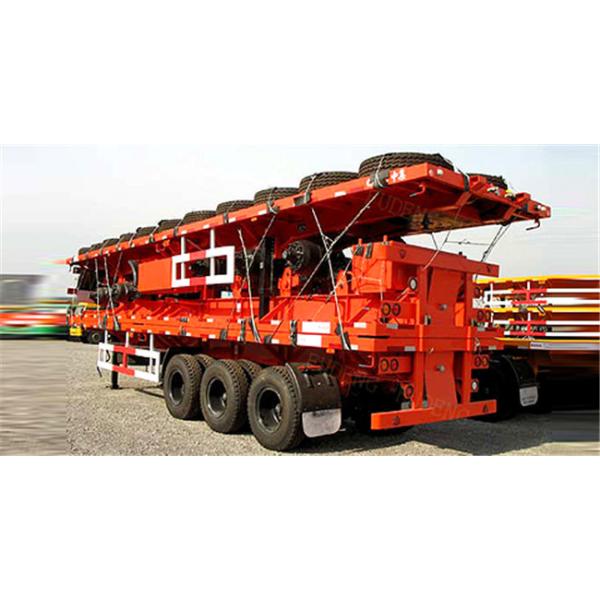

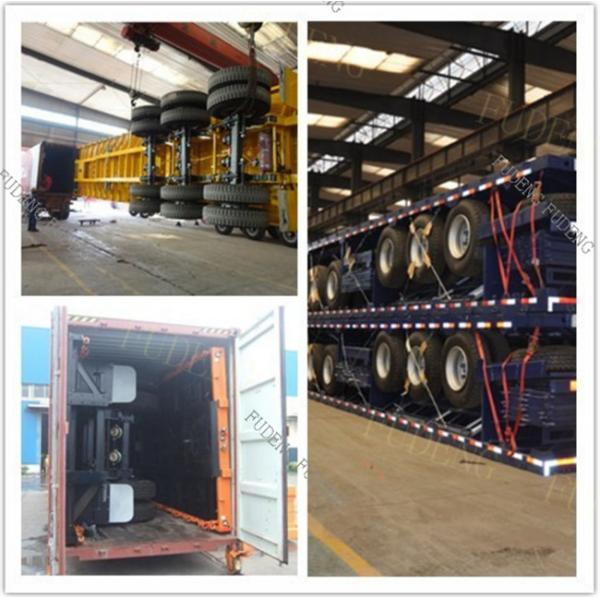

Packaging & Shipping
40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
40 Feet High Flatbed Container Trailer For Container / Cement Bags Transport
Main market - - Fudeng trailer

African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

European and Asian countries:

Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam, Laos, Cambodia, the Philippines, Malaysia and so on.

South American countries:

Brazil, Bolivia, Uruguay, Peru, Ecuador , Trinidad and Tobago , Chile, Barbados , Argentina, Dominica, Cuba, and so on
