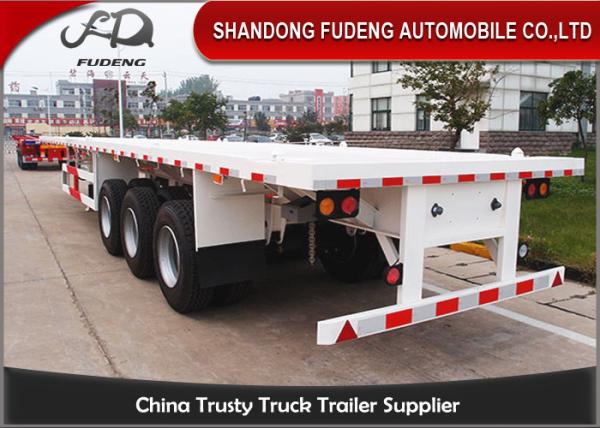

Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload
Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload
Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload
Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload
Specifications
Brand Name :
FUDENG Brand
Model Number :
Flatbed container trailers
Certification :
BV,SGS, CNCA, CIQ .etc.
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Flatbed container trailer
Payment Terms :
L/C, D/A,, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation
Application :
Carry Container, Hoses, Cement Bags And Other Goods
Axles :
Fuwa/BPW/Chiness brand
Size :
12,500*2,500*1,560 mm Or customized
Key words :
Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers
Suspension :
Mechanical Suspension Or Air Suspension
Payload :
30-80Tons
Container locks :
12 Units
Landing Gear :
JOST 28 Tons
Price :
negotiation
Description

40ft Container Chassis Flatbed Container Trailer 3 Axles flatbed trailers

FUDENG Flatbed container trailer Advantage:

1. 20ft Flatbed Container trailer can use it to carry one 20ft cargo containers at one time and also deliver products like pipe , steel , lumber and any other item you want.

2. High strength frame : Torsion - resistan of Main Longitudinal Beams("I" high strengh steel) and Transverse Beam (channel beam)

3. All the parts of Flatbed Semi Trailer are purchased from famous brand product like Jost Lading Gear, WABOCO emergency brake, BPW Axle.That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

4. 40ft Flatbed Container Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
5. Surface treatment: Pretreatment to coating , apply sandblast to the whole structure, zinc-rich primer puls acrylic polyurethane top coating.

6.Delivery time within 15 working days.

Specifications
Dimension 12.5m×2.5m×1.5m (Outside)
Payload 30-80Tons
Tare weight About 8.5 Tons
Twist lock 4, 8, 12 units or customized
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3mm flat bed
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ containers

40Tons Flatbed container trailers.
Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload
55Tons Flatbed container trailers.
Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload

Package&Shipping.

Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload

Welcome to visit our factory!
