Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear
Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear
Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear
Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear
Specifications
Brand Name :
FUDENG Brand
Model Number :
Flatbed container trailers
Certification :
BV,SGS, CNCA, CIQ .etc.
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Flatbed container trailer
Payment Terms :
L/C, D/A,, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation
Application :
Carry Container, Hoses, Cement Bags And Other Goods
Axles :
Fuwa/BPW/Chiness brand
Size :
12,500*2,500*1,560 mm Or customized
Key words :
Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers
Suspension :
Mechanical Suspension Or Air Suspension
Payload :
30-80Tons
Container locks :
12 Units
Landing Gear :
JOST 28 Tons
Price :
negotiation
Description

Customized Dimension 20&40ft ontainer semi trailers with 28Tons Landing gear

3 Axle 30-80 Tons Flatbed container trailer with 12R22.5 tires is the most popular trailer for transporting containers, 20ft or 40ft. We have exported many to all the world for working very well. Welcome you inquiry very soon.

Flatbed container trailer Feature:

1> Strong trailer frame was made from T700 steel

2> All cross beams are completely reinforced

3> Heavy duty type suspension

4> Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chamb- ers also widen brake pads.

Specifications
Dimension 12.5m×2.5m×1.5m (Outside)
Payload 30-80Tons
Tare weight About 8.5 Tons
Twist lock 4, 8, 12 units or customized
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3 mm flat bed
Axle 2 or 3 axles, BPW/FUWA
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ containers
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ containers

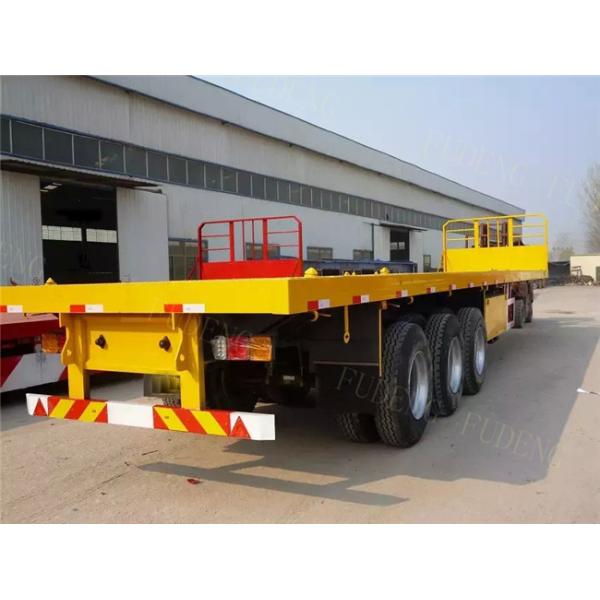

3 Axles 40Tons Flatbed container trailers.
Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear
3 Axles 60Tons Flatbed container trailers.
Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear

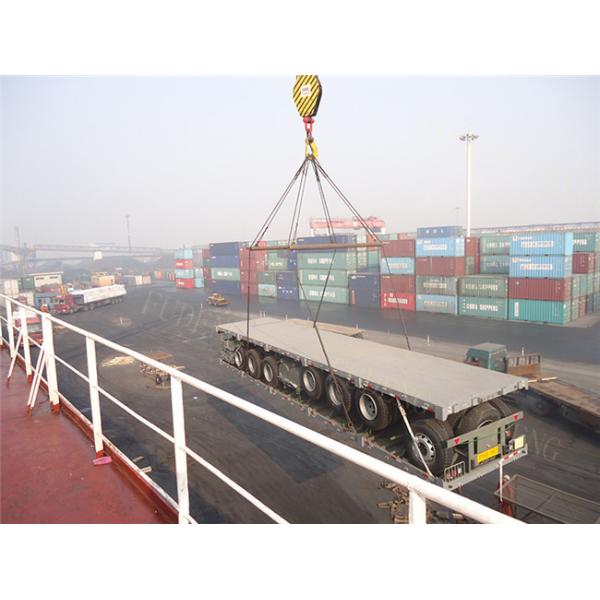

Package&Shipping.

Customized Dimension Flatbed Container Trailer With 28 Tons Landing Gear

Welcome to visit our factory!
