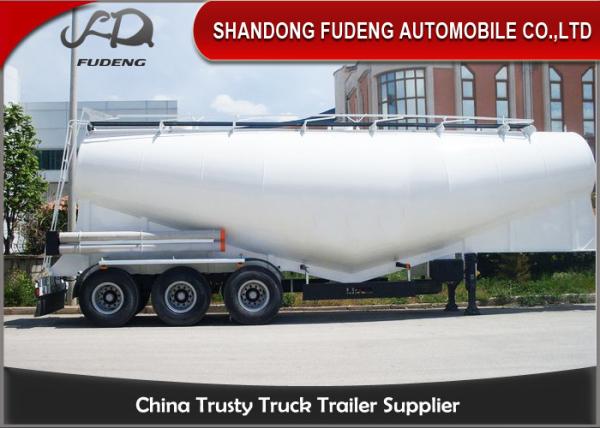

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda
Specifications
Brand Name :
FUDENG Brand
Model Number :
Bulk cement tanker trailer
Certification :
CCC, CE, SGS, BV,ADR
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Bulk cement tanker tailer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units per Month
Delivery Time :
20-30days after Deposit
Packaging Details :
Shipping by the Bulk cargo transportation
Product name :
Bulk cement tanker trailer
Loading capacity :
30-75CBM
Axles :
Fuwa/BPW/Chinese brand
Brand name :
FUDENG Brand
Size :
10500*2500*4000 Or Customized
Material :
Reinforced Steel
Use :
Bulk Cement Transporters
Tank Thickness :
6mm Tank Thickness, Optional
Price :
negotiation
Description

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda

Features of Bulk Cement Tanker Trailer:

1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Fluidized bed design is reasonable, the air compressor and the perfect match of tank; Residual rate is low, safety performance is high, easy to operate; Good performance of simple structure, convenient maintenance, vulcanization.

5.Working pressure 0.2Mpa, Discharge speed 1.2-1.5t/mm, Residual rate≤2‰,Discharge height≥25m.

Bulk Cement Tank Trailer Application:

1. For dry powder transporting, such as bulk cement, flour, and so on.

2. Volume is optional.

3. High-tensile steel with strong load capacity.

4. Air compressor and diesel engine are equipped.

5. Can be designed according customer's requirement

Specification:

Assembly Name Composition Specifications
Chassis Main beam

Q345Steel;The height of the beam is 500mm;

Middle plate is 8mm;Down plate is 16mm.
King Pin 2”or 3.5”traction pin
Dimensions(L*W*H) 11980*2500*3800mm
Tank body Tank body &end plate Q235/5mm steel &6mm steel sheet r
Manhole cover 500mm manhole cover.2 sets with 2 breather valve
Discharge valve &pipe 4” disc valve&4” seamless steel tube
Bottom valve 1-2 sets of aluminum API pneumatic bottom valve
Suspension Suspension type Common mechanical(Option Air Suspension
Steel Spring 10/10/10
Running system Axle 3 axle Fuwa/BPW/Chinese Brand
Wheel Rim 9.0-22.5 steel wheel rim
Tire Spe:12R22.5; Number of Tire:8 pieces
Brake system Brake Chamber 6 big chamber
Brake Valve KTL Brand/WABCO
Brake system Dual Line Brake system
Other Tool box 1 set standard tool box
Light Tail lamp with turn signal ,brake light & reflector, side lamp etc.
Painting 1 coat of anticorrosive prime, twice coats of final paint.
Spare Tire Carriers 2 pieces
Leading gear 28T Manual operating, Heavy duty landing gear
Weight Tare Weight 9000Kg
Loading Capacity 42000 liters
Axle weight load 13T/12T

30CBM Bulk cement tanker trailers.

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda

35Tons Bulk cement tanker trailers.

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda

Factory Overview.

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi Trailer for Uganda

Welcome to visit our factory!
