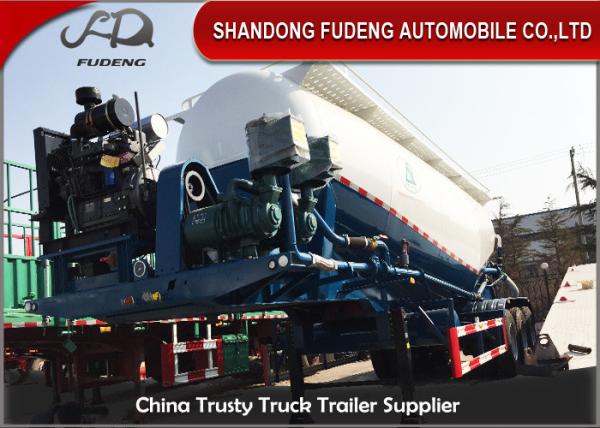

50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer
50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer
50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer
50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer
Specifications
Brand Name :
Fudeng
Model Number :
FDZH040602
Certification :
CCC, CE, SGS, BV
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 sets per month
Delivery Time :
25 - 35 days after 30% deposit
Packaging Details :
Bulk cargo
Function :
Cement Flour Powder Material Transportation
Tank Thickness :
4mm 5mm Tank Thickness Optional
Landing Gear :
JOST Brand
Warrenty :
2 Years
Material :
Reinforced Steel
Payload :
50 Ton 60 Ton 70 Ton 80 Ton
Axle :
3 * 13 Ton BPW , Fuwa Axle
Color :
Customzed
Price :
negotiation
Description

50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer

-- SHANDONG FUDENG AUTOMOBILE CO.,LTD

Our manufacturing equipment advantages

  • Custom built to meet customers needs and requirements,30m3-80m3 capacity available, unloading speed: 1.3ton / mins
  • FUDENG Cemetnt Tank Trailer adopt flat butt automatic welding machine(splice plate machine), to ensure the steel is flat, and seam is welded by one side in shape by two sides.
  • Tank rolling machine, the Cement tank body is shaped by one time, all of which features the machine good in appearance, efficient in production.
  • Automatic flat board turning-over machine, it is used in the procedure of the board turn-over after being welding. With a combination of the flat butt automatic welding machine, make the safety and efficiency.
  • Automatic girth welding machine for irregular shape tank. The welding seams is good in appearance, high in welding quality and production efficiency.

Specification

Dimension Overall (L*W*H):10000 *2500*4000 mm
Tank Body Loading capacity: 30m3 to 80m3
Thickness: 6 mm
Compartments: 1 compartment (or according to customers’ requirements)
Diesel Engine Brand: Original WEICHAI Power Model: 4100
Air Compressor: Original SUYA Or HANGYA Brand
Rubber Tubes: 6M long, one set.
Manhole: 2 sets.
Brake system Emergency relay valve: WABCO Brand
Braking chamber: 6 sets of dual air brake
ABS System: KEMI Brand
Moving Parts Axle:3x13ton FUWA axles (16 ton braking performance)
Tire/Rim:11.00R20 radial tire /8.0-20
Suspension System Reinforced plate spring balanced suspension
Leaf-spring :10pieces with width of 90mm
Electrics 24 volt electrical system rear lights
King pin JOST 2" (50#) bolted type or 3.5" 90#
Landing Leg Support JOST 28Ton
Accessories 2 tool boxes + 2 spare tire racks +umpers( side and rear)

Details

1. High strength steel is used to construct the semi trailer sub-frame, resulting in a lightweight construction that resists twist, shock, and bumps. The bulk cement carrier is suitable for driving on various tough terrains.

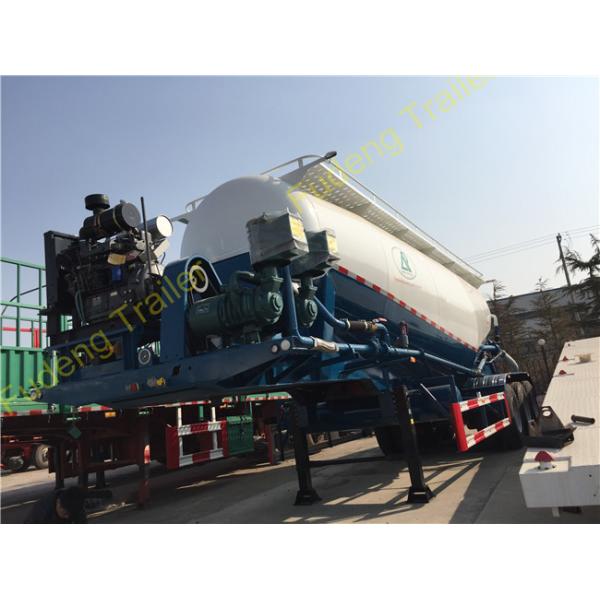

50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer

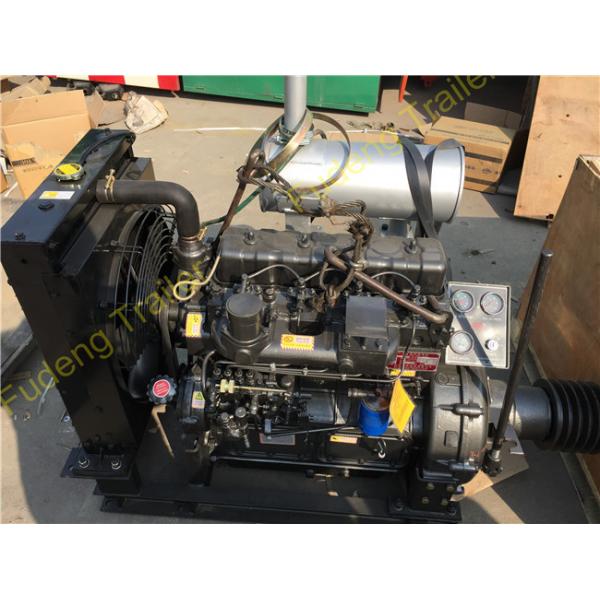

2 . Well-known brand Weichai Engine and BOHAI air compressor and famous trailer parts give durability and attractive looks, saving money on operation and repair cost

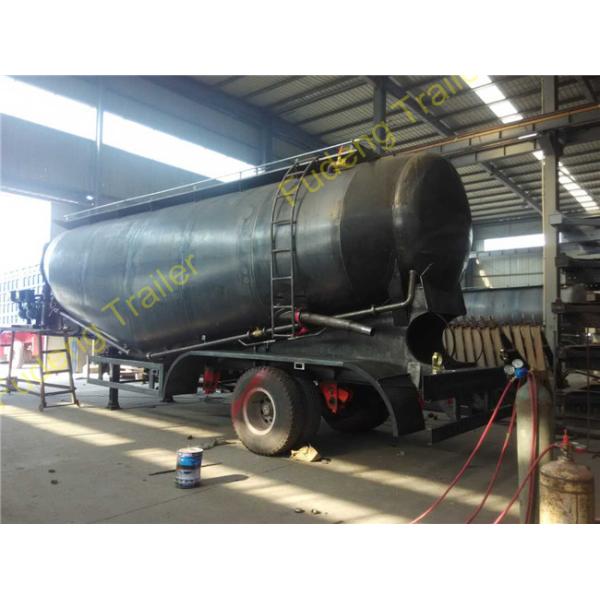

50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer

3 . Unique to FUDENG cement bulker is the V-shaped tank that allows complete discharge of the cement, with only less than 1% being left in the tank boday, residual ratio less than 15 kg

50cbm Bulk Cement Tank Semi Trailer , Silo Bulker Cement Tank Trailer
