Tri Axles Chassis Container Trailer For 40ft Container Transportation
Tri Axles Chassis Container Trailer For 40ft Container Transportation
Tri Axles Chassis Container Trailer For 40ft Container Transportation
Tri Axles Chassis Container Trailer For 40ft Container Transportation
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1705 chassis trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport 20ft And 40ft Container, Or Bulk Cargo
Color :
White, Yellow, Red, Green, Blue Customized
Pattern :
Fudeng Logo Or As Customer's Request
Suspension :
Mechanical Or Air Suspension
Capacity :
30-50 Ton Available
Axle :
2 Or 3 Or 4
Conditions :
New
Price :
negotiation
Description

Tri axles 40ft container transport skeleton chassis semi trailer for sale

Fudeng chassis are built tough to be damage-resistant, low-maintenance and loader-friendly. Choose from a full line of quality container chassis spec'd with durability and versatility in mind.

Chassis trailer specification
Dimension 12.5m×2.5m×1.5m (Outside)
Payload 35T-75T
Tare weight About 4.5T--8.5T
Twistlock 4, 8, 12 units or customized
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3-8 mm flat bed
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO/40HQ container

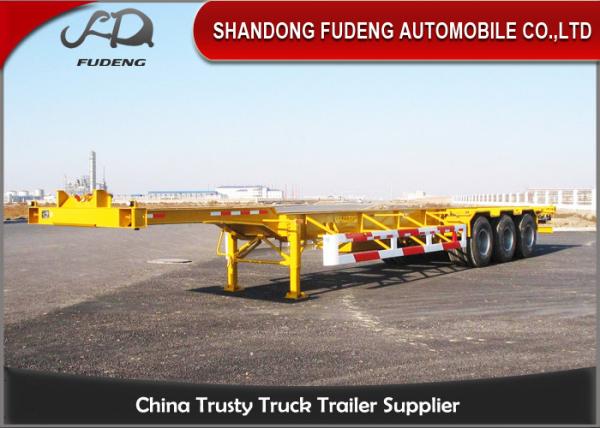

3 axles chassis trailer

Tri Axles Chassis Container Trailer For 40ft Container Transportation

2 axles chassis trailer

Tri Axles Chassis Container Trailer For 40ft Container Transportation
