BPW axle 40ft skeletal container trailer air bag Suspension container trailer
BPW axle 40ft skeletal container trailer air bag Suspension container trailer
BPW axle 40ft skeletal container trailer air bag Suspension container trailer
BPW axle 40ft skeletal container trailer air bag Suspension container trailer
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1705 chassis trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport 20ft And 40ft Container
Color :
White, Yellow, Red, Green, Blue Customized
Pattern :
Fudeng Logo Or As Customer's Request
Suspension :
Mechanical Or Air Suspension
Capacity :
30-50 Ton Available
Axle :
Fuwa or BPW brand
Tires :
Super single tire
Price :
negotiation
Description

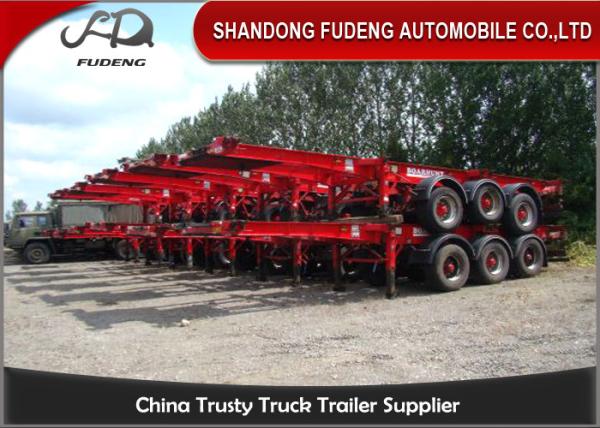

BPW axle 40 ft chassis container semi trailer with air bag Suspension

Container chassis semi-trailer are designed for 20ft 40ft 45 ft container and sea freight transport tasks and combine both safe and rapid container handling. The welded container trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.

BPW axle 40ft skeletal container trailer air bag Suspension container trailer

1. We use high-intensive steel to achieve high capacity but low weight.

2. Both the skeleton and the twistlock is designed as inside and outside strengthening.

Tare Weight 4000kg
Load Capacity 30000KG
Dimension 12500x2500x1600mm(Adjustable)
King Pin 2.00'' traction pin , JOST Brand , bolts in type
Suspension Common Mechincal Suspension ,American type
Steel Spring Four sets of reliable local brand , 10pcs leaf spring , 13mm thickness , 90mm width
Landing Leg JOST D200T suport legs , manual operation , heacy duty local brand landing gear .
Main Beam

Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate

thickness is 16mm; Material is Q345 Carbon Steel.
Side Beam 16mm or 18mm channel steel(Material is Q235 carbon steel)
Twist Locks Four or Eight pieces(Lifting type or Twist Screw type)


BPW axle 40ft skeletal container trailer air bag Suspension container trailer
