20ft / 40ft Chassis Container Trailer 30-50 Ton Load FUWA / BPW Axle
20ft / 40ft Chassis Container Trailer 30-50 Ton Load FUWA / BPW Axle
20ft / 40ft Chassis Container Trailer 30-50 Ton Load FUWA / BPW Axle
20ft / 40ft Chassis Container Trailer 30-50 Ton Load FUWA / BPW Axle
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1705 chassis trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport 20ft And 40ft Container
Color :
White, Yellow, Red, Green, Blue Customized
Pattern :
Fudeng Logo Or As Customer's Request
Suspension :
Mechanical Or Air Suspension
Capacity :
30-50 Ton Available
Axle :
Fuwa or BPW brand
Conditions :
New
Tires :
12R22.5 Vacuum Tire / 11.00R20
Price :
negotiation
Description

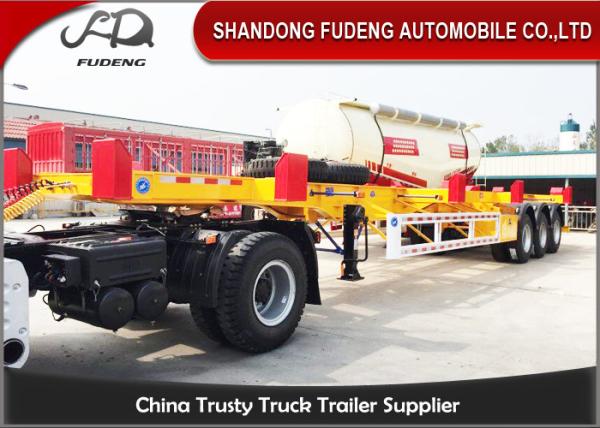

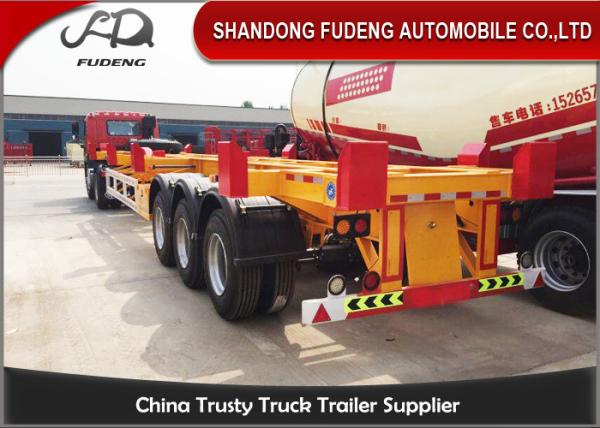

20ft 40 ft Terminal chassis semi truck trailer container carrier

Container chassis semi-trailer are designed for 20ft 40ft 45 ft container and sea freight transport tasks and combine both safe and rapid container handling. The welded container trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.

The Advantages

· Do not need twist lock chassis trailer for transporting 2 x 20' or 1 x 40' different containers

· Pneumatic hook locks for maximum safety

· Dual-tyre optional for greater load capacity

Tare Weight 4000kg
Load Capacity 30000KG
Dimension 12500x2500x1600mm(Adjustable)
King Pin 2.00'' traction pin , JOST Brand , bolts in type
Suspension Common Mechincal Suspension ,American type
Steel Spring Four sets of reliable local brand , 10pcs leaf spring , 13mm thickness , 90mm width
Landing Leg JOST D200T suport legs , manual operation , heacy duty local brand landing gear .
Main Beam

Height: 500mm, upper plate thickness is 14mm, middle plate thickness is 8mm, down plate

thickness is 16mm; Material is Q345 Carbon Steel.
Side Beam 16mm or 18mm channel steel(Material is Q235 carbon steel)
