40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension
40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension
40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension
40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension
Specifications
Brand Name :
Shandong Fudeng
Model Number :
SDFDZH040724
Certification :
BV,CCC,ISO
Place of Origin :
Shandong China (Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 Units Per Month
Delivery Time :
20 days after 30 deposit
Packaging Details :
Nude
Price :
negotiation
Tire :
12R22.5 12 sets
Support legs :
28 ton
Material :
Carbon steel
Dimension :
12450 * 2500 * 1550mm
Key words :
Chassis container trailers
Suspension :
Mechanical / Air
Axle brand :
FUWA
King pin :
50# or 90#
Description

Container Chassis 40 Feet Flatbed skeleton Trailer / fuwa axles Skeleton Semi Trailer

Competitive Advantage:


1. Skeleton / Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
2.Skeleton / Flatbed Semi Trailer includes is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
3. All the parts of Skeleton / Flatbed Semi Trailer are purchased from our qualified suppliers, That made Semi Trailer more reliable, exhibiting great strength and a long time time of use.

Specification

40ft Skeleton semi trailer
Weight 7.0T
Dimensions 12450x2500x1500(40ft)
Loading Capacity 30T
Tyre 11.00R20*12 pcs
Axles 3 /2 / 4 axle FUWA brand
King Pin 50 mm or 90 mm
Landing Gear 28 ton
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Main Beam Heavy duty and extra durability designed; welded by automatic underwater plasma cutting.
Height: 480mm Upper Plate: 14mm Middle plate: 8mm
Bottom plate: 16mm Material: Q345B Steel
Brake Air Chamber 6 big air chamber,3 axle synchronization vavle
Tool box One standard tool box
Water tank By customer’s demand
Spare Tyre Rack 2 pieces
Electrical 12V
Light LED light (specially intended for oversea market)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Pattern and Logo According to customer’s request
Shipping Terms By Bulk Cargo/45HQ/Ro-ro



Details

Through the introduction of foreign advanced design concept, in combination of the domestic transport situation, and through the analysis by finite element analysis system, our company Master standard skeleton container semi-trailer built through elaborate design, in which the frame weight is reduced in all aspects, meets the customer demands for meeting the standard loading capacity to maximum extent and creating maximum profit.

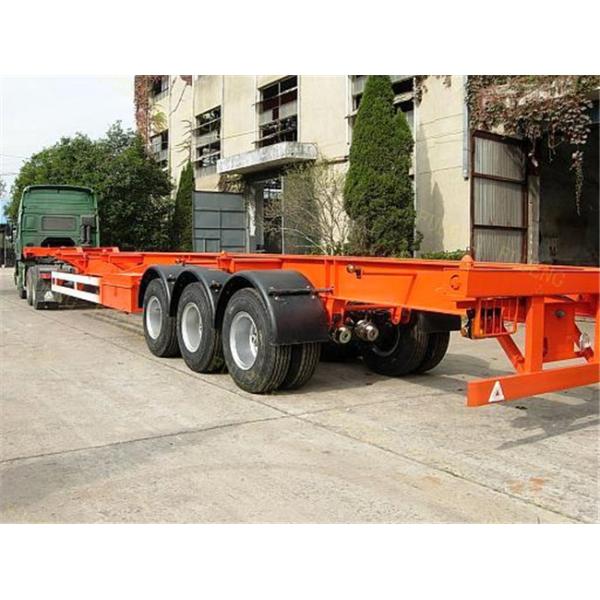

40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension

High bearing capacity: the design of frame structure is optimized through advanced design concept to reduce the dead weight instead of the bearing capacity and guarantee good bearing capacity.

Linkage support leg: the linkage support leg is equipped as standard equipment to ease the operations.

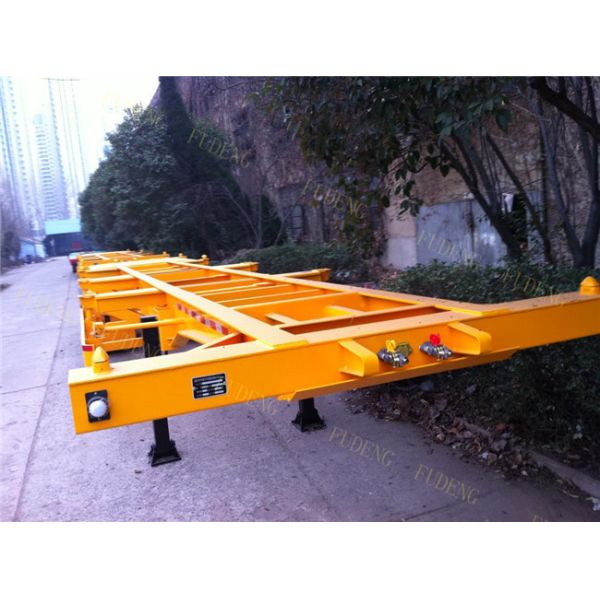

40 Feet Flatbed Skeleton Shipping Container Trailer Mechanical / Air Suspension


Service

1. the satisfied product with high level standard;


2. the full aspect service from order to shipping;


3. give customer most suitable advice when customer has special needs for your transportation
or construction;


4. help customer to get the related spare parts of trailer or tractors if customer needs.

Welcome to visit our factory!
