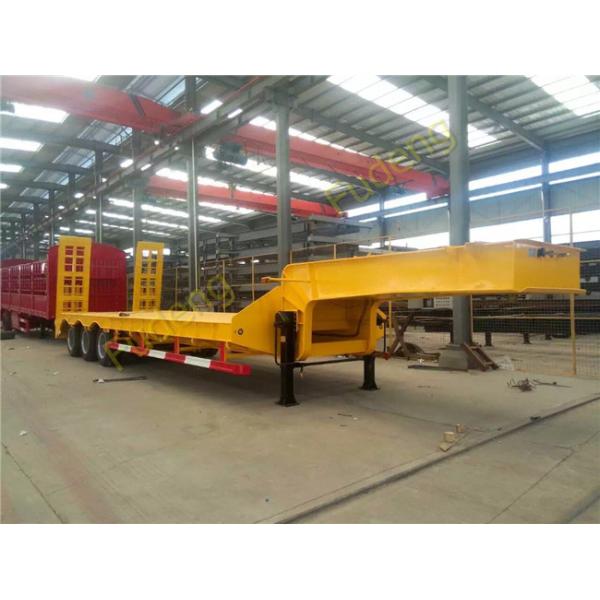

Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons
Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons
Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons
Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Low bed trailer
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Price :
Negotiation
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
40-80Tons
Color :
Customized
Size :
12.5mx3mx1.5m Or Customized
King Pin :
50 # Or 90 #
Landing Gear :
JOST 28 Tons with two Speed
Material :
Q345B carbon steel
Description

tri-axle hydraulic low bed semi trailer dimentions with load capacity 60 tons

1. The hydraulic low bed trailer use through-going beam structure, has frame structure with flat type and goosen neck type, also

has high integral strength, small weight, beautiful appearance, safe and reliable operation.

2. The tri axle low bed semi trailer use advanced manufacture technology, makes automatic submerged-arc welding for vertical

beam, use shot blasting treatment for intergral frame, removes welding stress effectively.

Lowbed trailers After-Sales Service:

1). Traning of trailer operating and normal maintenance .

2). Regularly callback to know the vehicle's working status.

3). Supply the service of regular repair.

4). Solve the customer’s advisory.

5). The overseas engineers are always ready to deal with unexpected needs.

6). 24 hours hotline.

7). CKD and SKD are available.

8). Faster, better and more professional.

LOW BED TRAILER Specification:

3 axles low bed semi trailers
DIMENSIONS
Tare weight 10000kg
Size 13000mm*2500mm*1250mm
Payload 60T
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Side beam 25# channel steel(Q235)
Cross member 16# channel steel(Q235)
Floor 5mm checkered plate
Side wall No
Front board No
Axle 3 axle FUWA brand 13T
Suspension Mechanical suspension American type local brand
Leaf spring Leaf spring 10pcs*90*13mm
Tire 12R22.5-18pr double star brand 12pcs
Wheel rim 9.0-22.5 better brand 12pcs
Kingpin JOST brand 2” weld king pin
Landing gear JOST brand two-speed, manual operating ,heavy duty landing gear 28T
Ladder Mechanical ladder
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS Optional
Lights LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery 20 workdays after we received 30% of contract value T/T down payment

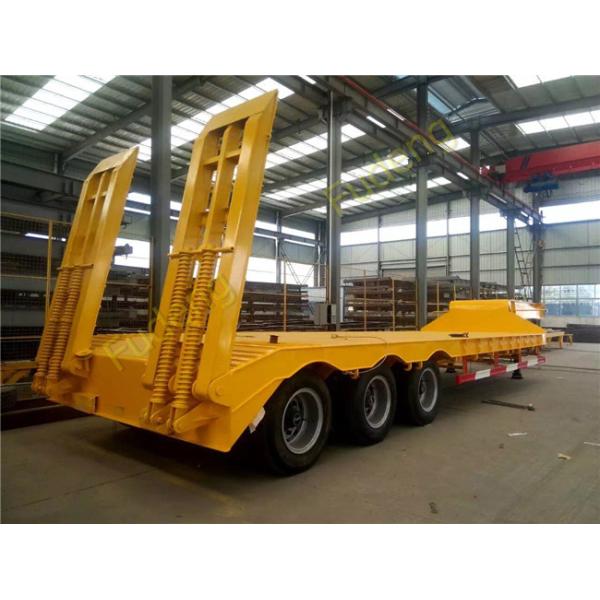

3 Axles low bed semi trailers With Mechanical Ramps .

Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons

60Tons Low bed semi trailers.

We can provide Hydraulic ramps / Hydraulic Folding Ramps / Mechanical Ramps for you , You can Choose by yourself . the Mechanical Ramps

can operata by yourself ,it's easy for you .and the Hydraulic and Hydraulic Folding is convenient for you ;

Three Axles Hydraulic Low Bed Semi Trailer Load Capacity 40 - 80 Tons

Welcome to visit our factory!
