Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons
Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons
Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons
Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Low bed trailer
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
40-80Tons
Color :
Customized
Size :
12.5mx3mx1.5m Or Customized
King Pin :
50 # Or 90 #
Landing Gear :
JOST 28 Tons
Material :
Q345B carbon steel
Price :
negotiation
Description

4 axle low bed semi trailer 100 ton 120 tons low bed truck trailer for sale

1. The hydraulic low bed trailer use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.

2. The tri axle low bed semi trailer use advanced manufacture technology, makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.

Lowbed trailers After-Sales Service:

1). Traning of trailer operating and normal maintenance .

2). Regularly callback to know the vehicle's working status.

3). Supply the service of regular repair.

4). Solve the customer’s advisory.

5). The overseas engineers are always ready to deal with unexpected needs.

6). 24 hours hotline.

7). CKD and SKD are available.

8). Faster, better and more professional.

LOW BED TRAILER Specification:

Tare Weight About 8.5-13T
Dimension

12000mm-18000mm*2500mm-3500mm*3050mm

Please indicate the working platform height and length.
Loading Capacity (T) 100T-120T
Axle 13 T/16T, FUWA /BPW Brand
Rim 6.5-20/7.5-20/8.00-20/8.5-20
Tire 8.25R20/10.00R20/11.00R20/12.00R20
Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )
Spring leaf 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg JOST brand D200T or China brand 28Tons (Double speed)
Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle

plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam 16mm -25mm channel steel ( Material is Q235steel ).
Ladder Manual or Hydraulic type
Gooseneck For choose
Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber

(TKL brand);Two pieces of 45L air tanks
ABS Optional
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve WABCO valve
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and

1 unit cranking bar)
Painting

Complete Chassis sand blasting to clean rust,

1 coat of anticorrosive prime, 2 coats of final

paint
Shipping Terms: By bulk cargo carrier, RORO

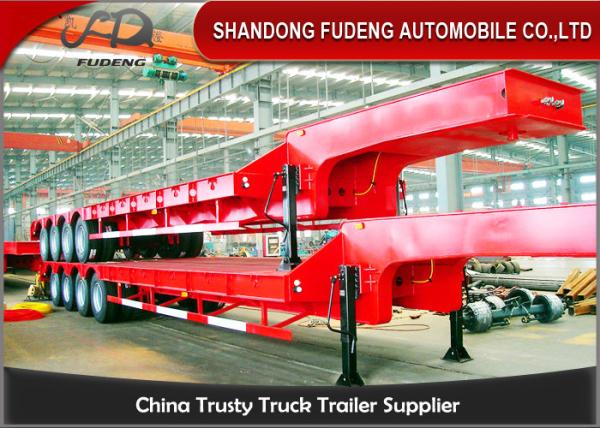

4 Axles low bed semi trailers.

Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons

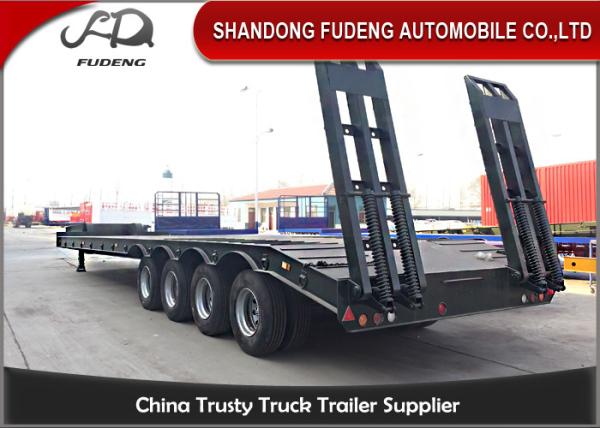

100Tons Low bed semi trailers.

Four Axles Steel Material Lowboy Tractor Trailer Payload 100 / 120 Tons
