50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer
50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer
50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer
50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Low bed trailer
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
40-80Tons
Color :
Customized
Size :
12.5mx3mx1.5m Or Customized
King Pin :
50 # Or 90 #
Landing Gear :
JOST 28 Tons
Material :
Q345B carbon steel
Price :
negotiation
Description

3 axles lowbed semi trailers price heavy duty 50-120 tons low bed trailer for sale

This series hydraulic low bed trailer applicable for the transportation of the mechanical equipment, excavators, bulldozer, large objects, highway construction equipment, large tanks, power plant equipment or machine,and all sorts of steel products.
2. Low bed trailer dimension could be customized, we can manufacture it according to your needs.
3.The axles of tri axle low bed semi trailer can be Fuwa/Bpw with different tonnages by your need with price differences.
4.The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension
5.The loading deck can be concave beams, tire appeared cover,totally flatbed, or extendable.
6.The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

Lowbed trailers After-Sales Service:

1). Traning of trailer operating and normal maintenance .

2). Regularly callback to know the vehicle's working status.

3). Supply the service of regular repair.

4). Solve the customer’s advisory.

5). The overseas engineers are always ready to deal with unexpected needs.

6). 24 hours hotline.

7). CKD and SKD are available.

8). Faster, better and more professional.

LOW BED TRAILER Specification:

Product Number PLY8324B
Outside Dimensions 13000x2500x1258(As the buyer's request)
Color/Logo Customized
Tare Weight 9.0ton
Rated Load 60ton
Axle Brand FUWA/BPW, other brand optional
No. of the Axle 4pcs
Axle load 13ton
Tyre Specations 12R22.5,11.00R20, other optional
Wheel rim 9.0-22.5 better brand 12pcs
Spare tire carrier 1 set
No. of the Tyre 12+1(Spare tyre)
King Pin 90#/50#
Landing Led JUSt brand two-speed, manual operating, heavy duty landing gear 28ton
Ladder Mechanical ladder
Suspension Mechanic/Air Bag/Independent Type Optional
Leaf Spring 6pcs*90*8pcs
Brake System Dual Lines Braking System With Automatic Air Chambers,Four double and two single chamber
Electric Sustem 24V, 7core socket, lights according to European standards.
Material of the Main Beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Painting Complete chassis sand blsting to clean rust,1 coat of anticorrosive, 2 coats of final paint

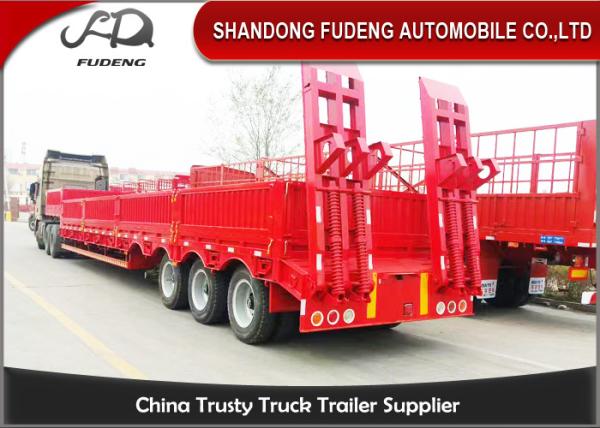

3 Axles low bed semi trailers.

50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer

70Tons Low bed semi trailers.

50-120T Low Bed Trailers , 50-120 T Q345B Steel Material Lowbed Semi Trailer

Welcome to visit our factory!
