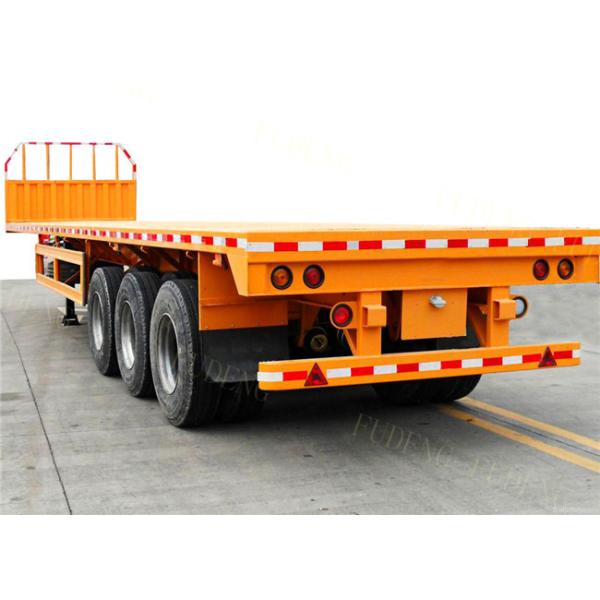

20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board
20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board
20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board
20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 Flatbed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport 20ft and 40ft container, or bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-50 ton available
Axle :
Normally 3
King Pin :
2" (50mm) or 3.5" (90mm)
Twist locks :
12 sets
Size :
12500*2500*1550mm
Description

20ft 40ft container flatbed tractor semi trailer with front board

Highly experienced and qualified team of experts is hired by our company, who possess profound in their respective work domain. Due to their in-depth knowledge and rich experience, we have been able to cater these products according to the specific requirements of the customers. Our experienced quality controllers keep a close eye on entire procedure from the very beginning of procuring raw material till the last delivery of our consignment.

Our Advantages:

1.We apply Underwater plasma machine to cutting steel material, which is more precise than high flame cutting and no deformation.

2. The main beam and side beam are reinforced, which can make the trailer more stable and heavy-loaded.

3. We use high-intensive twistlocks. They can be hiden to for various container transportation.

4. Thicken No.8 channel steel Diagonal bracing and 100mm frame make the chassis more solid.

5. The trailer parts were connected by bolts and nots, which is easy repair and duarable.

6. We use 6 air chamber, 3 axles synchronization to guarantee security when braking.

20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board

20 Ft 40 Ft Container Flatbed Tractor Semi Trailer With Front Board

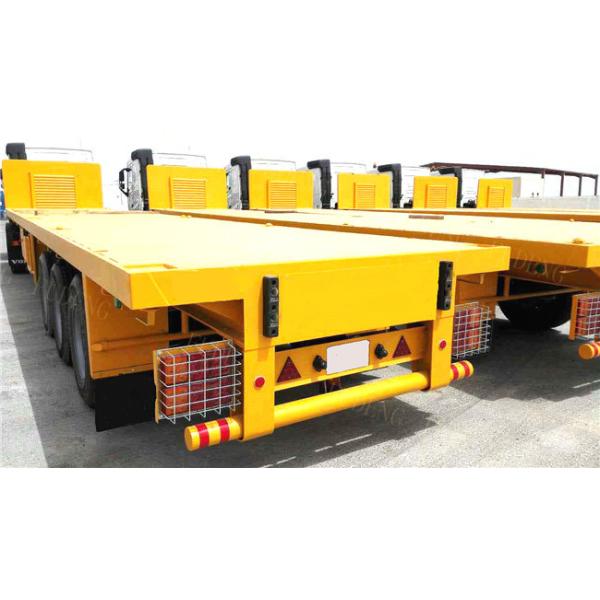

40ft container flatbed semi truck trailer
Tare weight
7000kg
Payload
55000kg
Oversize
12500x2500x1550mm
Chassis
Heavy duty and extra durability designed l beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.Top flange 14mm,width 140mm;middle Flange 8mm;bottom flange 16mm,width140mm
Axle
3
Capacity
13t/16t
Suspension
Mechanical suspension Or air suspension
Leaf spring
Leaf spring or air bag
Floor
Checkered plate
Tire
11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Wheel rim
8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Kingpin
2/3.5 bolt-in king pin
Landing gear
JOST brand two-speed,manual operation,heavy duty landing gear
Twist lock
12 no. of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Vehicular applications
Container (20ft,40ft...) transport
Braking system
WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks.
Painting
Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
Accessories
1 standard tool box
Spare tire carrier
2 spare tire carrier without spare tires
