45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks
45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks
45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks
45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 Flatbed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport 45ft container, or bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-50 ton available
Function :
Bulk cargo or container transport
King Pin :
2" (50mm) or 3.5" (90mm)
Axle :
3 axle FUWA / BPW (customized)
Brake system :
Double Line Air Brakes
Description

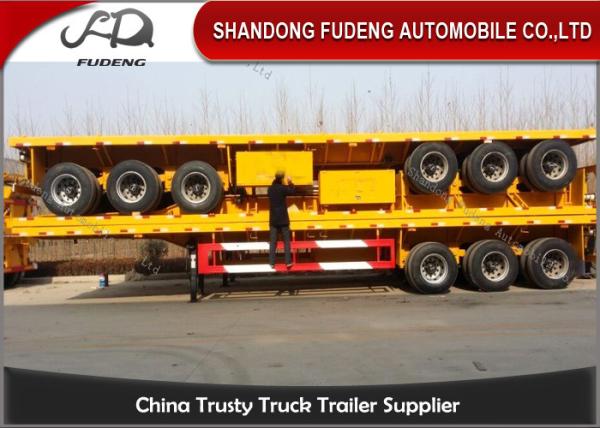

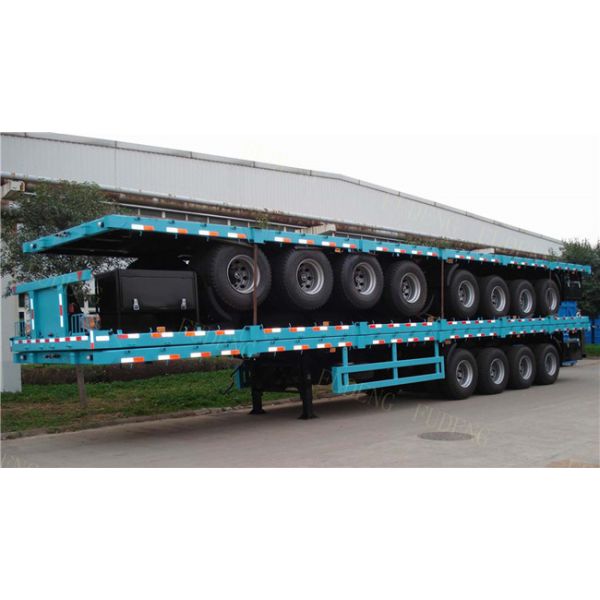

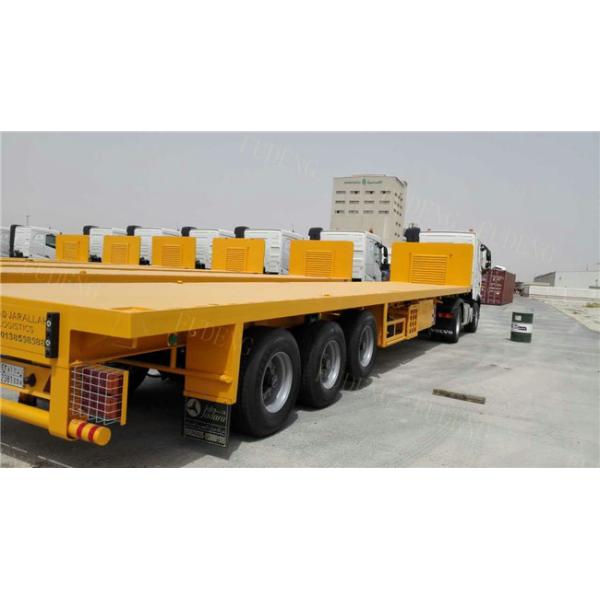

45 ft flatbed semi trailer for sale container transport with 12 twist locks

Fudeng provides a lightweight, high load capacity flatbed trailer to meet today’s unique and special load demands. Fudeng’s special process of forming the steel beams prior to the final heat treatment of the metal, intern maintains the strength properties of the alloy and enhances the structural integrity of the design.

Overall Dimension(mm) 12500x2500x3400
Loading Capacity(kg) 50000
Chassis Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle flange 8mm; Bottom flange 16mm, width 140mm.
Axle FUWA or BPW, 3 units
Suspension Chinese mechanical 3-axle suspension
Kingpin JOST brand, 2" or 3.5"
Landing Gear JOST brand two-speed, manual operating, heavy duty landing gear
Tire 12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5
Brake System WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; With ABS
Accessories One standard tool box, one spare tire carrier

Main characters:

  • Frame: The frame is manufacture by a structure, which are made of high strength steel. The main beam is designed reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
  • Axles: The axle can be selected in different famous brand of BPW, L1, JII and FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.

45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks

45 Ft Flatbed Semi Trailer Container Transport With 12 Twist Locks

Highly experienced and qualified team of experts is hired by our company, who possess profound in their respective work domain. Due to their in-depth knowledge and rich experience, we have been able to cater these products according to the specific requirements of the customers. Our experienced quality controllers keep a close eye on entire procedure from the very beginning of procuring raw material till the last delivery of our consignment.
