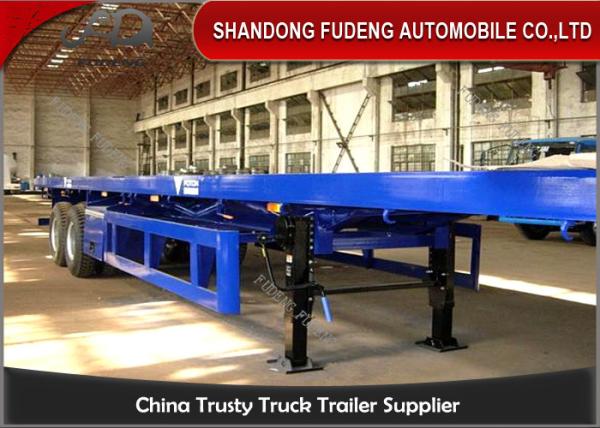

2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension
2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension
2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension
2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 Flatbed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport 20ft and 40ft container, or bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-50 ton available
Function :
Bulk cargo or container transport
King Pin :
2" (50mm) or 3.5" (90mm)
Description

2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension

Flatbed Semi Trailers is a very broadly used term in the trailer industry. Fudeng Trailers manufactures a full line of flatbed trailers for sale. Flatbed Trailers is defined as having the deck over the tires with no fenders. There are usually stake pockets and container locks on the sides of the trailer.

Overall Dimension(mm) 12500x2500x3400
Loading Capacity(kg) 50000
Chassis Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle flange 8mm; Bottom flange 16mm, width 140mm.
Axle FUWA or BPW, 3 units
Suspension Chinese mechanical 3-axle suspension
Kingpin JOST brand, 2" or 3.5"
Landing Gear JOST brand two-speed, manual operating, heavy duty landing gear
Tire 12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5
Brake System WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; With ABS
Accessories One standard tool box, one spare tire carrier

Specifications can choose:

  • High Quality Body with side walls
  • BPW, FUWA or Certificated Chinese brand Axles
  • ABS and EBS brake system
  • JOST or Chinese brand parking leg and king pin
  • Air and Mechanical Suspension
  • Strength Chassis Construction
  • Front Axle Lifting
  • Steel or Aluminum Rims

Main characters:

  • Frame: The frame is manufacture by a structure, which are made of high strength steel. The main beam is designed reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
  • Axles: The axle can be selected in different famous brand of BPW, L1, JII and FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.

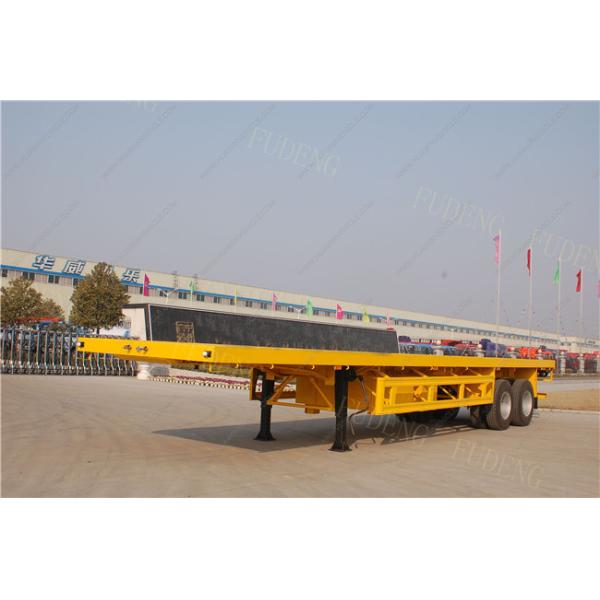

2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension

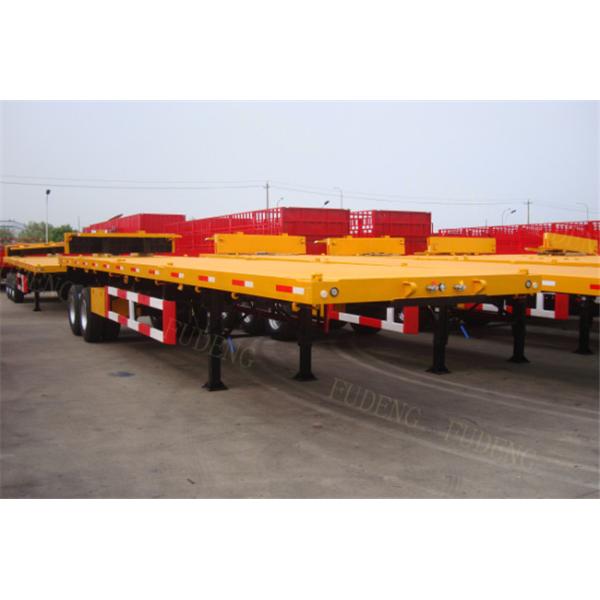

2 axle Flat bed Container Semi Truck Trailer with twist lock air bag suspension
