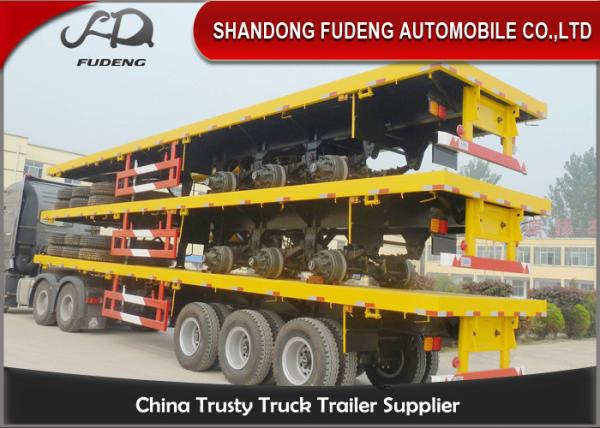

20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material
20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material
20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material
20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material
Specifications
Brand Name :
FUDENG Brand
Model Number :
Flatbed container trailers
Certification :
BV,SGS, CNCA, CIQ .etc.
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Flatbed container trailer
Payment Terms :
L/C, D/A,, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500Units Per Month
Delivery Time :
20days after deposit
Packaging Details :
nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation
Application :
Carry 20&40ft Container, Hoses, Cement Bags And Other Goods
Axles :
Fuwa/BPW/Chiness brand
Size :
12,500*2,500*1,560 mm Or customized
Key words :
Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers
Suspension :
Mechanical Suspension Or Air Suspension
Payload :
30-80Tons
Container locks :
12 Units
Landing Gear :
JOST 28 Tons
Price :
negotiation
Description

20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material

FlatBed container Trailer can use it to carry one 40ft container and two units 20ft containersat and also deliver products like pipe , steel , lumber and any other item you want.

All the parts of Flat bed Semi Trailer are purchased from famous brand product like Jost Lading Gear, WABCO emergency brake, BPW Axle.That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

We provides high quality various types of flat bed trailer with 30 ton to 80 ton loading capacity for carrying 20ft 40ft containers, pipe, steel plate, lumber, Cement Bags, and other heavy equipment.

Flatbed container trailer Feature:

1. Tri-axle Flatbed container trailer truck

2. FUWA axle, 12 locks, 2.0"inch& 3.5" inch

3. High quality and competitive price

4. Quick delivery time

5. Best after-sales

Specification:

3 AXLE FLATBED CONTAINER TRAILER
DIMENSIONS
Tare weight 7000kg
Size 13000mm*2500mm*1650mm
Payload 30-80T
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam 16# channel steel(Q235)
Cross member 10# channel steel(Q235)
Floor 3mm checkered plate
Axle 3 axle FUWA brand 13T
Suspension Mechanical suspension
Leaf spring 10pcs*90*13mm
Tire 12R22.5 double star brand 12pcs
Wheel rim 9.0-22.5 better brand 12pcs
Kingpin Yunhe brand 2” bolt-in king pin
Landing gear Zhongxing brand two-speed, manual operating ,heavy duty landing gear 28T
Twist lock 12pcs
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Light LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories two standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery 20 workdays after we received 30% of contract value T/T down payment.

20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material

Flatbed container trailers Models.

20&40ft Flatbed trailer with tri axles FUWA or BPW truck trailer steel material

Welcome to visit our factory!
