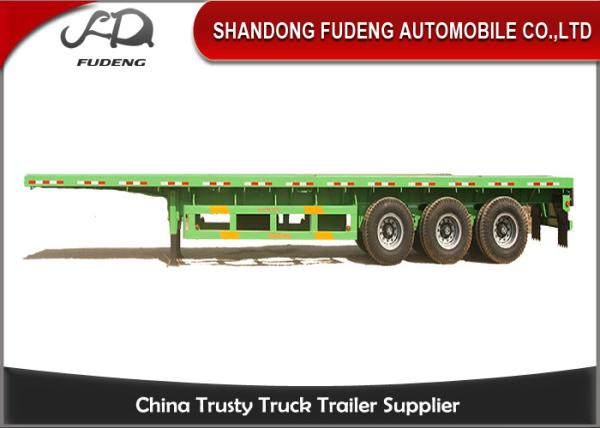

3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension
3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension
3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension
3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1704 Flatbed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Payment Terms :
L/C, T/T or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Price :
negotiation
Material :
Carbon Steel
Usage :
Transport 20ft and 40ft container, or bulk cargo
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-50 ton available
Axle :
Normally 3
King Pin :
2" (50mm) or 3.5" (90mm)
Description

3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension

Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

  • 40ft container, 20ft container
  • Flat steel
  • Coiled steel
  • Channel steel
  • Rebar
  • Lumber
  • Pipe
  • Pre-cast concrete
  • Building materials
  • Other products that can be strapped down to a flat deck.

Specifications
Dimension 12.5m×2.5m×1.5m (Outside)
Payload 35T-75T
Tare weight About 8.5T
Twist lock 4, 8, 12 units or customized
Chassis
Frame Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor The Thickness is 3-8 mm flat bed
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/air suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS Optional
Accessories One standard tool box
Voltage 24V

Specifications can choose:

  • High Quality Body with side walls
  • BPW, SAF or Certificated Chinese brand Axles
  • ABS and EBS brake system
  • JOST or Chinese brand parking leg and king pin
  • Air and Mechanical Suspension
  • Strength Chassis Construction
  • Front Axle Lifting
  • Steel or Aluminum Rims

3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension

3 axle 40ft container 60Ton flatbed trailer price with mechanical suspension
