100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer
100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer
100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer
100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
SDFDZH040831
Certification :
CCC CE ISO
Place of Origin :
Shandong China(Mainland)
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 Units Per Month
Delivery Time :
20 - 30 work work days after deposit
Packaging Details :
By Bulk Cargo Ship, Ro-ro Ship
Max Payload :
100TON
Axle :
BPW
Landing gear :
JOST
Material :
High strength steel
Suspension :
Air or Mechanical
Tyre :
12R22.5
Floor :
5 mm checked steel
Kingpin :
2.0'' or 3.5''
Price :
negotiation
Description

100 ton heavy equipment transportation truck trailer 50 ton lowbed trailer BPW axle for sale

Main featurer

1.The cargo table is arched ,to avoiding concentrated force and of sound construction .Compared with other company :Their cargo table is flat that easy to concave and beam damage

2.Main structure:The main steel structure adopts Q345 high strength structural steel .Compared with the channel,our main steel comes with high strength, strong bearing capacity, not easy to deformation and long service life .

3.Reinforcement design :the suspension system of our lowbed semi-trailer, will be designed on the strengthening device and between the beam and side beam which can greatly improve the torsional performance of the container and to prolong service life.

Specification

Dimensions
Tare Weight 10000kg
Payload 60000kg
Total Weight 50000-100000kg
Overall Length 16000mm
Overall Width 3000mm
Overall Height 2900mm
Specifications
Main Chassis One piece chassis fabricated of special steel
Axels Square beam 16T axels, (Five Years Warranty on the Axel Beams)
Suspension Heavy duty mechanical suspension system (BPW type)
King Pin Trailer is equipped with 2” or 3.5” king pin (as requested)
Tyres Trailer supplied with 12 tyres plus 1 spare wheel
Braking system German made WABCO plus mechanical handbrake system
load sensing device
Air actuated automatic works
Painting treatment of sand blasting
Two layers of primer
two layers of final coating of colour
Electrical Trailer equipped with 24 volts full electrical circuit, with rear and side lamps, reflectors and license plate light

All trailers supplied with 1200 Litres Diesel Tank, One Water Tank, Spare wheel carrier for two tyres & tool box

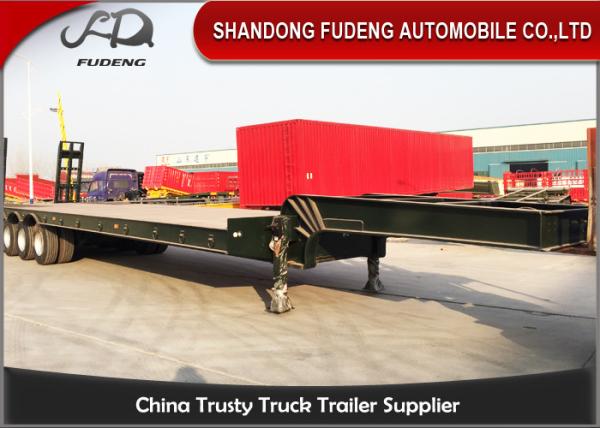

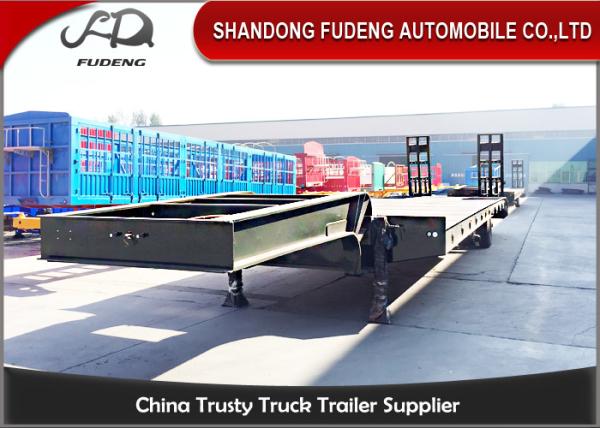

4 axle 100ton low bed semi trailer


100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer

100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer

1.Manufacturer direct sale , quality guaranteed, low price.
Except standard products we can also produce products base on customers' requirement.

2.We have our own factory,We we are the manufacturer of various trailers .
We can offer you the high quality but the best price.

Welcome to visit our factory!
