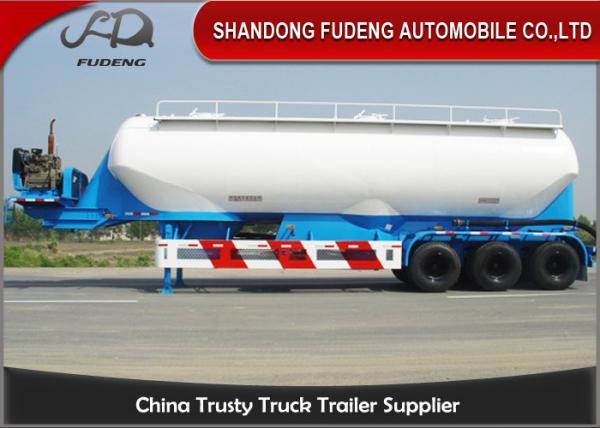

Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower
Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower
Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower
Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower
Specifications
Brand Name :
Fudeng
Model Number :
SDFD!&
Certification :
CE, ISO9001, CCC
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C or negotiate
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon steel or aluminum
Color :
Fudeng logo or as customer's request
Volume :
30cbm to 80cbm customized
Suspension :
Mechanical or air suspension
Axle :
2 or 3 or 4
Usage :
Transport cement, powder, silos
Landing gear :
Double speed
Shape :
V shape or W shape
Description

Vertical type three axles Bulk powder Tanker Trailer, dry van trailer with blower

Widely praised as the industry’s most cement dry bulk trailers, Fudeng Trailer offers vessel integrity, low tare weights, high efficiency, long wear, easy cleanout and Fudeng Trailer craftsmanship throughout, to keep your operation running at maximum efficiency.

We can provide carbon steel or aluminum tank trailer.

Our details:

  1. We use Wuhu Fuda 12 cbm double cylinder compressor and Weichai 4102 diesel engine. It has been found that the combination of these two is more efficient.
  2. Reasonable structure and refined parts make it reliable in use and the assemblage function makes the transport and installation much easier.
  3. Discharge-cement time is 22-30 minutes without remaining cement, which is much more advanced than our industry.
  4. We do strict pressure testing for every tank and operational testing for every compressor and diesel engine.

Bulk Cement Tank Trailer Specifications
Tank Body
Shape Vertical shape customized
Dimension 13000*3990*2500mm
Capacity 30 cbm
Tanker Body 5mm Q345B
End Plate 6mm Q345B
Manhole Cover 2 or 3 pieces
Air Compressor Wuhu Fuda 12 cbm double-cylinder, Working pressure 0.2 MPa, Testing pressure 0.3 MPa
Diesel Engine Weichai 4102 or 4105
Chassis
Main Beams T700 high- insensitive steel Upper plate is 14mm and lower is 16mm,middle is 8mm. height is 500 mm
Axle 3 axles, 13T American type, 16T brake block, Fuwa brand
Landing Gear Standard 28T Jost brand
King Pin 5.0(2 inch)/9.0(3.5 inch) bolt Jost brand
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 air chamber, 3 axles synchronization Webco brand
Rim 9.00-22.5/8.00-22.5/8.5-22.5
Tire 11.00R22.5/12.00R22.5 Triangle brand
ABS KEMI Optional
Accessories 2 standard tool box Optional
Spare Tire Rack 2 Optional
Radiator Optional
Packing and shipping
Pattern According to customer’s request
Painting Complete Chassis sand blasting to clean rust, 2 coat of anti corrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower

Vertical Type Three Axles Bulk Powder Semi Tanker Trailer , Dry Van Trailer With Blower
