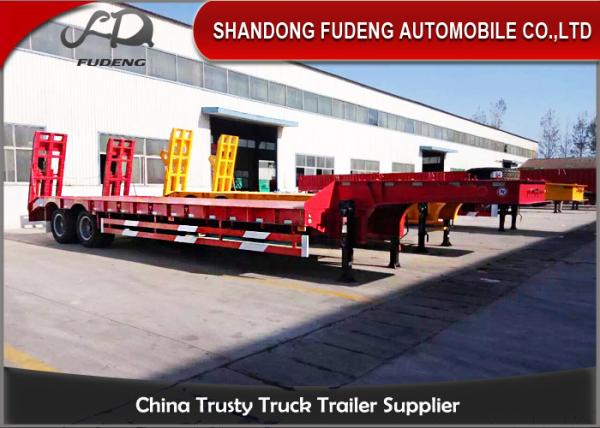

2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder
2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder
2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder
2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder
Specifications
Brand Name :
Fudeng
Model Number :
SDFD1702 low bed trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Material :
Carbon Steel
Usage :
Transport heavy machine
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
30-100 ton available
Axle :
2 or 3 or 4
Landing gear :
Standard 28 Ton
Tire :
double tire or super single tire
Description

2 axles 30 ton low load trailer spring suspension with spring ladder

Low Loader range has been designed primarily for heavy construction machines, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.

Our lowboy trailers chassis and gooseneck are constructed with a combination of high tensile T 700 steel and high tensile Q345B steel. Look at any lowboy trailers that have been on the road for long and you will quickly realize that the cross-members take a beating. For this reason we have elected to use high tensile steel cross-members as opposed to the industry standard of mild Grade. The high tensile cross-members provide you with long lasting rugged durability in a high abuse area. This reliability is something that Fudeng customers have come to expect.


Specification
Name Widely used transport excavator 2 axles lowbed semi trailer
Overall dimension(mm) 12400x3000x2900
Loading capacity 40T
Axles No. of axles: 2
BPW/FUWA Brand Axle-load: 12200kg
Wheel base 8400+1300(mm)
Tires Specification: 8.25R20 12PR
No. of tires: 8 pcs
Kerb weight(kg) 7000
Main beam Q345Steel, The height of the beam is500mm,upper plate is 14mm, bottom plate is 16mm,middle plate is 8mm
Electrical 24V
Light LED light
Suspension Heavy duty leafspring
Pieces of leafspring 8/10 pcs
Tool box 1 standard tool box
Color and logo Depends on the customer's requirements


2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder

2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder

2 Axles 30 Ton Low Load Trailer Spring Suspension With Spring Ladder


Welcome to contact us to get more information.
