Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers
Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers
Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers
Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers
Specifications
Brand Name :
FUDENG Brand Low bed trailer
Model Number :
Lowbed trailer/Lowboy trailers
Certification :
CE , ISO,ADR/DOT
Place of Origin :
Shandong China(Mainland)
MOQ :
One Unit Low bed trailers
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units Per Month
Delivery Time :
15 work days after deposit
Packaging Details :
Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
Axles :
Fuwa/BPW/Chinese brand
Suspension :
Mechanical suspension and Air suspension
Load capacity :
60Tons
Color :
Customized
Size :
13mx3mx1.5m Or Customized
King Pin :
2.0Inch Or 3.5Inch
Landing Gear :
JOST Brand 28 Tons Standard
Material :
Q345B carbon steel
Description

Heavy Duty Truck transportation 100 ton Lowbed Semi Trailer Trucks And Trailers

Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.

Features of Low Bed Trailers:

Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
Lower height (hydraulic and air suspension be able to adjust height)
Detachable gooseneck is an option
Small turning radius, up to 55° steering angle
Both automatically and manually all wheels steering
Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
Side bracket is an option(for increase overall width), removable and swinging

LOW BED TRAILER Specification:

DIMENSIONS
Tare Weight 12000kg
Payload 32200kg
Total Weight 60000kg
Dimension 13000*2495*1750mm Or customized
Body 10830*2300*600
Wheel Track 1840/1840/1840mm
Wheelbase 5700mm+1310mm+1310 mm
Axle Weight 24000(three axle combined)
STANDARD SPECIFICATION
Main Frame

Heavy duty and extra durability designed;Opting for high tensile steel Q345B

welded by automatic Submerged-Arc processes 480mm Height I beam.

Top Flange 16mm,width 140mm;Middle Flange 8mm;Bottom Flange 16mm,width

140mm
Floor Steel Sheet 3mm thickness
Axle Three Units of FUWA(brand) 13Ton axle
Suspension A Couple of FUWA(brand) mechanical Tri-axle suspension
Leaf Spring 8/8/8,-/10/10/10
King Pin One unit of 2 SAE standard welded kingpin
Landing Gear Two-speed,manual operation,heavy duty landing gear
Wheel Rim Twelve units of 8.25R22.5 rim
Tyre Twelve units of 11.00-2012PR 11.00R2012PR 12R22.512PR tubeless tyre
Twist Lock

Twelve nos in total-four nos are fasten mode,four nos are up/down mode,of ISO

standard twist lock for 2×20ft;1×40ft container,the central locks can be laid down.
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System

A system with emergency brake and parking brake;

Dual line-air brake, piggy back spring on all axles;

Two unit of WABCO RE 6 relay valve;Four units of T30/30 spring brake chamber;

Two units of T30 brake chamber,Two unit of 40L air tank;Two units of standard

copper air-connector.
Electrical System

One unit of JAEGER POWAY,24V 7-pin ISO 1185 standard socket;Tail lamp with turn signal,brake light & reflector,

Side lamp etc.One set of 6-core standard Cable.
Painting

Sand blasting processing on rust–proof protection

One coat of anticorrosive primer

two coats of finish urethane paint

Color as customer choice
Accessory One box with a set of standard trailer tool

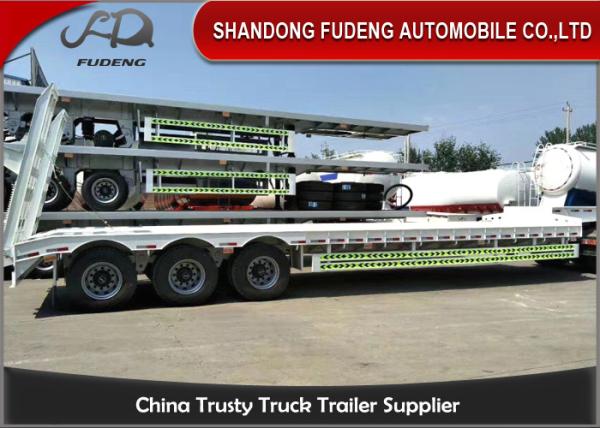

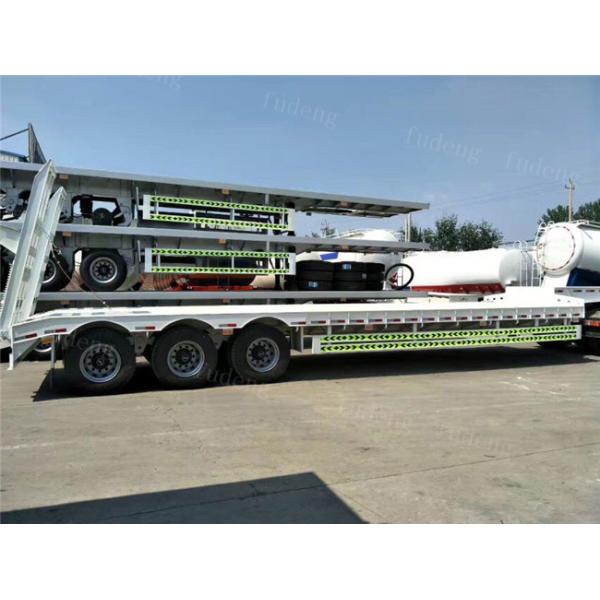

3 Axles low bed semi trailers.

Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers

80Tons Low bed semi trailers

Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers
