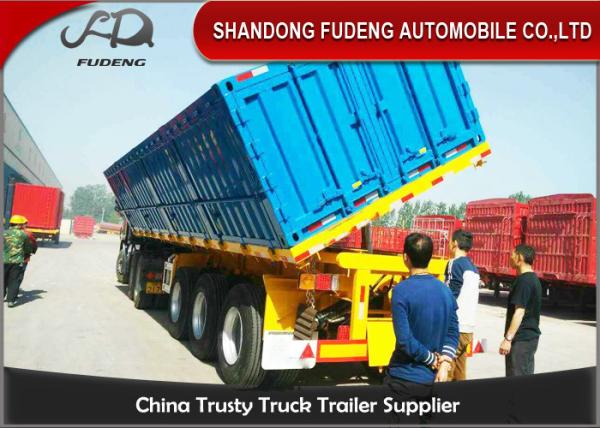

3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System
3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System
3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System
3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System
Specifications
Brand Name :
Fudeng
Model Number :
FDZH080705
Certification :
ISO,BV,SGS,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
30 working days
Packaging Details :
Bulk cargo or container
Volume :
Optional
Abs :
With
Tire :
Triangle, Double Coin
Nody Thickness :
Bottom 8mm, Side 6mm
Brake system :
WEABCO
Axle :
BPW , L1 Brand Optional
Lifting system :
HYVA brand
Condition :
New side dump trailer
Payload :
100ton
Landing Gear :
JOST brand
Description

3 Axle 60CBM 100Ton Side Dump Semi Trailer Use to Coal Mine , Dump Trailer With HYVA Lifting system

Dump semi trailers are mainly used to transport goods in bulk and can spread (such as earth, stone, and farmers crops, etc.), can also carry pieces of goods. So the dump semi trailers service mainly in building materials factory, mine, construction, etc. In order to improve the transportation productivity, in civil engineering, dump semi trailers have the advantages of high mechanical and unloading mechanization, can greatly shorten the handling time, improve the efficiency of transportation , save labor and reduce labor intensity.

Implement all transport mechanization. The quality of the dump semi trailers utilization coefficient is low, suitable for short-distance transport, in order to give full play to its characteristics of unloading mechanization.

Specification

Specification
Dimension 13.0m×2.5m×2.0m (External)
Payload 60 cbm
Tare weight About 12.0T
Loading Weight 100T
Usage Mainly appropriate for the transportation of Silicon, sand,gravels and building materials
Hydraulic system Standard 150 lifting
Main beam The height of the beam is 500mm,Upper plate:20mm,Down plate:20mm,Middle plate:14mm
Thickness of the bottom plate 8 mm
Thickness of side plate 6 mm
Tailgate One-piece tailgate with upper articulation, safety lock system
Axle 3 axles 13T,16T brake pads
Landing Gear 28T
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer
Braking System 3 axle Synchronous valve, 6 Big Air Chamber
Tyre 11.00R20,12 unites
Spare wheel carrier Two
Tool box Two
Voltage 24V
Lights& Reflectors Rear light, rear reflectors, turn indicative light, side reflector, fog lamp, number plate light
Color Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO

COMPANY INTRODUCTION
√ Manufacturer, more than 20yrs professional experience
√ Small order available
√ CCC & ISO 90001 agreement
√ Custom build according to customer requirements or special needs.
√ Provide oversea after - sales service

Details

3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System

3 Axle 60CBM 100Ton Side Dump Semi Trailer Use To Coal Mine With HYVA Lifting System

We can offer the following services like repairs, parts, export registrations, loading material or trucks on trucks or in trailers, dismantling trucks and loading in containers. Transport to the port or other companies, shipping worldwide etc.

If you wish to use our extensive loading, transportation or shipment options than please indicate this immediately, so we can offer you at competitive rates.

If you have any questions about our services or how we can help you achieve your goals, please contact us today!
