Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer
Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer
Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer
Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer
Specifications
Brand Name :
Fudeng Brand
Model Number :
Low bed semi trailer
Certification :
CE,CCC,ISO
Place of Origin :
Shandong,China
MOQ :
One Unit Low bed semi trailer
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800Units per month
Delivery Time :
25-40 days after deposit
Packaging Details :
Nude or Wax
Product name :
Low bed semi trailer
Material :
Q345B Carbon steel
Suspension :
Mechanical Suspension or Air Suspension
Landing Gear :
Jost Brand
King pin :
2.0 or 3.5inch
Leaf Spring :
90mm*16mm*10 Layer
Transport :
Heavy Duty Equipment
Color :
Green,Blue,Red,White or Customer optional
Description

FUWA Axles Lowboy Semi Trailer For Heavy Duty Equipment Transport Low Loader Trailer

Fudeng Trailer as manufacurer for semi trailer ,also can provide Sinotruck HOWO brand truck for Clients ,We can

Provide all kinds of semi trailer for customers ,Like flatbed semi trailer ,Low bed trailer ,tipper semi trailer or others.Our factory can

provide with Customized service for you , The Specifications can be design for clients .

1.Our Standard dimension for Low bed trailer is 13 Meters , If you want to transport long heavy goods ,We can Extension the length for you ;

2.The Ladder Have Mechancial Ladder / Hydraulic Ladder / Hydraulic Folding Ladder . you can choose it by yourself ;

3.The cargo loading length is 9 Meters ,can loading commonly Excavator ;

Specifications for Lowboy semi trailer

Specification
Body
Dimension 13000×3000×1750mm
The rated load 50-70T
Bottom Platform 4 mm Checkered Thickness
Main beam Welding design “I” 260mm side beam , Main beam height 500mm
Frame beam Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm;
Ramp Mechanical ladder
Chassis
Axle 3 axles
Landing Gear 28T lifting capacity with two speed Jost brand
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf spring 90mm(W)*16mm(T)*10 Layer
Braking System Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve
Tyre 12r22.5 * 12 pcs
Accessories One standard tool box
Spare tire rack One unit

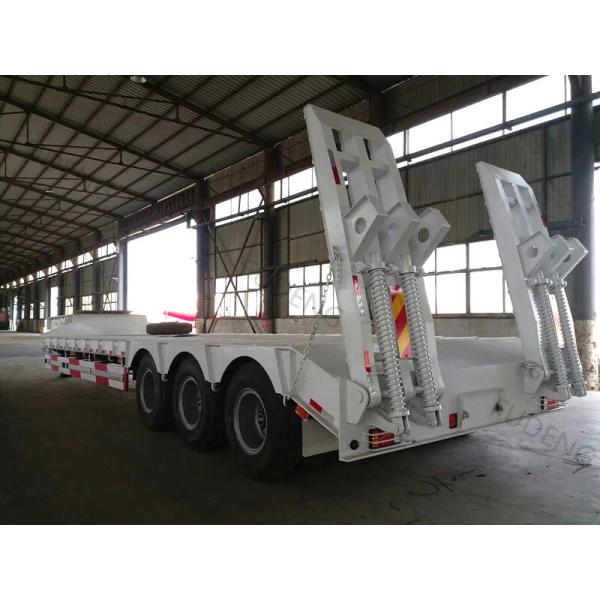

3 Axles Low bed semi trailer with Mechanical Ladder for sale

Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer


This is our Standard Specifications ,The Dimension and Suspension or other Specifications can be Customized , We can provide Customized

service for you , If you have any requirement for low bed trailer ,Welcome to ask more information to us ! We can design for you .

Shipping terms

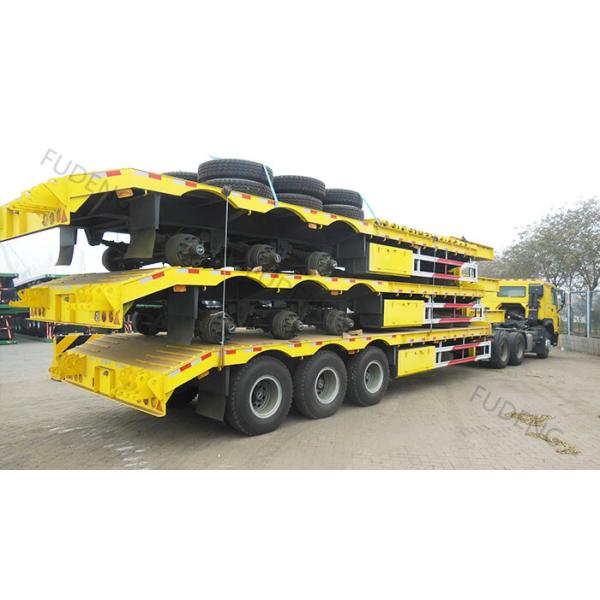

Shipping by Bulk cargo ,Two or three units Stack together ,and it can save the Shipping Cost for you , In order to promise the safety for transport

We also can arrangment two units Stack together .

Mechanical 4mm Checkered 70T Q345B Lowboy Semi Trailer

Before Shipping we can Wax careful for you ,and We can Removed the Axles , put it on the trailer .

Our Service

1.For trailer ,Our factory can provide with Customized service for you ;

2.For tractor head ,We can provide Sinotruck HOWO brand truck for you as well ;

3.If you have any questions please feel free to contact us , we can reply you as soon as possible ;

4.If you place an order from us ,We can apply to the Spare parts for you ;

Other Products

1.Extension Flatbed semi trailer : If you transport Like rail ,Long goods ,We can provide Extension Flatbed semi trailer for you ;

2.Detachable Goosenek Low bed semi trailer : We can according to your requirement to design the dimension for you ;

3.Blade transport trailer : Blade transport trailer for Blade second transport ;

Welcome to visit our Factory anytime !
