Specifications
Brand Name :
Fudeng Brand
Model Number :
Side wall semi trailer
Certification :
CE,CCC,ISO
Place of Origin :
Shandong,China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800Units per month
Delivery Time :
25-30 Work days after deposit
Packaging Details :
Nude or Wax
Product Name :
Side wall semi trailer
Material :
Q345B Carbon steel
Landing Gear :
Jost Brand
Axles Brand :
FUWA/BPW/L1/FD
Suspension :
Mechanical Suspension or Air Suspension
King pin :
2.0 or 3.5 inch
Condition :
Optional condition
Leaf Spring :
90mm*16mm*10layer
Color :
Custmers optional
Transport :
Bulk cargo or container
Description

3 Axles 50Ton For Bulk Cargo Transport Dropside Cargo Trailer

Fudeng trailer as manufacturer for semi trailer can provide all kinds of semi trailer for Clients , and We also can provide Sinotruck

HOWO brand truck for Customers as well .

Side wall Semi trailer can transport Like sand , Bulk cargo ,and the grain and so on , and we Exported a lot of Side wall semi

trailer to Foreign ,Customers using Good and with Nice Feedback .

1. trailer Axles : We can provide FUWA /BPW/L1/FD Brand Axles for Clients , and We can choose the best Axles for Customers ;

2. Side wall : The side wall height can be Customized , We can according to your request to design ;

3. If you carry Livestock and other high goods We can addition the fence for you .

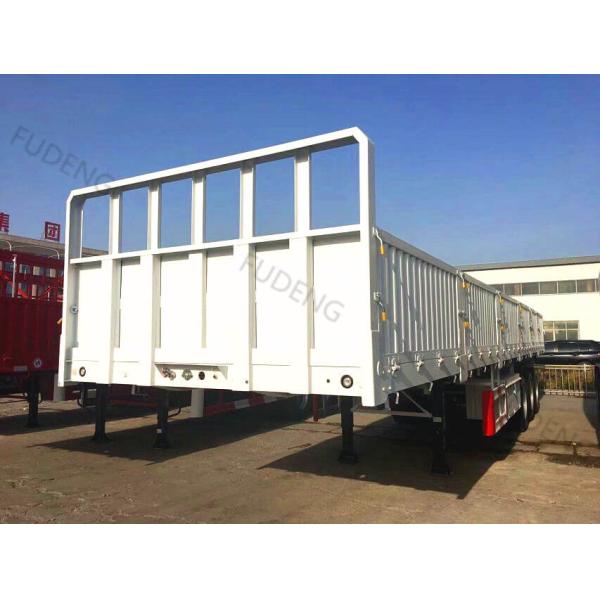

3 Axles 60cm Side wall cargo trailer for sale

Q345B Carbon Steel 3 Axles 50 Ton Dropside Cargo Trailer

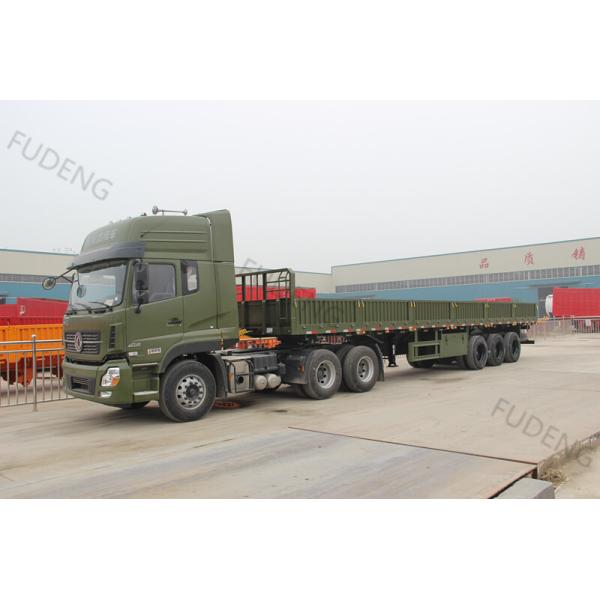

3 Axles 50tons dropside trailer for carry livestock

Q345B Carbon Steel 3 Axles 50 Ton Dropside Cargo Trailer

Specifications for side wall semi trailer

Specifications
Dimension 12.6m×2.6m×2.15m
Payload 40-60T
Side wall height 60cm
Tare weight About 7.8T
Twistlock 12 units
Chassis
Main beam Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam

Top Flange 14mm,width 140mm; Middle

Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm

Frame Floor The Thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10#Channel
Along beam 6#Channelx6
Axle 3 axles
Landing Gear 28T lifting capacity with two speed
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring 90mm(W)*16mm(T)*10 Layer

This is our Standard Specifications , and If you have other request for Specifications ,we can Customized for you as well .and if you are not

satisfied with the dimensions , we can design for you as well . our Standard dimension is 12.5m*2.5m*2.15m .

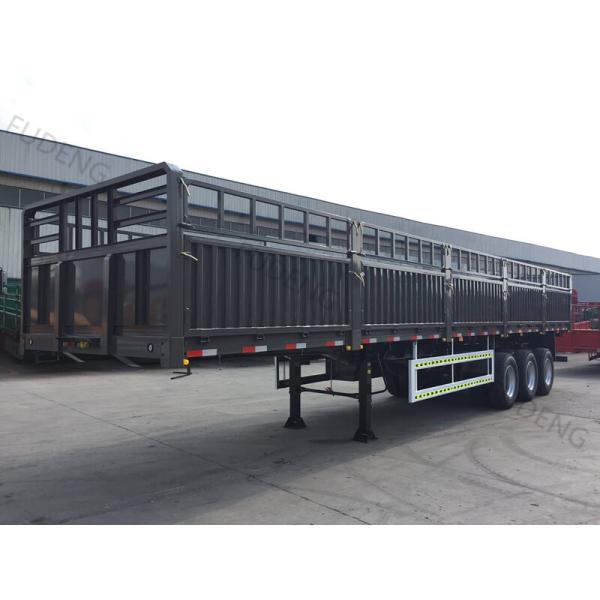

Q345B Carbon Steel 3 Axles 50 Ton Dropside Cargo Trailer

Shipping terms :

1.Shipping by Bulk cargo : can Removed the side wall , and two or three units Stack together ,can save the Shipping Cost for you ;

2.Shipping by 40/45HQ Container : If you want to choose Shipping 40/45HQ Container ,We need to design differrent side wall type for you ;

Other products:

Our company is manufacturer for semi trailer , We can provide all kinds of semi trailer for you , Like flatbed semi trailer ,Skeletons container

semi trailer ,Fence cargo trailer and so on , If you need truck , We also can provide Sinotruck for you as well .

1.Flatbed semi trailer : can carry 20/40ft container ;

2.Fence cargo trailer : if you transport the cattle the fence height can be Customized ;

3.Sinotruck HOWO brand tractor head : It can pulling all kinds of semi trailer , We can provide the competitive price for you ;

4.Sinotruck Dump truck: We can according to your transport goods to design the side wall and bottom thickness for you ;

Welcome to visit our factory !
