Specifications
Brand Name :
Fudeng
Model Number :
SDFD1710 Detachable gooseneck trailer
Certification :
CE, ISO, CCC, SGS, ADR
Place of Origin :
Shandong, China
MOQ :
One set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
25-40 days after 30% deposit
Packaging Details :
Paint and wax spraying
Product name :
Detachable Gooseneck low bed trailer
Usage :
Transport heavy equipment
Color :
White, yellow, red, green, blue customized
Pattern :
Fudeng logo or as customer's request
Suspension :
Mechanical or air suspension
Capacity :
50-100 ton available
Axle :
2 or 3 or 4
Condition :
New
Material :
carbon steel
Description

15 Meters 3 Axles Detachable Gooseneck Low Bed Semi Trailer 50-100 Tons Payload


Our advantages:

· Our compang is manufacturer for semi trailer ,We can provide all kinds of semi trailer for you ,We also can provide Special

trailer for you ;

· The trailer's dimension can be Customized accord with your requirement ;

· Detachable Gooseneck Low bed semi trailer operate is easy for Customers .When it production Successful ,Welcome to visit

our factory ;

Use Detachable Gooseneck low bed trailer to transport Heavy Duty Equipment or long goods will convenient than common low

bed trailer ,and the Specifications is higher than common one .

1.The engine use : you can open the engine ,When it start ,you can contol the valve on the trailer ;

2.and then you can control the Gooseneck down ;

3.You can use tractor head pulling the gooseneck and then you can carry the goods on the trailer front the trailer ;

Detachable Gooseneck Trailers are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment.

Ease and safety of loading are the primary features. Loading over the rear of a trailer increases in danger as the equipment

gets heavier, taller and wider. The higher weights and higher center of gravity on today’s supersized construction, agricultural,

and forestry equipment demand that both the loading height and transport height be significantly lower than our drop deck

flatbed trailers.

Our detachable gooseneck trailers lineup is offered with capacities from 35 to 100 tons 2 to 4 axle configurations. We offer

spring and air ride suspensions as well as many other customizable options.

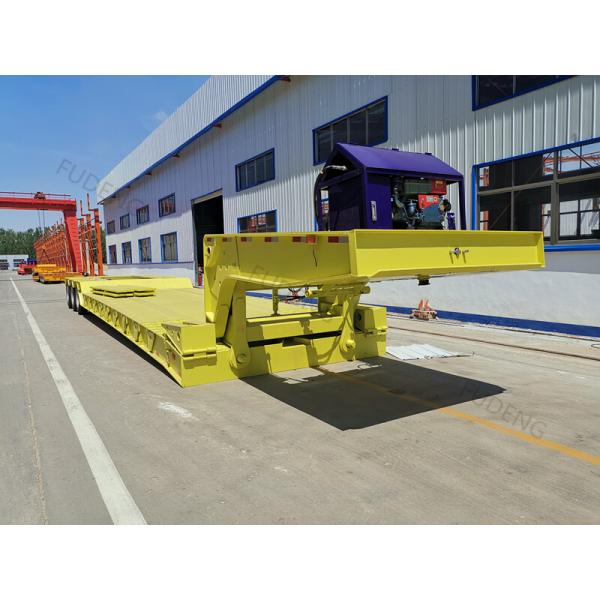

Heavy Equipment 15M 3 Axle Detachable Gooseneck Trailer

Specifications of detachable gooseneck trailer
Frame Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam Upper plate is 20 mm and lower is 20mm, middle is double 10mm plate, height is 450 mm
Axle 2 axles 16T America type JII specially designed brand
Ramp Front spring ramp
Hydraulic System 15P Jianye brand
King Pin 3.5 (90mm) inch bolt-in king pin JOST brand
Suspension Mechanical suspension
Leaf Spring 90mm(W)*14mm(T)*10 Layer
Pneumatic Braking System 4 relay valve; Spring brake chamber WABCO Brand
Rim 6.5-20 8pcs
Tire 8.25R20, 8 pcs Triangle brand
Accessories One standard tool box
Voltage

24V,7 pin socket, one set 6-core standard Cable Light

Tail lamp with turn signal, brake light & reflector,

side lamp etc

Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo or container

Heavy Equipment 15M 3 Axle Detachable Gooseneck Trailer

Other Goods:

1.Low bed semi trailer :Without Diesel engine , you can carry Heavy Duty Equipement Like Excavator , and the dimension all can be Customized ;

2.Flatbed trailer :Carry 20ft 40ft 45ft Container is enough ;

3.HOWO brand Dump truck : We can according to your reques to design the truck for you ,according to your transport goods and tonnage ;

If you are interested in other products please feel free to contact us ,We can recommend the best type for you ;

Welcome to Visit our factory anytime !
