Specifications
Brand Name :
FUDENG
Model Number :
Capacity Of 3 Axel Tipper Trailer
Certification :
CE
Place of Origin :
Shandong Province China(Mainland)
MOQ :
One Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 Set Per Unit
Delivery Time :
15-20 work Days
Packaging Details :
Nude or Wax
Product Name :
Tipper Semi Trailer
Suspension :
Mechanical Suspension Air Suspension
Leaf Spring :
90mm*16(thickness)*10Layer
King Pin :
2'(50mm) Or 3.5'(90mm)
Capacity :
50-60 Tons
Landing Gear :
28 Tons Jost Brand
Material :
Q345B Carbon Steel
Tire :
11.00R20 12R22.5 315/80R22.5 385/65R22.5
Axles Brand :
FUWA/BPW/L1/FD
Description

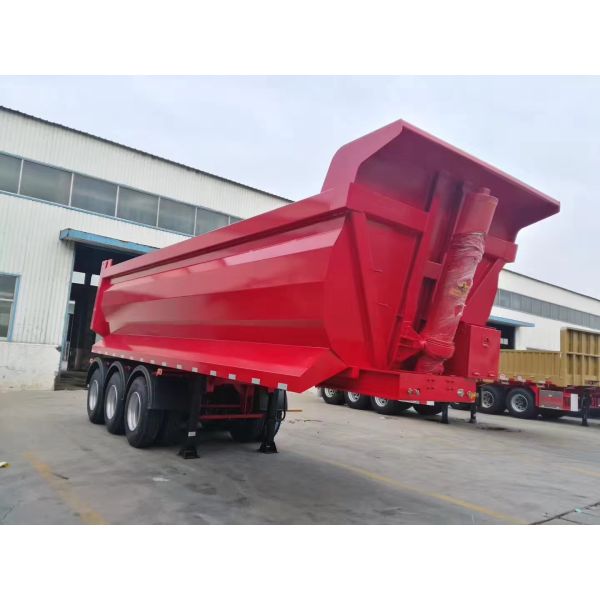

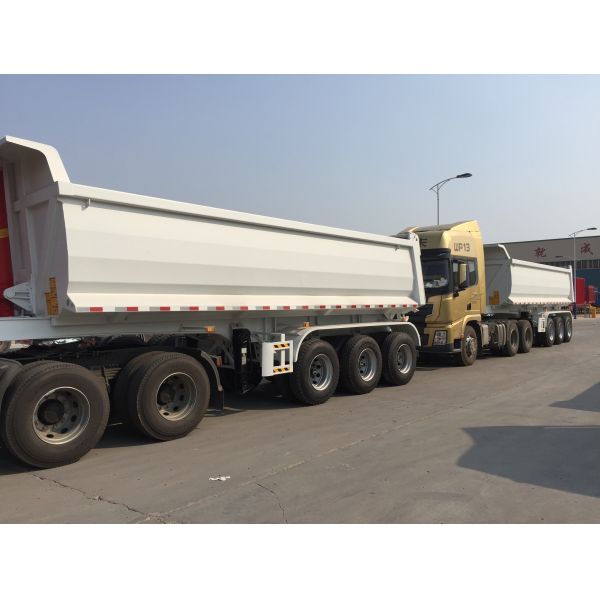

3 Axles 30 Tons 25-30 Cubic Meters Transport Stone Tipper Semi Trailer For Slae

Our factory as manufacturer for semi trailer , We can provide all kinds of semi trailer for you , and our factory provide Customized service for you , About tipper semi trailer we Exported many country before ,adapt the rough road condition ,

we can design Strong trailer for customers ;

1. The Trailer's dimensions can be customized ;

2. We can according to your transport tonnage design side wall thickness and bottom thickness ;

3. We use high quality Hyva oil cylinder ,the Lift Ability is Good than common;

3 Axles 25 Cubic Meters U-Shape Tipper Semi Trailer For Sale

3Axles 30 Tons Dump Semi Trailer 25-30 Cubic Meters Transport Stone Tipper

3 Axles 30 Cubic Meters Can transport 60 Tons Dump Trailer for sale

3Axles 30 Tons Dump Semi Trailer 25-30 Cubic Meters Transport Stone Tipper

Tipper Trailer's Configurations As Follows:

1. Shape for tipper trailer can be design according to your transport tonnage and cubic meters;

2. The lifting System use High quality HYVA oil cylinder ;

3. trailer's body welding Good for clients ;

Specifications
Tank Body
Shape Square shape
Dimension 10.3m*2.5m*3.3m (Outside)
Box Dimension 9.6m*2.3m*1.8m 40Cubic or can be Customized
Payload 60T
Tare weight About 12T
Lifting system HYVA Brand
Chassis
Frame Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam(Heavy duty ) Upper and lower plate is 14mm and 16mm, Double middle is 8 mm.Height is 500 mm
Steel thickness Bottom plate :8mm Side plate:8mm
Axle 3 axles, 13T 16ton brake pads
Landing Gear 28T lifting capacity with two speed
King Pin 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension
Leaf Spring(Strength) 90mm(W)*16mm(T)*10 Layer

Details for Tipper Trailer :

1. We can according to your requirement to design 'U'Shape and Square shape;

2. Rear Door can be Open by itself when the Box tilt;

3. When Offloading the Rear Door will open by itself So the Support it's Very Strong ;

4. The oil cylinder ability of lifting is very good ;

Shipping Terms:

We can provide Shipping by Bulk cargo / flat rack , and before shipping we can wax carefully avoid rust for tipper trailer ;

Other Products:

Other products Like Flatbed Semi Trailer / Low Bed Semi Trailer / Oil Tank Trailer and So on .If you are interested in other products please feel

free to Contact me,I can recommend the best type for you ;

1. Flatbed semi trailer :Carry 20/40/45ft Container ;

2. Low bed semi trailer : Carry Heavy Duty Equipment ;

3. Oil Tank trailer : The capacity can be design , carry crude oil / diesel / petrol ;

Welcome to ask more information for our products.
