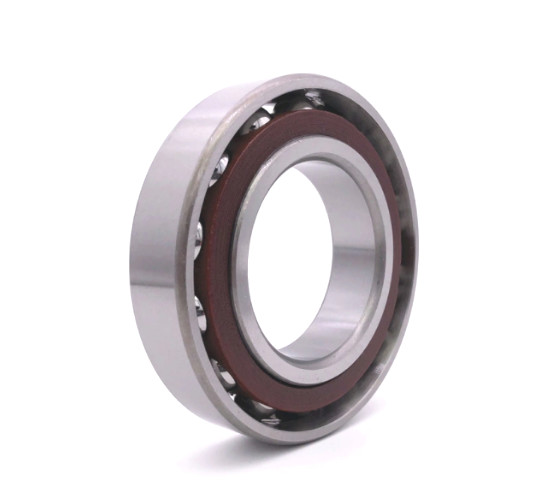

ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm
Specifications
Brand Name :
DCM
Model Number :
OPEN，-Z，-RS，-RZ，-RSR
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C2 C3 C4 C5 C9
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Lubrication :
Grease or oil
Cage :
Steel Cage,Nylon,Brass
Feature :
Long Life,High Speed,low noise
Description

ID 70mm Angular Contact Ball Bearings P5 P4 P2 V1 V2 V3 V4 High Precision Low Noise Low Vibration High Speed Long Life

Features

Angular contact ball bearings are the structural variants of deep groove ball bearings, and mainly bear combined radial and axial loads. They are divided into C, AC, and B structures according to the magnitude of the axial load. It is characterized by small friction coefficient, high limit speed, and the high manufacturing accuracy, and is widely used in various precision machineries.

To bear predominate radial load and subsidiary axial load from both directions, lower cost and price, low running resistance, high limiting speed, possible to reach higher rotating precision and pretty low vibration level, in addition, possible to make into sealing structure.

Product Specification

ABEC-1 Skf Angular Contact Ball Bearing , Z3 Z4 angular thrust bearing 70mm

Basic dimension Basic load rating Limited rotation speed Weight Installation dimension Bearing code
d D B r r1 Cr Cor Grease Oil Wt da min Da max ra max New code
mm mm mm min min kN kN r/min r/min kg mm mm mm
70 110 20 1.1 0.6 48.3 43.4 8100 10000 0.585 78 102 1 7014C
110 20 1.1 0.6 45.7 41.3 6700 9500 0.584 78 102 1 7014AC
110 20 1.1 0.6 39.4 35.9 5200 6300 0.682 78 102 1 7014B
125 24 1.5 0.6 76.1 64 7600 9900 1.11 79 116 1.5 7214C
125 24 1.5 0.6 72.4 61 4800 5900 1.11 79 116 1.5 7214AC
125 24 1.5 1 63 53.5 4300 5300 1.22 79 116 1.5 7214B
150 35 2.1 1.1 134 101 6700 9000 2.56 81 139 2 7314C
150 35 2.1 1.1 129 96.7 4300 5300 2.56 81 139 2 7314AC
150 35 2.1 1.1 114 86.3 3900 4800 2.93 81 139 2 7314B


Application

Electric motors

machine tools

automobiles

precise devices

home ppliances

chemical machineries

general machineries

agricultural machineries
