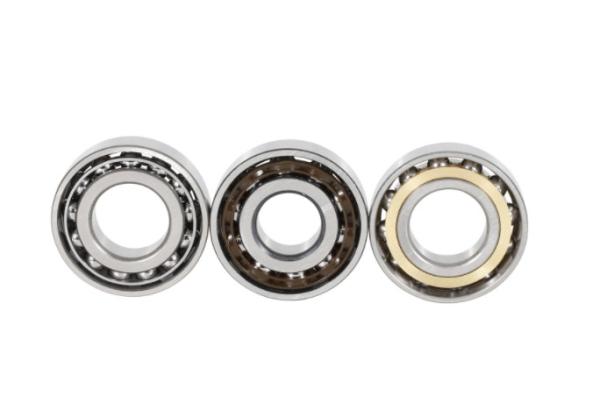

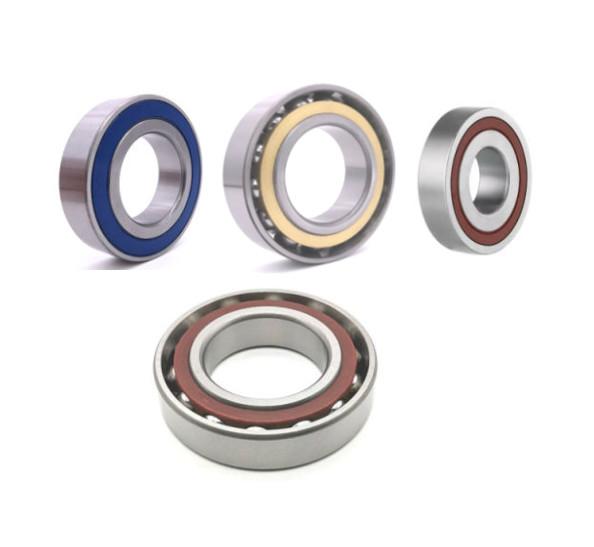

Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm
Specifications
Brand Name :
DCM
Model Number :
OPEN，-Z，-RS，-RZ，-RSR
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C2 C3 C4 C5 C9
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Lubrication :
Grease or oil
Cage :
Steel Cage,Nylon,Brass
Feature :
Long Life,High Speed,low noise
Description

ID 45mm Angular Contact Ball Bearings P5 P4 P2 V1 V2 V3 V4 High Precision Low Noise Low Vibration High Speed Long Life

Features

Angular contact ball bearings are the structural variants of deep groove ball bearings, and mainly bear combined radial and axial loads. They are divided into C, AC, and B structures according to the magnitude of the axial load. It is characterized by small friction coefficient, high limit speed, and the high manufacturing accuracy, and is widely used in various precision machineries.

To bear predominate radial load and subsidiary axial load from both directions, lower cost and price, low running resistance, high limiting speed, possible to reach higher rotating precision and pretty low vibration level, in addition, possible to make into sealing structure.

Product Specification

Long Life Angular Contact Ball Bearings , Z3 ABEC-1 miniature ball bearing 45mm

Basic dimension Basic load rating Limited rotation speed Weight Installation dimension Bearing code
d D B r r1 Cr Cor Grease Oil Wt da min Da max ra max New code
mm mm mm min min kN kN r/min r/min kg mm mm mm
45 90 23 1.5 1 44.7 30.5 6500 8000 0.717 48 82 1.5 7308B
75 16 1 0.3 25.9 20.4 12000 17000 0.237 51 69 1 7009C
75 16 1 0.3 24.5 19.4 10500 14000 0.237 51 69 1 7009AC
75 16 1 0.3 21.2 16.9 7800 9900 0.271 51 69 1 7009B
85 19 1.1 0.6 40.5 29.5 11000 15000 0.418 52 78 1 7209C
85 19 1.1 0.6 38.6 28.2 7200 8900 0.418 52 78 1 7209AC
85 19 1.1 0.6 33.9 24.9 6500 8000 0.467 52 78 1 7209B
100 25 1.5 1 64.1 43.2 10500 13000 0.826 53 92 1.5 7309C
100 25 1.5 1 61.7 41.6 6500 8000 0.825 53 92 1.5 7309AC
100 25 1.5 1 55 37.2 5900 7200 0.936 53 92 1.5 7309B

Application

Electric motors

machine tools

automobiles

precise devices

home ppliances

chemical machineries

general machineries

agricultural machineries
