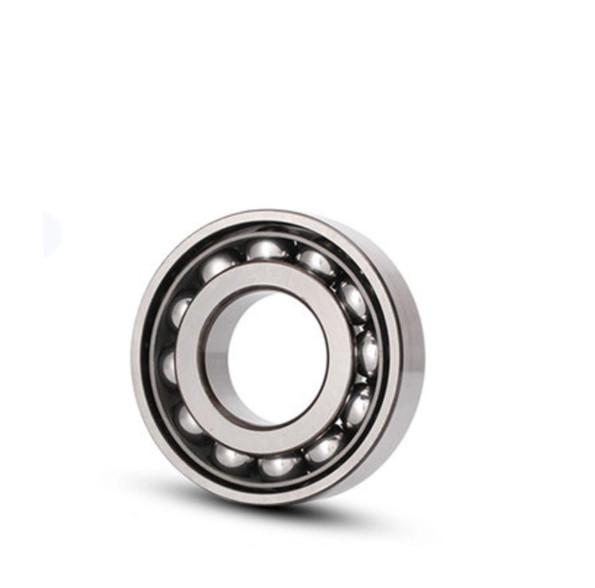

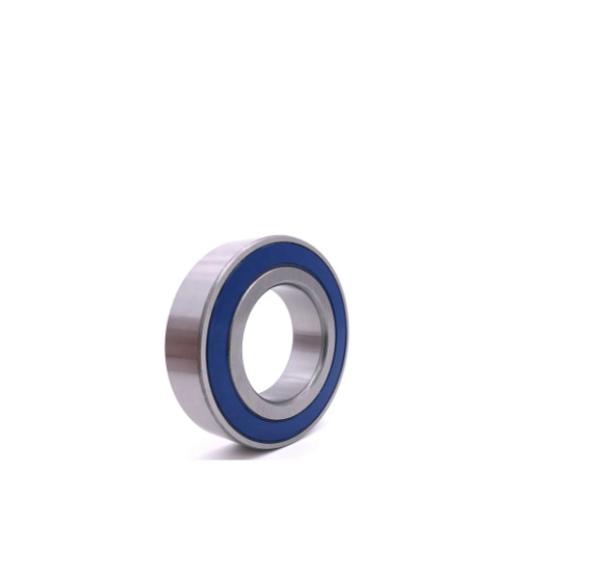

miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance
Specifications
Brand Name :
DCM
Model Number :
OPEN，-Z，-RS，-RZ，-RSR
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C2 C3 C4 C5 C9
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Lubrication :
Grease or oil
Cage :
Steel Cage,Nylon,Brass
Feature :
Long Life,High Speed,low noise
Description

ID 85mm Angular Contact Ball Bearings P5 P4 P2 V1 V2 V3 V4 High Precision Low Noise Low Vibration High Speed Long Life

Features

Angular contact ball bearings are the structural variants of deep groove ball bearings, and mainly bear combined radial and axial loads. They are divided into C, AC, and B structures according to the magnitude of the axial load. It is characterized by small friction coefficient, high limit speed, and the high manufacturing accuracy, and is widely used in various precision machineries.

To bear predominate radial load and subsidiary axial load from both directions, lower cost and price, low running resistance, high limiting speed, possible to reach higher rotating precision and pretty low vibration level, in addition, possible to make into sealing structure.

Product Specification

miniature Single Row Angular Contact Bearing ID 85mm C5 C9 Clearance

Basic dimension Basic load rating Limited rotation speed Weight Installation dimension Bearing code
d D B r r1 Cr Cor Grease Oil Wt da min Da max ra max New code
mm mm mm min min kN kN r/min r/min kg mm mm mm
85 130 22 1.1 0.6 60.2 58.7 6700 9000 0.878 94 121 1 7017C
130 22 1.1 0.6 56.9 55.7 5700 8000 0.877 94 121 1 7017AC
130 22 1.1 0.6 48.9 48.2 4300 5300 1.02 94 121 1 7017B
150 28 2 1 95.3 79.3 6000 8500 1.74 95 140 2 7217C
150 28 2 1 90.7 75.6 4000 4900 1.74 95 140 2 7217 AC
150 28 2 1 78.9 66.3 3600 4400 2.02 95 140 2 7217B
180 41 3 1.1 170 143 5500 7500 4.29 97 168 2.5 7317C
180 41 3 1.1 164 137 3500 4400 4.28 97 168 2.5 7317AC
180 41 3 1.1 145 122 3200 4000 4.93 97 168 2.5 7317B


Application

  • Electric motors
  • machine tools
  • automobiles
  • precise devices
  • home ppliances
  • chemical machineries
  • general machineries
  • agricultural machineries
