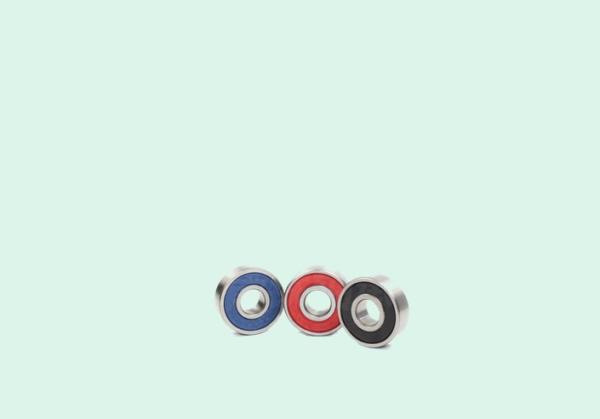

ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
Specifications
Brand Name :
DCM
Model Number :
OPEN，-Z，-RS，-RZ，-RSR
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
Negotiated
Delivery Time :
Negotiated
Packaging Details :
Industrial Packing or Single Box, Cartoon,Pallet
Material :
GCr15
Precision Rating :
P0 P6 P5 ABEC-1 ABEC-3 ABEC-5
Clearance :
C0 C2 C3 C4 C5 C9
Vibration :
Z1 Z2 Z3 Z4 V1 V2 V3 V4
Number of row :
Single Row
Lubrication :
Grease or oil
Cage :
Steel Cage,Nylon,Brass
Feature :
Long Life,High Speed,low noise
Description

DCM Bearings For Household appliances Low Noise Low Vibration High Speed Long Life

Features

The household appliances include air conditioning, washing machine, refrigerator, air purifier, lampblack machine, etc. working under a bad working environment with dust, humidity, high and low temperature. Despite of relatively high working speed, they require the low noise of bearings, and reliable sealing performance. To meet the requirements of harsh working conditions, We provides various rolling bearings and technical solutions for different sealing structures.

Product Specification

Part NO. Boundary dimension(mm) Basic load ratings (lbf) Weight(Ib) Limiting speed (min-1)
d D B Dynamic(Cr) Static(Cor) KG Grease Oil
604 4 12 4 0.2 0.36 0.0021 36000 44000
605 5 14 5 0.2 0.505 0.0035 32000 40000
606 6 17 6 0.3 0.865 0.006 30000 38000
607 7 19 6 0.3 0.91 0.008 28000 36000
608 8 22 7 0.3 1.4 0.012 26000 34000
609 9 24 7 0.3 1.45 0.014 24000 32000
6000 10 26 8 0.3 1.96 0.019 22000 30000
6001 12 28 8 0.3 2.39 0.021 19000 26000
6002 15 32 9 0.3 2.83 0.03 18000 24000
6003 17 35 10 0.3 3.35 0.039 17000 22000
6004 20 42 12 0.6 5.05 0.069 15000 19000
6005 25 47 12 0.6 5.85 0.08 14000 18000
6006 30 55 13 0.6 8.3 0.116 12000 15000
6007 35 62 14 1 10.3 0.115 10000 14000
624 4 13 5 1.15 0.4 0.0032 36000 45000
625 5 16 5 1.76 0.68 0.005 32000 40000
626 6 19 6 2.34 0.885 0.008 28000 36000
627 7 22 7 3.35 1.4 0.013 26000 34000
628 8 24 8 4 1.59 0.017 24000 32000
629 9 26 8 4.55 1.96 0.019 22000 30000
6200 10 30 9 5.1 2.39 0.032 20000 26000
6201 12 32 10 6.82 3.05 0.037 19000 24000
6202 15 35 11 7.65 3.72 0.045 18000 22000
6203 17 40 12 9.58 4.78 0.065 16000 20000
6204 20 47 14 12.8 6.65 0.106 14000 18000
6205 25 52 15 14 7.85 0.128 13000 15000
6206 30 62 16 19.5 11.3 0.199 11000 13000
6207 35 72 17 25.7 15.4 0.288 9200 11000
6300 10 35 11 8.2 3.5 0.053 18000 24000
6301 12 37 12 9.7 4.2 0.06 17000 22000
6302 15 42 13 11.4 5.45 0.082 16000 20000
6303 17 47 14 13.5 6.55 0.115 15000 19000
6304 20 52 15 15.9 7.9 0.144 14000 17000
6305 25 62 17 17.22 11.39 0.2193 10000 13000
6306 30 72 19 20.77 14.17 0.3498 8000 10000

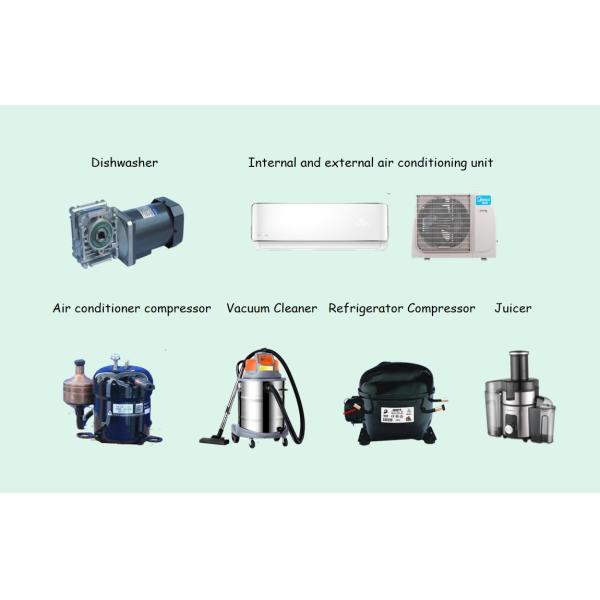

Application

  • Air Conditioner
  • Washing Machine
  • Refrigerator
  • Vacuum Cleaner
  • Fan
  • Range Hood
  • Dishwasher
  • Air Purifier
  • Bathtub Pump

ABEC-3 Angular Contact Ball Bearings ,608ZZ 608 2RS 6005 2RS
